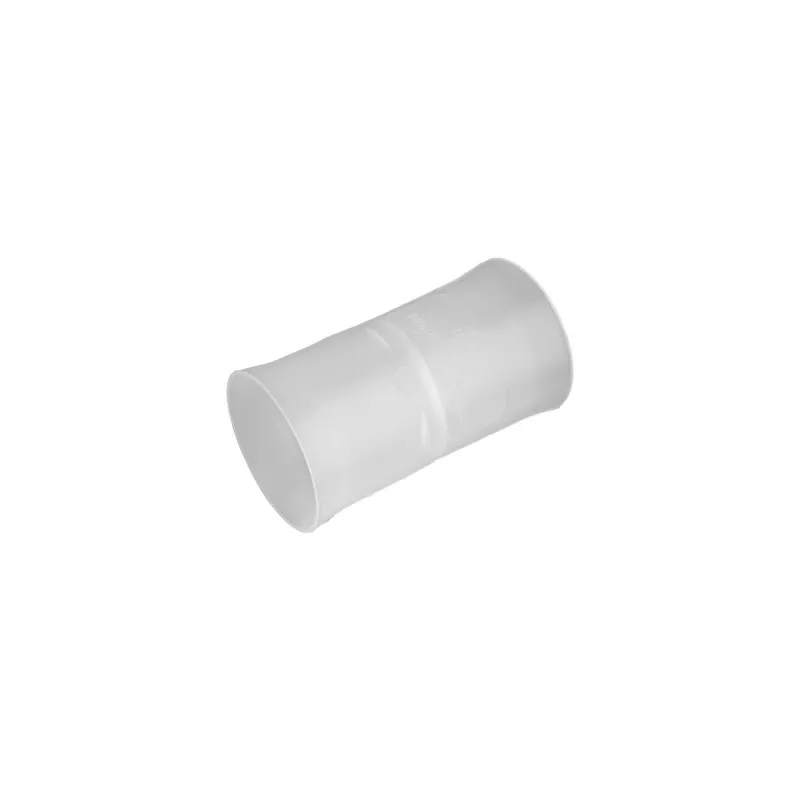

FRAENKISCHE ROHRWERKE GEBR. KIRCHNER GMBH & CO. KG manguito de acoplamiento transparente Kabuflex 63 mm (19250063)

This transparent coupling sleeve for the Kabuflex R plus conduit system allows visual confirmation of the connection between conduit sections. The push-fit design installs without tools and seals to IP67 when used with appropriate sealing rings.

Highlights

• Transparent body for easy inspection of the joint
• Tool-free push-fit installation
• Compatible with Kabuflex R plus conduits, nominal diameter 63 mm
• UV-stabilized polyethylene, halogen-free
• Temperature range -5°C to +90°C

In daily use

The sleeve slides over the conduit ends and holds them in alignment. Its transparency lets installers verify that the conduit is fully seated before backfilling. The material resists impact and common chemicals, making it suitable for underground cable protection.

Full specifications

• Product type: Conduit coupling / sleeve
• Material: Polyethylene (PE)
• Colour: Transparent
• Nominal diameter: 63 mm
• Compatible conduit system: Kabuflex R plus
• Connection type: Push-fit / slip-on
• Sealing capability: IP67 with appropriate sealing rings
• Operating temperature range: -5°C to +90°C
• UV resistance: UV-stabilized
• Halogen-free: Yes
• Impact resistance: High
• Chemical resistance: Good against acids, alkalis, and common chemicals
• Installation: Tool-free
• Special feature: Transparent for visual connection inspection

Final note

A reliable transparent coupling for Kabuflex conduit installations, combining ease of use with durable performance.
