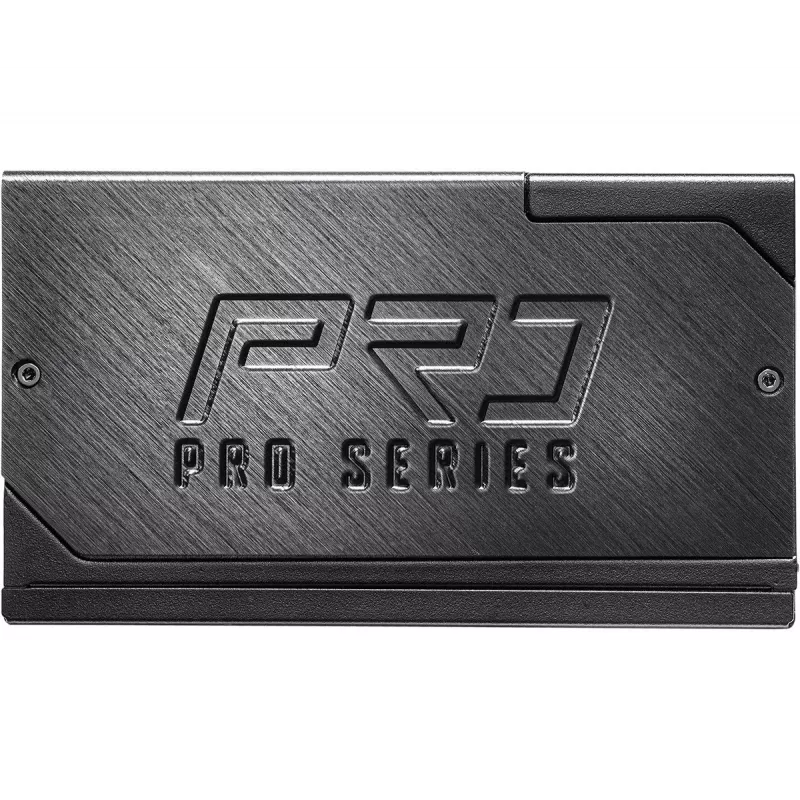

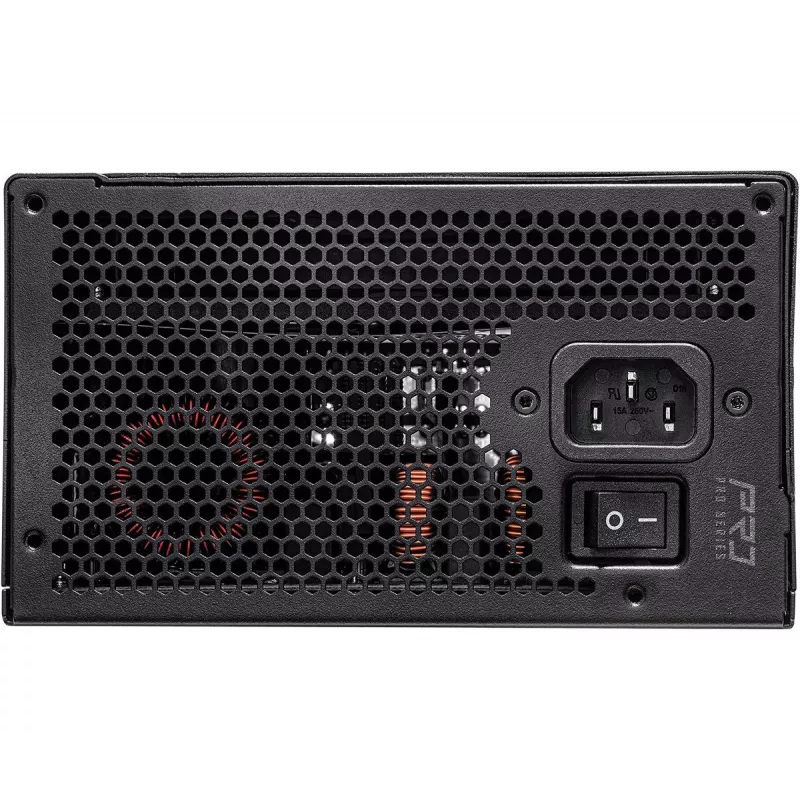

Fuente de alimentación ASRock PRO-M1000G 1000W 80 PLUS Gold totalmente modular ATX

The ASRock PRO-M1000G is a high-performance 1000W power supply designed for demanding gaming and workstation builds. With 80 PLUS Gold certification and fully modular cabling, it delivers efficient, stable power while simplifying cable management. Built with 100% Japanese 105°C capacitors and a 135mm fluid dynamic bearing fan, this PSU ensures long-term reliability and quiet operation.

Advantages

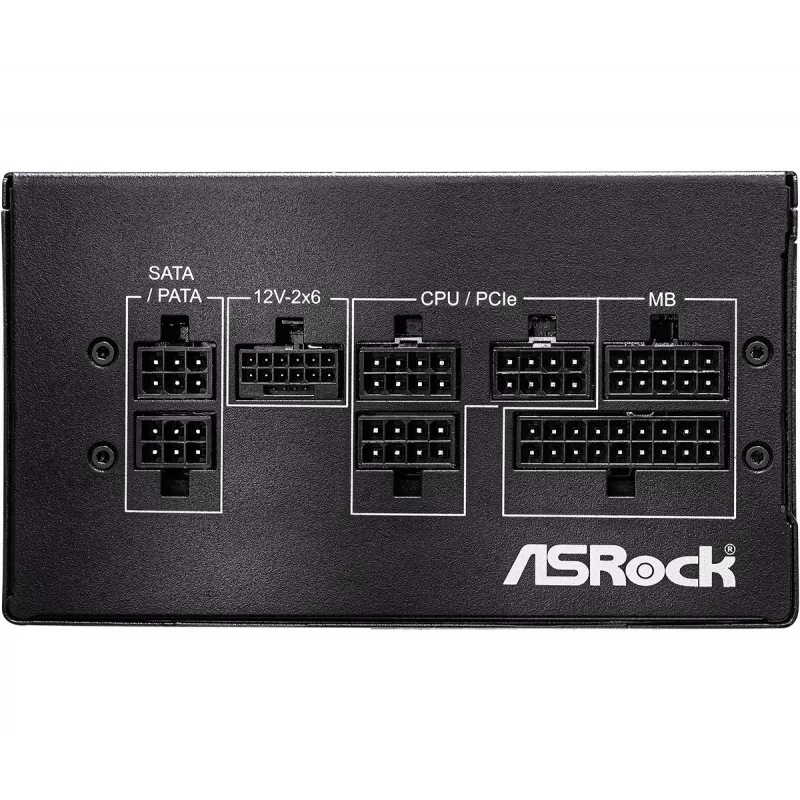

Fully modular design allows you to connect only the cables you need, reducing clutter and improving airflow. The single +12V rail provides consistent power delivery to high-end components, while comprehensive protections (OVP, OPP, SCP, OCP, UVP, OTP, NLO, SIP) safeguard your system. With a 10-year warranty and MTBF of 100,000 hours, the PRO-M1000G is built to last.

Suitable for

• High-end gaming PCs with multiple GPUs
• Workstations for content creation and rendering
• Enthusiast builds requiring clean cable management
• Systems demanding stable power under heavy load

Key specifications

• Total Power: 1000W
• Efficiency: 80 PLUS Gold
• Form Factor: ATX
• Modularity: Fully Modular
• Fan: 135mm Fluid Dynamic Bearing (FDB)
• PFC: Active PFC
• Input Voltage: 100-240V AC
• Input Frequency: 50/60 Hz
• Main Power Connector: 1x 24-pin ATX
• CPU Power Connectors: 2x 4+4-pin EPS/ATX12V
• PCIe Power Connectors: 6x 6+2-pin PCIe
• SATA Power Connectors: 12x SATA
• Peripheral Power Connectors: 4x 4-pin Molex
• Capacitors: 100% Japanese 105°C
• +12V Rail Design: Single Rail
• Operating Temperature: 0 - 50 °C
• Safety Certifications: CE, FCC, TUV, cTUVus, RCM, CCC, EAC, UKCA, CB
• Warranty: 10 Years

Recommendations

For optimal performance, pair the PRO-M1000G with a high-end motherboard and graphics card. Ensure your case supports ATX power supplies. The fully modular cables make installation easy even in compact cases.
