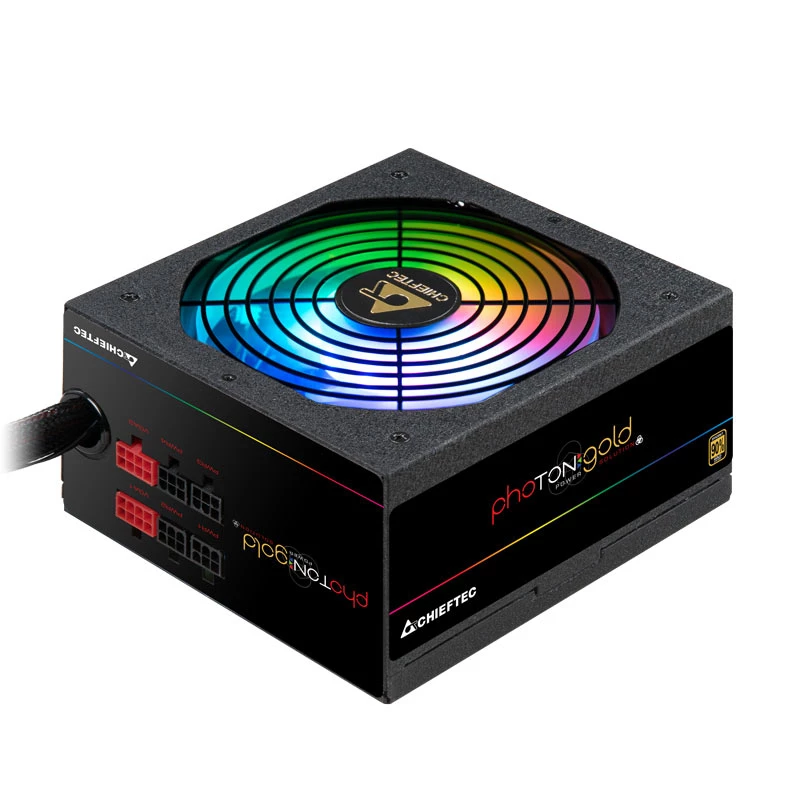

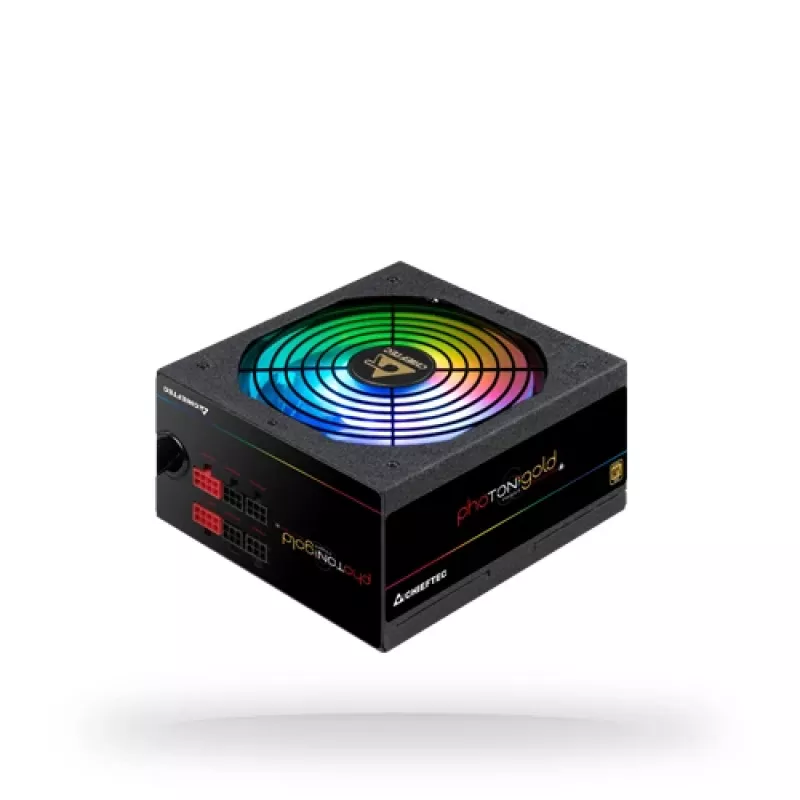

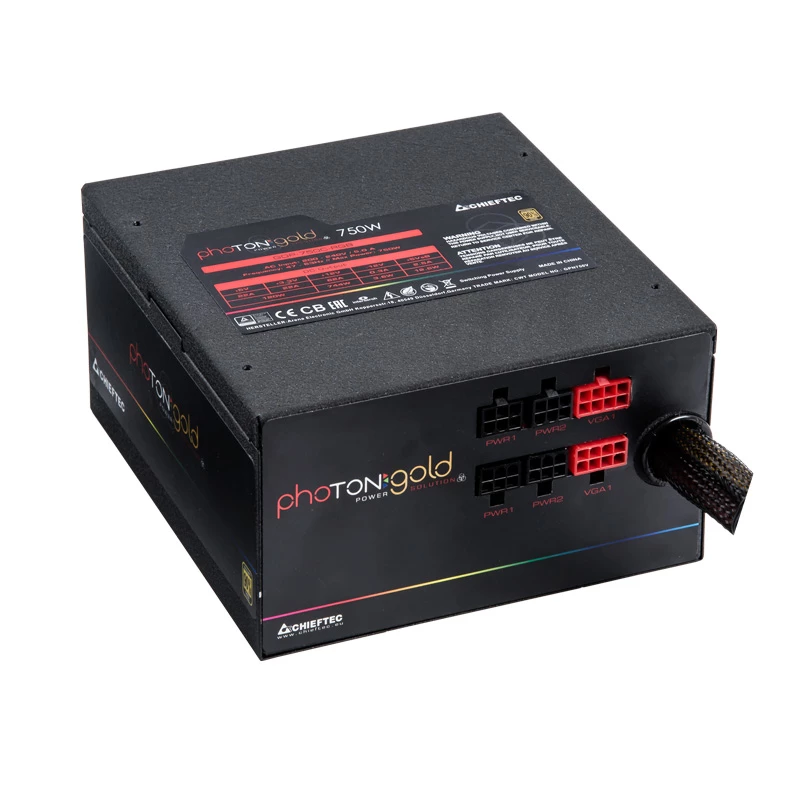

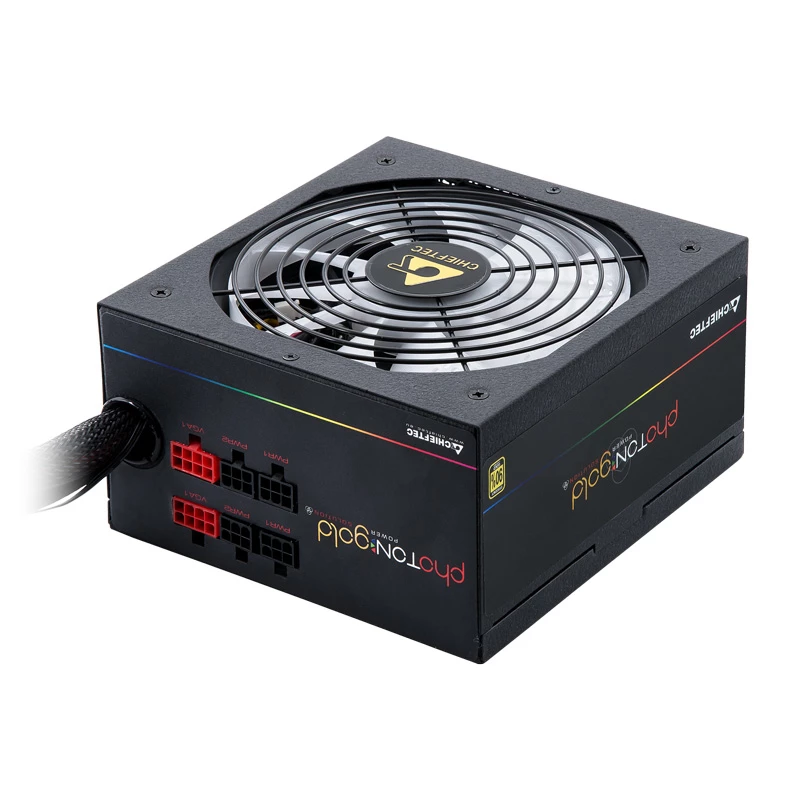

Fuente de alimentación Chieftec Photon GOLD 750 W 20+4 pines ATX PS/2 negra

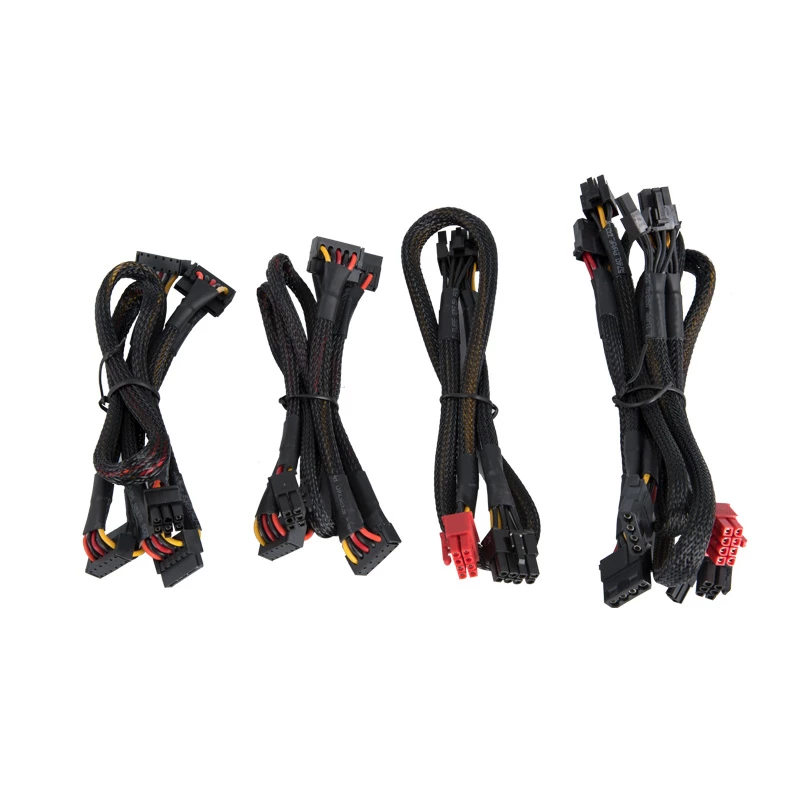

The Chieftec Photon GOLD 750 W power supply unit provides 750 W continuous power for gaming and enthusiast PCs, supporting ATX motherboards with a 20+4 pin connector. Designed in a PS/2 form factor and finished in black, the PSU features a single active fan for cooling, extra-long cables and an efficiency of 90% at 230 V.

Advantages

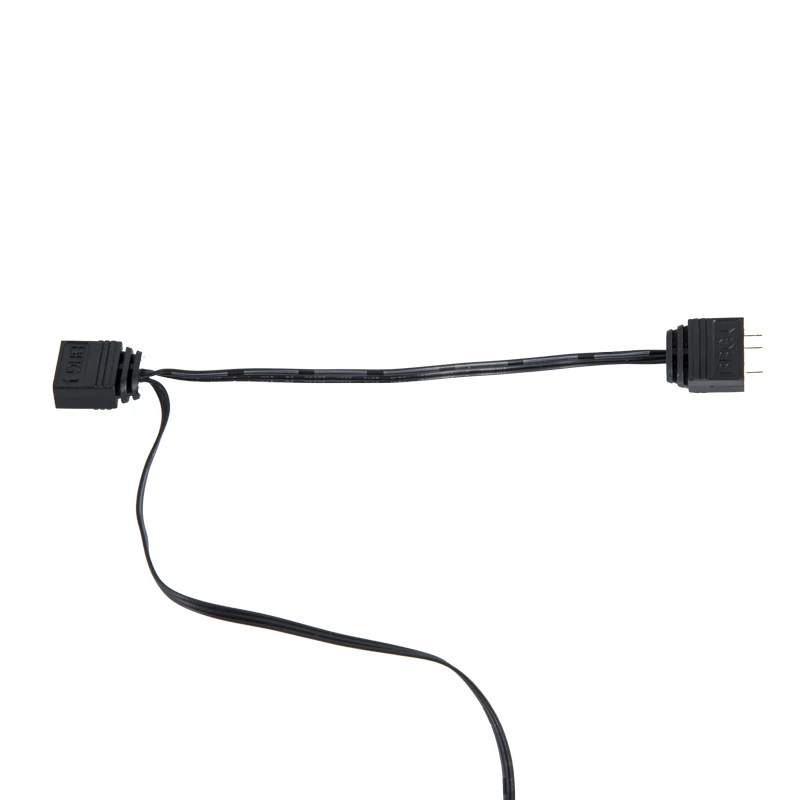

The Photon GOLD series combines high efficiency and extended cable lengths with integrated and motherboard-controlled RGB lighting via a +5V addressable LED connector compatible with ASUS AURA SYNC, MSI MYSTIC LIGHT SYNC, ASROCK POLYCHROME SYNC and GIGABYTE RGB FUSION. Built-in presets and a rear-panel button provide multiple independent lighting modes, while a rear toggle switch selects between the PSU’s internal effects and motherboard RGB control. The unit offers stable 750 W output and a compact footprint (150 × 160 × 87 mm).

Suitable for

• Gaming desktop PCs requiring a 750 W power supply
• Systems where RGB lighting synchronization with motherboard software is desired
• High-performance builds needing reliable continuous power and 90% efficiency

Key specifications

• Total power: 750 W
• Efficiency: 90% @ 230 V
• Motherboard connector: 20+4 pin ATX
• Form factor: PS/2
• Cooling: single active fan
• Dimensions (W × D × H): 150 × 160 × 87 mm
• Colour: Black
• MPN: GDP-750C-RGB
• EAN: 0753263075901

How to use

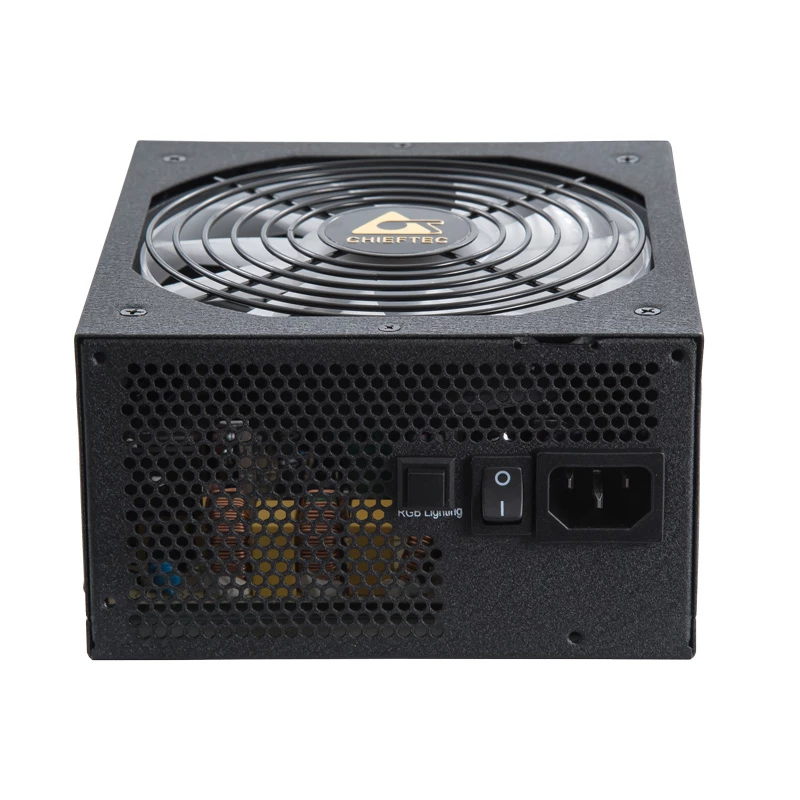

Install the PSU into a compatible ATX case following standard safety procedures: disconnect mains power, mount the unit securely, and connect the 20+4 pin ATX cable to the motherboard along with SATA and Molex connectors to storage and peripherals as required. Use the rear-panel toggle switch to choose between motherboard RGB control and the PSU’s internal lighting modes, and press the rear button to cycle through predefined lighting effects when using internal control.

Recommendations

For reliable operation, ensure your system’s total power draw stays within the 750 W rating and that the PSU has adequate airflow. When synchronizing RGB with motherboard software, consult your motherboard manual to enable 5V ARGB headers and compatible synchronization settings.
