Fuente de alimentación conmutada AUPS-40-120-OF ATTE

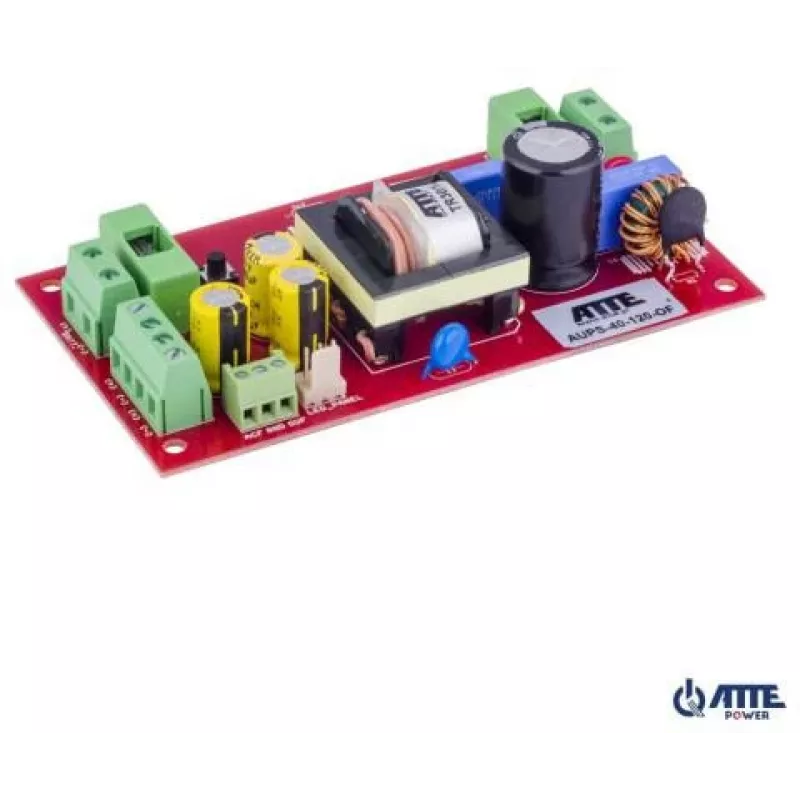

The ATTE AUPS-40-120-OF is a high-performance switched-mode power supply (SMPS) designed for reliable and efficient power conversion. With an open-frame form factor, it is ideal for integration into various electronic devices and systems. This power supply delivers a stable 12V DC output with 40W power, ensuring consistent performance for your applications.

Advantages

High efficiency of >87% reduces energy loss and heat generation. Compact open-frame design allows for flexible mounting in tight spaces. Comprehensive protection features including overload, short circuit, and over voltage protection ensure safe operation. Wide input voltage range (90-264V AC) makes it suitable for global use.

Suitable for

• Industrial control systems
• LED lighting applications
• Telecommunications equipment
• Embedded systems
• Security and surveillance devices

Key specifications

• Power Supply Type: Switched-Mode (SMPS)
• Form Factor: Open Frame
• Input Voltage: 90-264V AC
• Input Frequency: 47-63 Hz
• Output Voltage: 12V DC
• Output Power: 40W
• Output Current: 3.33A
• Efficiency: >87%
• Protection: Overload, Short Circuit, Over Voltage
• Ripple & Noise: <120mVp-p
• Isolation Voltage: 3000V AC
• Operating Temperature: -10°C to +50°C
• Cooling: Free Air Convection
• Mounting: Screw Mount
• Certifications: CE, RoHS
• MTBF: >50,000 hours

Recommendations

For optimal performance, ensure adequate ventilation and follow the manufacturer's installation guidelines. This power supply is designed for professional use and should be installed by qualified personnel.
