Fuente de alimentación de vídeo ACO PS45-15-PRO-13 DIN 15V, 3A

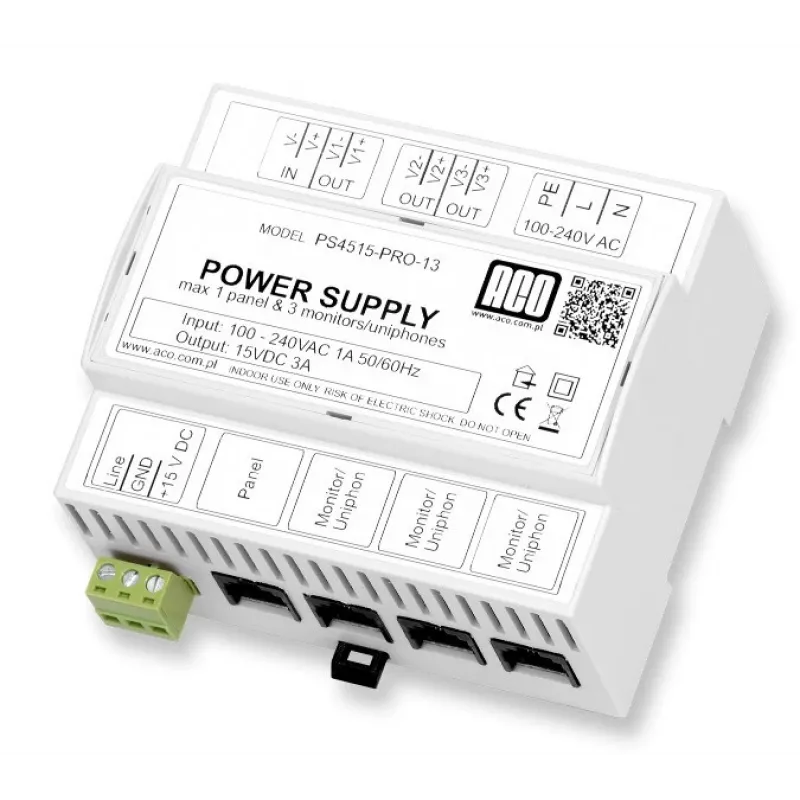

The ACO PS45-15-PRO-13 is a professional DIN rail mountable video power supply delivering 15V DC at 3A (45W). Designed for security and CCTV systems, it provides stable, regulated power with comprehensive protection features. Its compact plastic housing and screw terminal connections make installation straightforward in control cabinets.

Advantages

High efficiency >85% reduces energy waste and heat generation. Built-in protections against overload, short circuit, over voltage, and over temperature ensure reliable operation and equipment safety. The green LED power indicator offers quick visual status confirmation.

Suitable for

• Video surveillance cameras and DVRs requiring 15V DC
• Industrial automation and control systems
• Security system installations on DIN rails

Key specifications

• Input: 100-240V AC, 50/60 Hz
• Output: 15V DC, 3A, 45W
• Mounting: DIN Rail (TS-35/7.5 or TS-35/15)
• Efficiency: >85%
• Protection: Overload, Short Circuit, Over Voltage, Over Temperature
• Operating Temperature: -20°C to +50°C
• Cooling: Free Air Convection
• Connection: Screw Terminals
• Housing Material: Plastic (PC/ABS)
• Ripple & Noise: <150mVp-p
• Certifications: CE, RoHS

Recommendations

For optimal performance, use with compatible 15V DC devices and ensure proper ventilation. The DIN rail mounting simplifies integration into existing setups.
