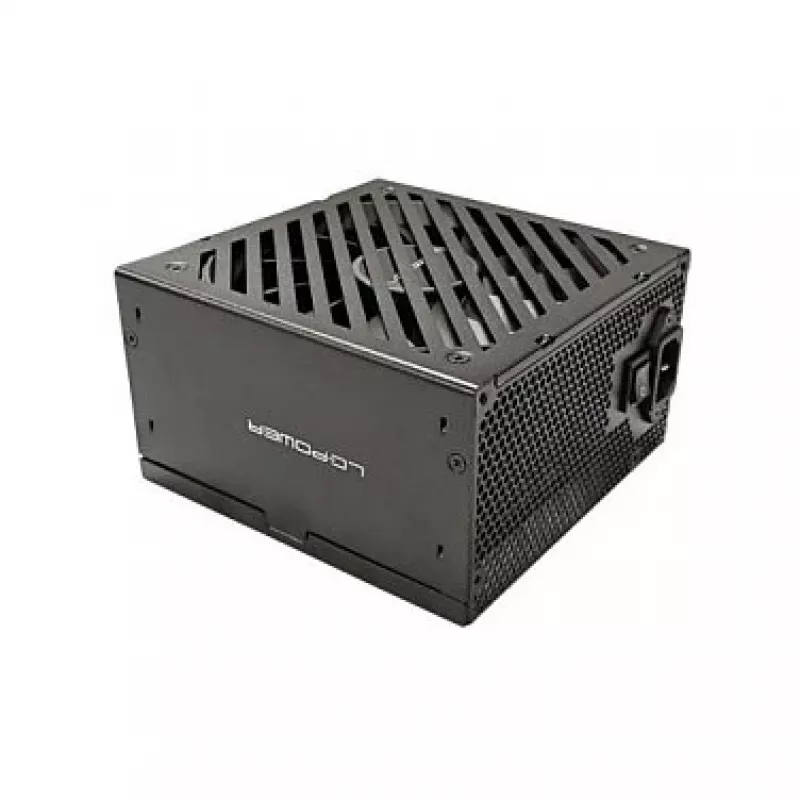

Fuente de alimentación LC-Power 750W Integrator Pro ATX V3.1

The LC-Power Netzteil 750W Integrator Pro ATX V3.1 is a 750-watt power supply unit designed for desktop systems that conform to the ATX V3.1 standard. Certified with 80+ Bronze efficiency, it delivers stable DC power for CPUs, GPUs and other internal components while meeting current compatibility requirements for modern motherboards. Integrated protection circuits offer over-voltage protection, short-circuit protection and related safeguards to maintain system stability and protect hardware from electrical faults.

Advantages

This power supply combines a reliable 750W continuous output with 80+ Bronze efficiency for balanced performance and energy use. Compliance with the ATX V3.1 standard ensures compatibility with contemporary PC platforms. Built-in protection features help prevent damage from electrical irregularities, and the design supports common connector types used in standard desktop builds.

Suitable for

• Mid-range to high-performance desktop PCs requiring up to 750W of continuous power
• Systems built on modern ATX V3.1 motherboards
• Workstations or gaming rigs with standard PSU connector requirements

Key specifications

• Total power output: 750W
• Efficiency rating: 80+ Bronze
• Form factor: ATX V3.1 compatible
• Protection features: over-voltage protection and short-circuit protection

How to use

Install the LC-Power 750W Integrator Pro into a compatible ATX V3.1 case, ensuring the unit is oriented to match the case airflow and that all mounting points are secured. Connect the main 24-pin motherboard connector and the required CPU and peripheral power connectors to the corresponding components. Verify that cable routing does not obstruct fans or other cooling paths. After all connections are confirmed, power on the system and monitor voltages during initial boot to ensure stable operation.

Recommendations

For reliable operation, use this power supply within its rated load and maintain adequate case ventilation. Match cable connectors to component requirements and avoid modifying internal wiring. If using high-power graphics cards or multiple drives, verify total system power draw remains below 750W including peak loads. In environments prone to electrical disturbances, consider adding a surge protector or UPS to complement the unit's internal protections.
