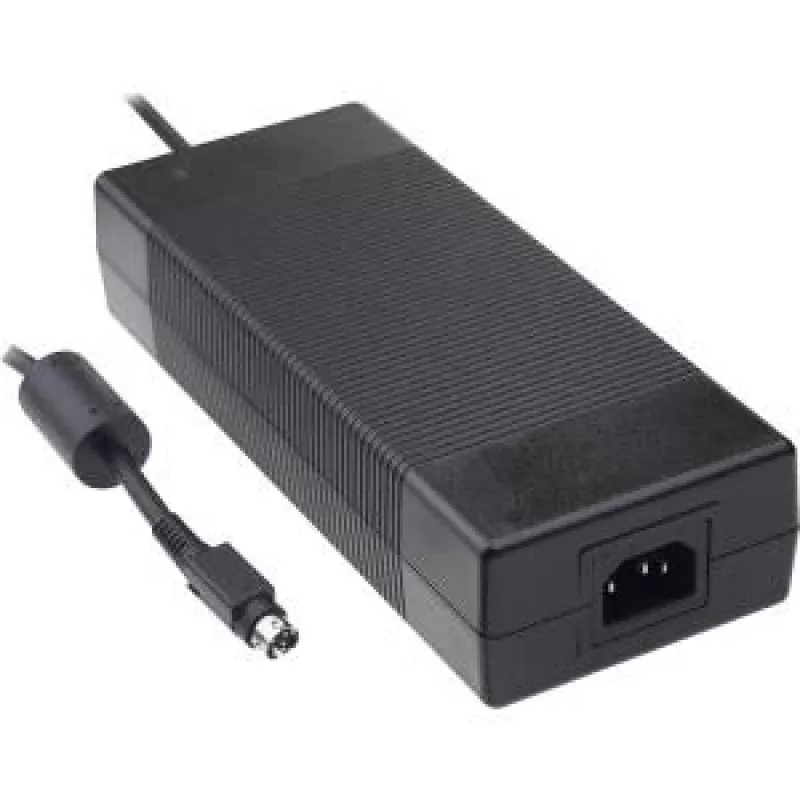

Fuente de alimentación mean well GST220A48-R7B, 220 W, salida 48 V, entrada 85–264 V, RoHS, 85×210×46 mm

mean well GST220A48-R7B is an AC-DC industrial desktop adapter that provides a 48 V DC output at up to 3.34 A (220 W) from a universal 85–264 V AC input. The adapter includes PFC and a 3-pole IEC320-C14 AC inlet and has compact dimensions of 85×210×46 mm, suitable for desk placement or equipment mounting. The unit is RoHS compliant and is supplied in packs of 12.

Advantages

The GST220A48-R7B delivers a stable 48 V, 220 W output with power-factor correction for improved efficiency and reduced mains distortion. Its universal AC input (85–264 V) supports use in varied supply environments, while the compact desktop form factor and IEC320-C14 inlet simplify installation. RoHS compliance ensures adherence to common environmental standards.

Suitable for

• Industrial control equipment
• Communication devices and networking equipment
• 48 V electronic systems requiring a 220 W external power supply
• Bench-top or small equipment installations where a compact desktop adapter is needed

Key specifications

• Model: GST220A48-R7B
• Output: 48 V DC, 3.34 A (220 W)
• Input voltage: 85–264 V AC (universal)
• AC inlet: 3-pole IEC320-C14
• Dimensions: 85 × 210 × 46 mm
• Compliance: RoHS
• Package: sold in packs of 12

How to use

Connect the adapter to the AC mains using a compatible IEC320-C13 power cord and plug the 48 V DC output into the device requiring power, observing correct polarity. Ensure the input voltage falls within the 85–264 V AC range before switching on. Place the adapter on a flat, stable surface or mount it near the powered equipment with adequate ventilation and free from obstructing objects.

Recommendations

To ensure reliable operation, allow at least 5–10 cm of clearance around the adapter for ventilation, avoid exposure to moisture and excessive dust, and verify that connected equipment does not exceed the 220 W output rating. Use a properly rated IEC power cord and follow local electrical safety regulations when installing.
