Fuente de alimentación MEAN WELL GST280A24-C6P 24 V 280 W, entrada 85–264 V, RoHS, 95×220×46 mm

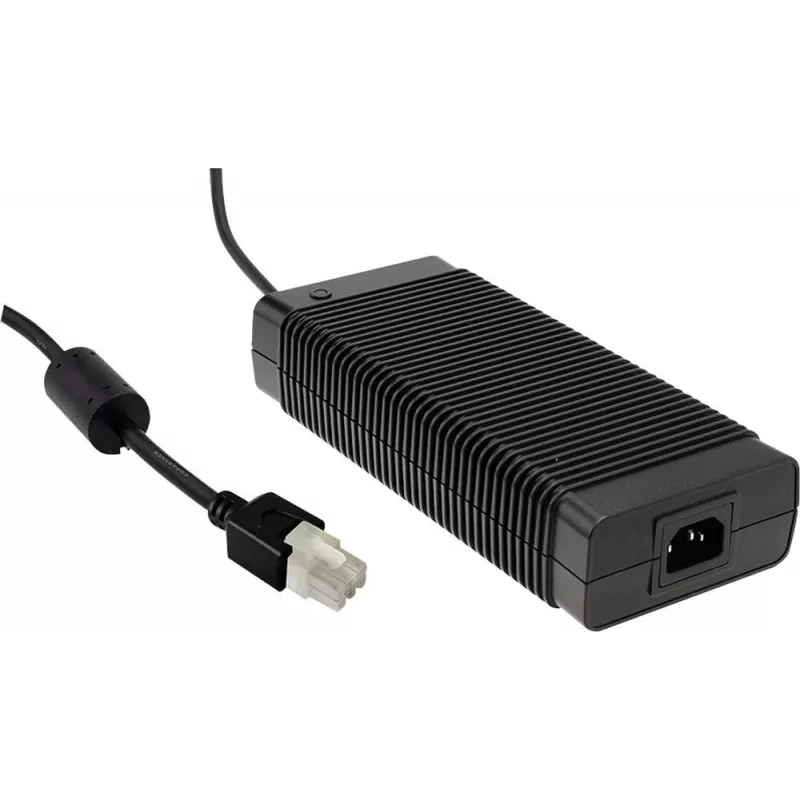

MEAN WELL GST280A24-C6P is an AC/DC industrial desktop adapter delivering 24 V DC at up to 11.67 A (280 W) from a wide AC input range of 85–264 V. The unit includes power factor correction (PFC) and a 3‑pole IEC320‑C14 AC inlet, and is designed for reliable power conversion in industrial and commercial equipment. Its compact housing (95 × 220 × 46 mm) and RoHS compliance make it suitable for installations and replacements where space and regulatory compliance matter.

Advantages

The adapter provides a stable 24 V output with up to 280 W power and built‑in PFC for improved input performance. Its wide input voltage range (85–264 V) allows use in varied mains environments. The compact desktop form factor and standard IEC320‑C14 inlet simplify integration, maintenance and replacement. Compliance with RoHS ensures restrictions on hazardous substances are met.

Suitable for

• Industrial control systems and instrumentation
• Commercial equipment and point-of-sale systems
• Replacement power supplies for compatible 24 V devices
• Small deployments and installations requiring compact adapters

Key specifications

• Model: MEAN WELL GST280A24-C6P
• Output: 24 V DC, 11.67 A (280 W)
• Input voltage: 85–264 V AC
• AC inlet: 3‑pole IEC320‑C14
• Dimensions: 95 × 220 × 46 mm
• Compliance: RoHS

How to use

Connect the adapter to the AC mains using a compatible IEC320‑C13 power cord and attach the 24 V DC output to the device according to polarity markings. Ensure the mains voltage is within 85–264 V before powering on. Mount the unit on a stable, ventilated surface and allow clearance for airflow. Follow the device manufacturer’s installation instructions when replacing an existing power supply.

Recommendations

For reliable operation, avoid enclosing the adapter in tightly sealed spaces; provide adequate ventilation and keep the unit away from heat sources and moisture. Verify compatibility with the target device’s voltage and current requirements and use appropriate fusing on the DC output when recommended by the equipment manufacturer.
