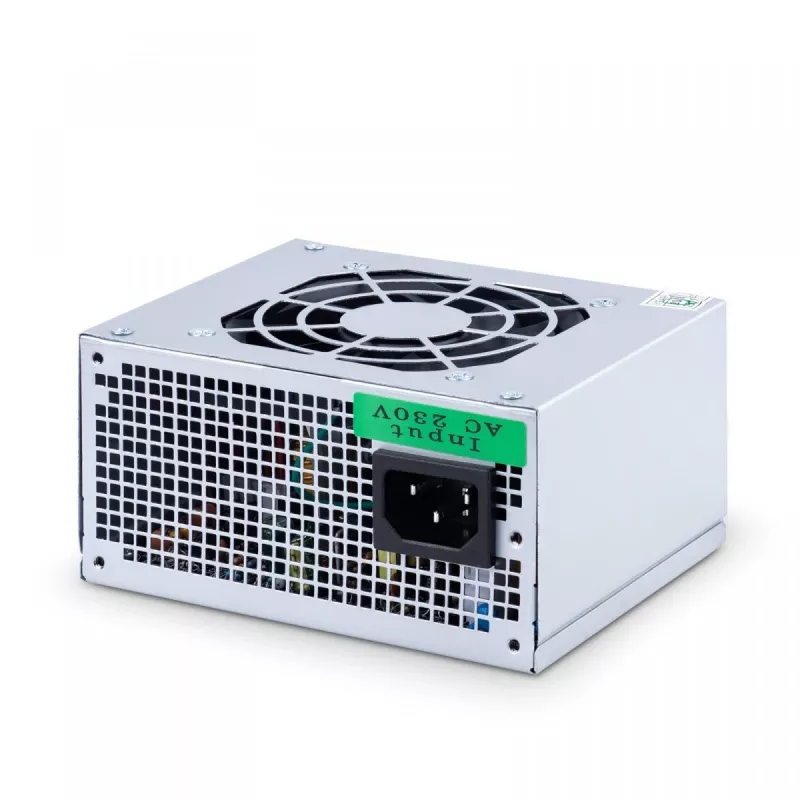

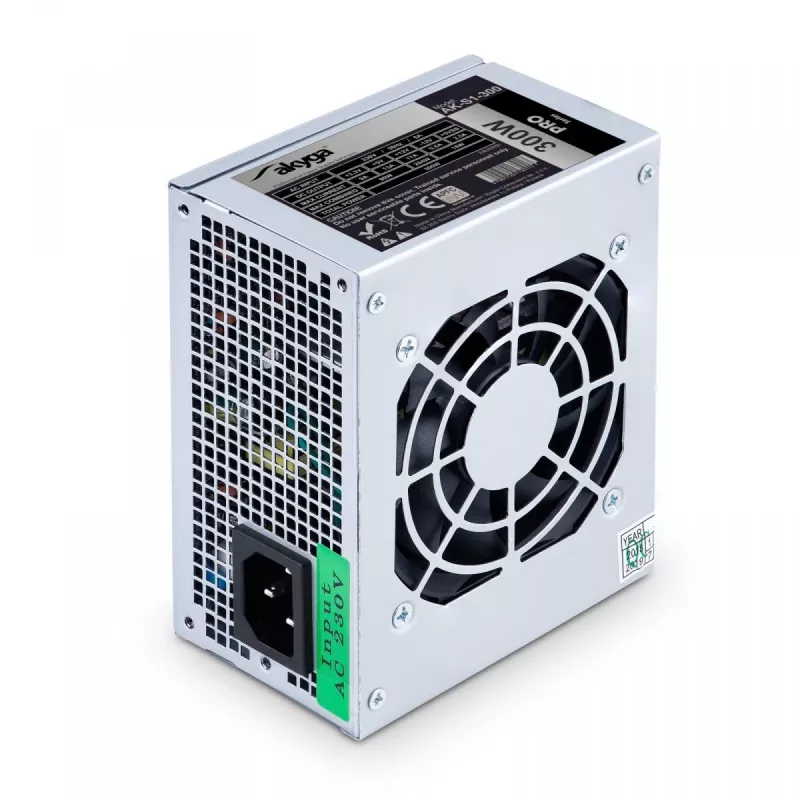

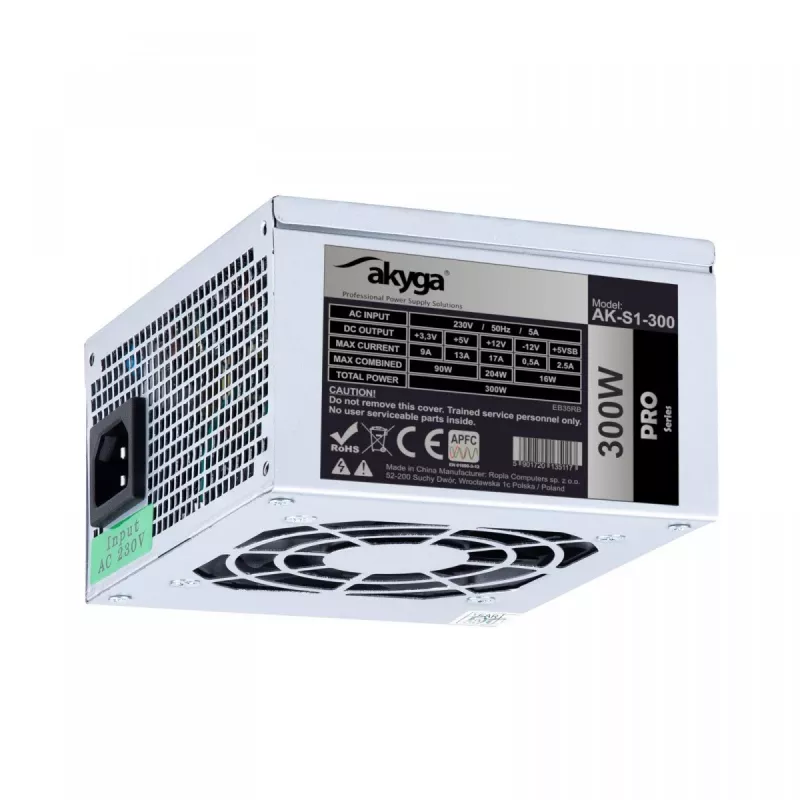

Fuente de alimentación SFX Akyga AK-S1-300 300 W, PFC pasivo, ventilador de 80 mm, negro

The Akyga AK-S1-300 is a 300 W SFX power supply designed for compact computer enclosures where space is limited. It features an 80 mm fan with automatic speed control and a passive PFC filter, and is made of galvanized steel in black.

Key features

• 300 W total power
• SFX form factor
• Passive PFC
• 80 mm fan with automatic speed control
• Non-modular cabling
• Galvanized steel construction
• Black colour
• Protections: OVP, OCP, OPP, OTP, SCP, UVP

Specifications

• Purpose: PC
• Power supply unit (PSU) form factor: SFX
• Total power: 300 W
• Peak power: 300 W
• AC input voltage: 230 V
• AC input frequency: 50 - 60 Hz
• Input current: max. 5 A
• Efficiency: 70 %
• Power Factor Correction (PFC) type: Passive
• Cooling type: Active
• Number of fans: 1 fan(s)
• Fan diameter: 80 mm
• Fan location: Top

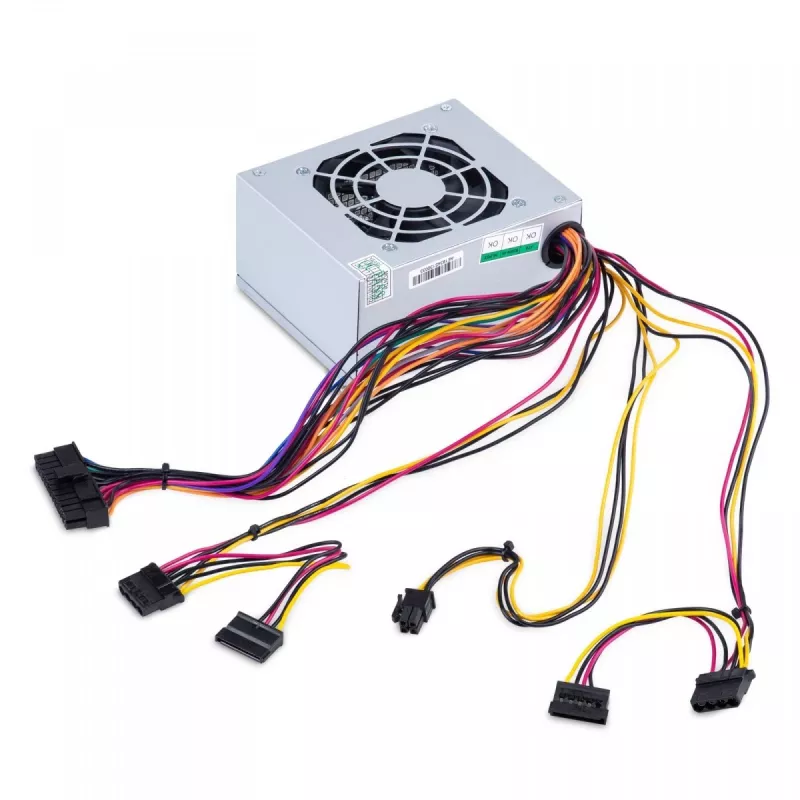

• Cabling type: Non-Modular

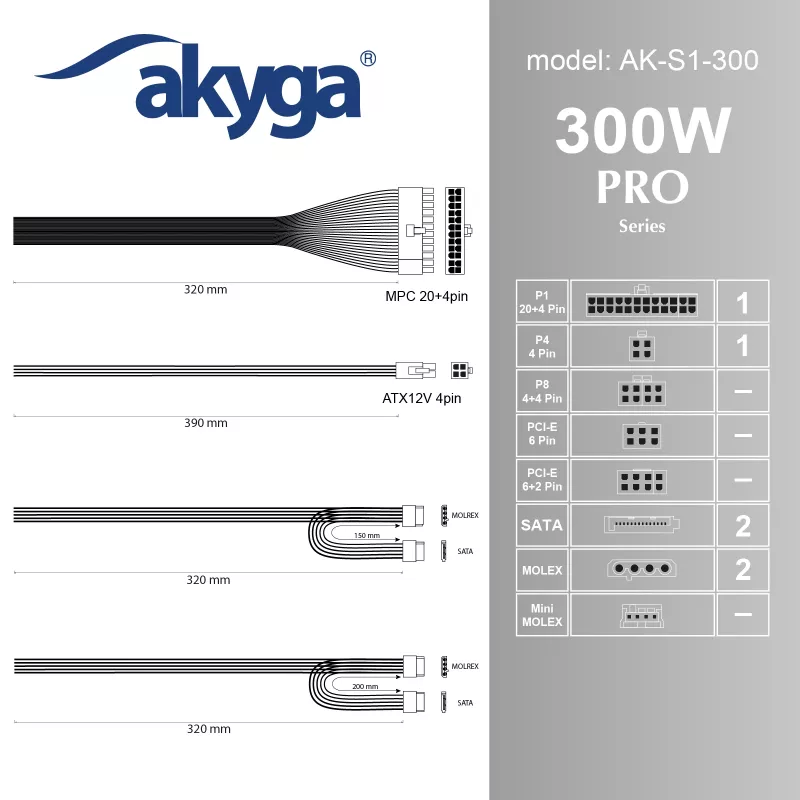

• Motherboard power connector: 20+4 pin ATX
• ATX Power connector (24-pin): Yes
• CPU P4 connector (4-pin): 1
• Number of SATA power connectors: 2
• Peripheral (Molex) power connectors (4-pin): 2
• PCI Express power connectors (6-pin): 0
• PCI Express power connectors (6+2 pin): 0
• PCI Express power connectors (8-pin): 0

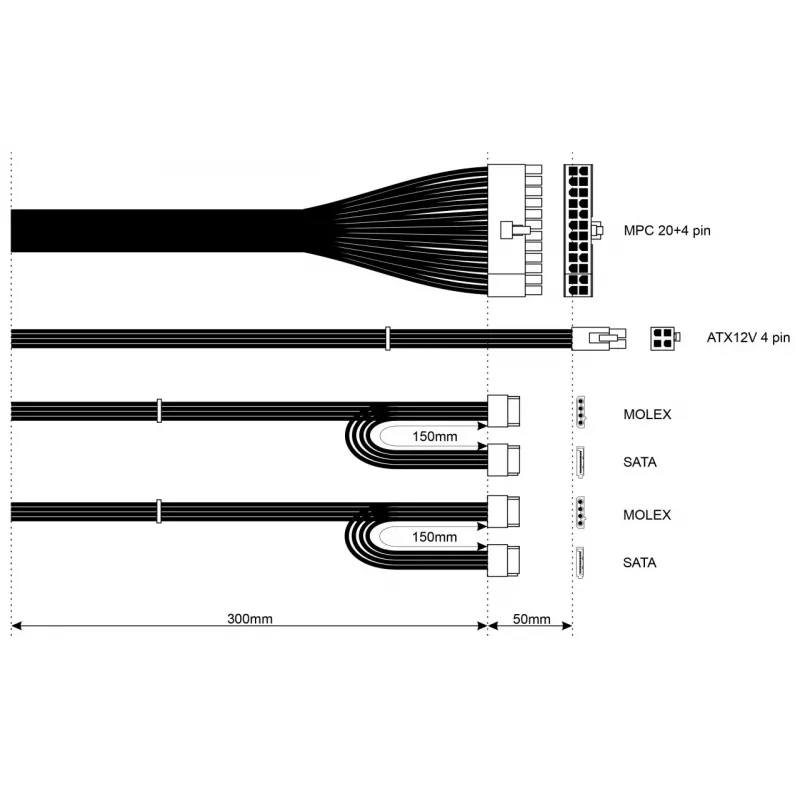

• Motherboard power cable length: 350 mm
• CPU power cable length: 400 mm
• SATA power cable length: 350 mm
• Max output current (+3.3V): 9 A
• Max output current (+5V): 13 A
• Max output current (+12V): 17 A
• Max output current (-12V): 0.5 A
• Max output current (+5Vsb): 2.5 A
• Combined power (+3.3V): 90 W
• Combined power (+5V): 90 W
• Combined power (+12V): 204 W
• Combined power (-12V): 16 W
• Combined power (+5Vsb): 16 W
• Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit
• Mean time between failures (MTBF): 100000 h
• Operating temperature (T-T): 5 - 50 °C
• Storage temperature (T-T): 0 - 60 °C
• Operating relative humidity (H-H): 0 - 60 %
• Storage relative humidity (H-H): 5 - 60 %
• Product colour: Black
• Width: 125 mm
• Depth: 63.5 mm
• Height: 100 mm
• Weight: 0.8 kg
• Certification: RoHS, REACH, CE
• Country of origin: Poland
