Fuente de alimentación Thermaltake Toughpower PF1 1200 W

The Thermaltake Toughpower PF1 ARGB 1200W Platinum (TT Premium Edition) is a fully modular power supply unit designed for high-performance desktop PCs. Delivering 1200 W continuous power (peak 1440 W) with an AC input range of 100–240 V, it combines 80 PLUS Platinum efficiency, a 140 mm Riing Duo ARGB fan with 18 addressable LEDs, and a low-profile flat black fully modular cable set. The unit includes ARGB side panels for visible lighting effects and supports synchronization with major motherboard RGB software.

Advantages

The power supply offers high energy efficiency (80 PLUS Platinum) to reduce waste heat and power consumption. It uses 100% high-quality Japanese 105 °C capacitors for improved durability and stable output, and implements strict voltage regulation (±2% on major rails) for reliable performance. The built-in Riing Duo 14 ARGB fan provides extensive lighting control with 16.8 million colors while the Smart Zero Fan feature reduces audible noise under light loads. Fully modular flat black cables simplify installation and improve internal airflow.

Suitable for

• High-end gaming PCs and enthusiast builds
• Workstations that require stable +12 V delivery
• Systems with ARGB lighting synchronized to motherboard software (5V addressable header)
• Overclocked systems and multi-GPU configurations

Key specifications

• Total power: 1200 W (peak 1440 W)
• 80 PLUS certification: 80 PLUS Platinum

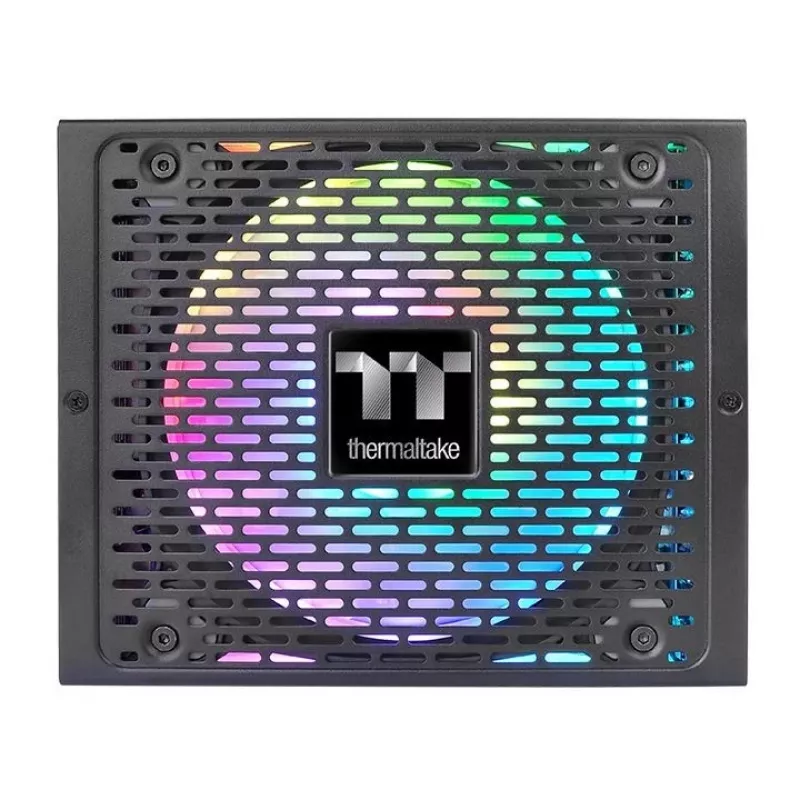

• Fan: 140 mm Riing Duo ARGB with 18 addressable LEDs

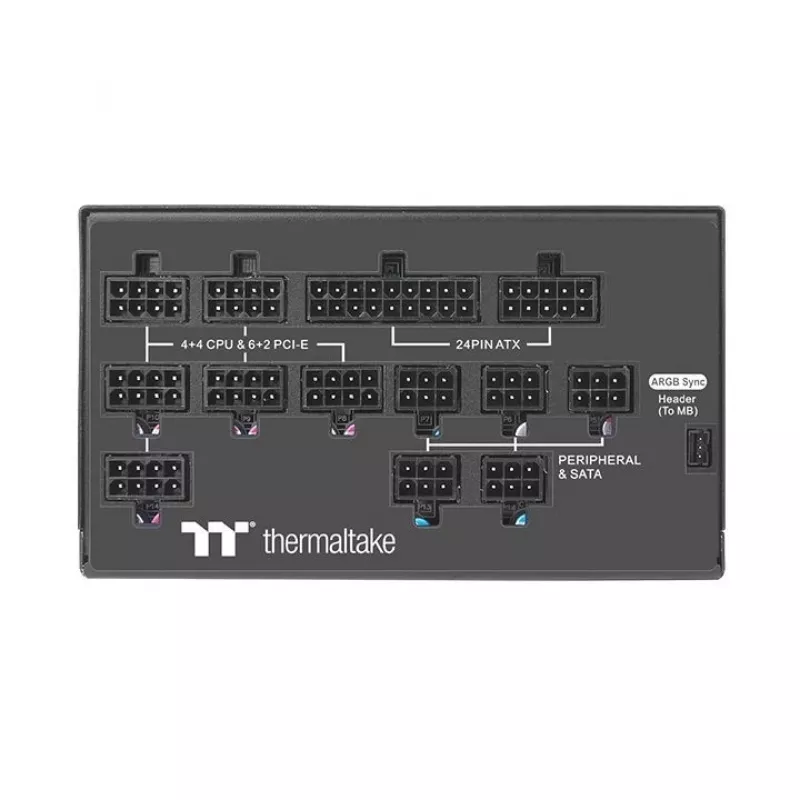

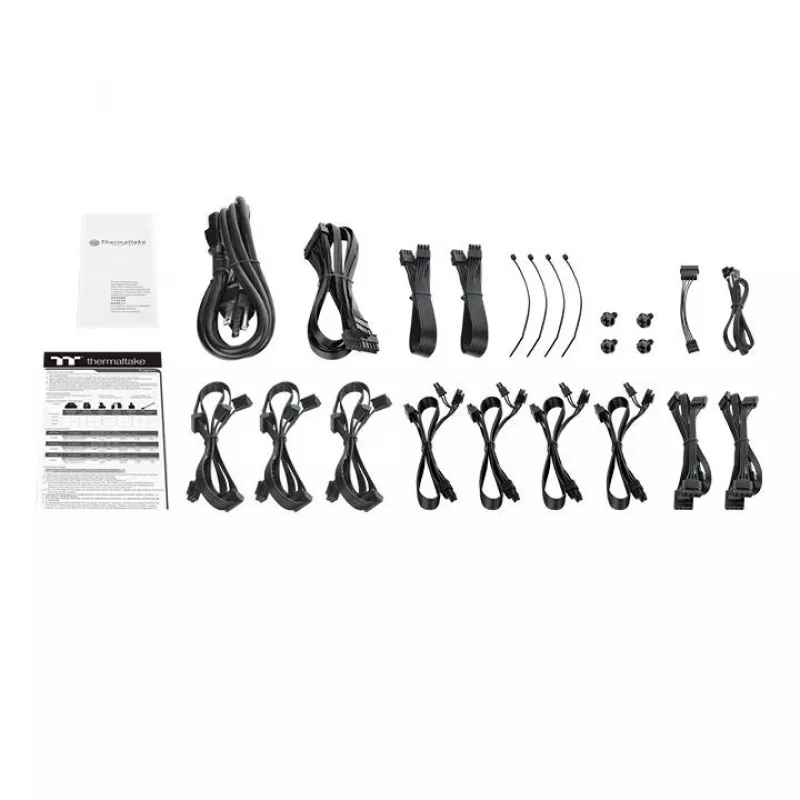

• Modularity: Fully modular, low-profile flat black cables
• Voltage regulation: ±2% on major rails
• Capacitors: 100% Japanese 105 °C capacitors
• Dimensions: 350 mm x 230 mm x 160 mm
• Product colour: Black
• Weight: 4 kg

How to use

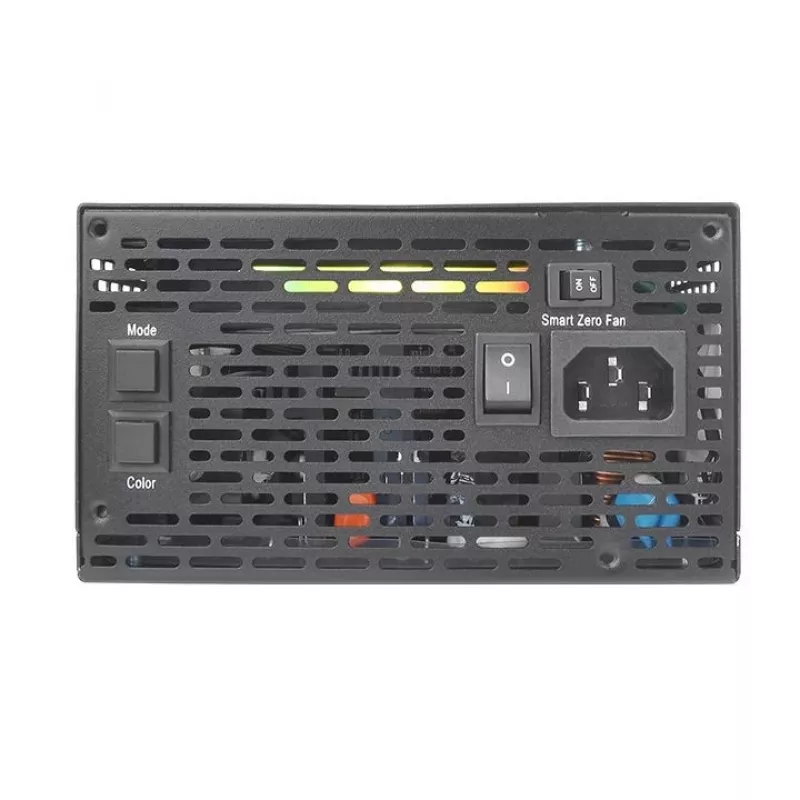

Install the Toughpower PF1 1200 W into a compatible ATX case and connect the fully modular cables to the motherboard, GPU(s) and peripherals according to your system layout. If your motherboard has a 5V addressable RGB header, connect the ARGB cable to enable lighting control via ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync or ASRock Polychrome. Use the fan mode switch on the rear panel to select Smart Zero Fan operation or constant fan spin based on your noise preference.

Recommendations

For optimal performance and longevity, ensure adequate case ventilation, connect only the required modular cables, and verify motherboard compatibility for 5V addressable RGB control. Avoid sustained operation above rated loads and keep the PSU firmware/BIOS and motherboard RGB software up to date when using synchronization features.
