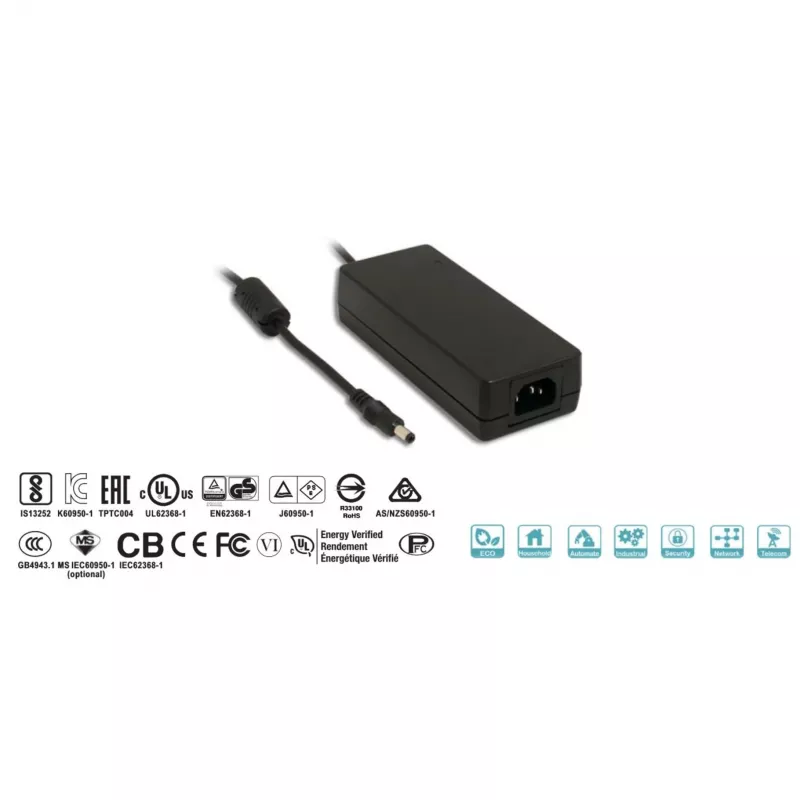

Fuente de alimentación SYNERGY21 Mean Well GST60A12-P1J - 12V 60W

The SYNERGY21 Mean Well GST60A12-P1J is a high-performance AC-to-DC power supply delivering 12V DC output at 60W. Designed for universal input (90-264 VAC), it features a compact form factor with an IEC320-C14 inlet and a 2.1x5.5mm barrel plug connector. This power supply meets Level VI energy efficiency standards and includes comprehensive protection features.

Advantages

High efficiency up to 90.5% reduces energy waste and heat generation. Universal AC input allows worldwide use. Robust protection against overload, overvoltage, and short circuit ensures reliable operation. Compact design saves space in tight installations.

Suitable for

• Industrial equipment requiring 12V DC power
• LED lighting systems
• Security cameras and surveillance equipment
• Networking devices such as switches and routers
• Home automation and IoT devices

Key specifications

• Input Voltage: 90-264 VAC
• Input Frequency: 47-63 Hz
• Output Voltage: 12 VDC
• Output Current: 5 A
• Rated Power: 60 W
• Efficiency: 90.5% (at 230VAC full load)
• No Load Power Consumption: <0.075 W
• Ripple & Noise: 120 mVp-p
• Line Regulation: ±0.5%
• Load Regulation: ±0.5%
• Overload Protection: 105-150% (Hiccup mode, auto-recovery)
• Over Voltage Protection: 110-140% (Shut down, auto-recovery)
• Short Circuit Protection: Yes (Hiccup mode, auto-recovery)
• AC Inlet: IEC320-C14
• DC Output Connector: 2.1x5.5mm Barrel Plug (Center Positive)
• Operating Temperature: -30 to +70°C
• Safety Standards: UL62368-1, TUV EN62368-1, EAC, CB, CE, FCC
• Energy Efficiency Level: Level VI
• MTBF: >100K hrs (MIL-HDBK-217F)

Recommendations

Ensure the DC plug polarity matches your device (center positive). For outdoor use, protect from moisture. This power supply is a reliable replacement for many 12V 5A applications.
