Fuente de alimentación Thermaltake Toughpower SFX 650W Gold

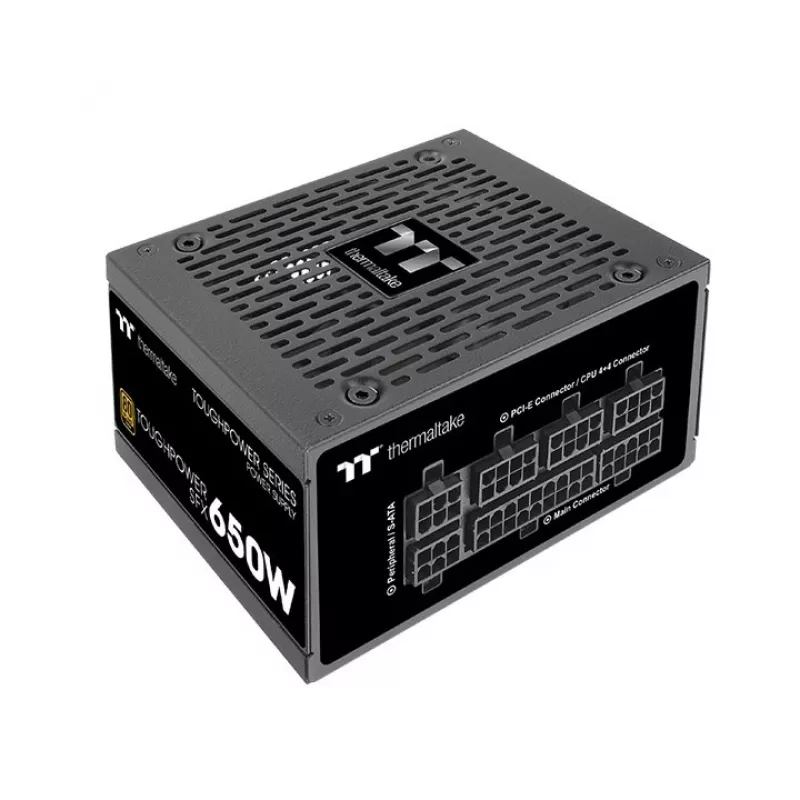

The Thermaltake Toughpower SFX 650W Gold is a compact power supply unit designed for small form-factor PC builds. Delivering 650 W of continuous power and up to 780 W peak output, it combines a fully modular cabling system with an SFX footprint to simplify installation and cable management in tight cases. The unit is finished in black and includes a 20+4 pin ATX motherboard connector to support modern desktop motherboards.

Advantages

The 80 PLUS Gold certification ensures improved energy efficiency and lower heat generation compared with lower-rated units, which can reduce overall system noise and operating costs. Fully modular cabling allows you to connect only the necessary leads, improving airflow and simplifying assembly in compact enclosures. An active cooling solution with a 90 mm fan maintains stable operating temperatures under typical loads while the small SFX dimensions (125 mm x 100 mm x 63.5 mm) make it suitable for mini-ITX and other small chassis.

Suitable for

• Mini-ITX or other small form-factor desktop builds where space is limited
• Systems requiring a reliable 650 W continuous power supply with brief peaks up to 780 W
• Builds where modular cabling is needed to improve airflow and cable routing
• Use cases that value energy efficiency and lower heat output, such as home or office PCs

When it may not be suitable

This SFX power supply is not ideal for full-tower or larger systems that require multiple high-power PCIe connectors for multi-GPU configurations or extensive peripheral loads beyond 650 W continuous. Systems that require passive cooling or extremely low acoustic profiles under heavy sustained load may need a different PSU with a larger fan or specialized fan control.

Key specifications

• Total power: 650 W (continuous), peak up to 780 W
• Efficiency rating: 80 PLUS Gold
• Form factor: SFX; dimensions 125 mm x 100 mm x 63.5 mm

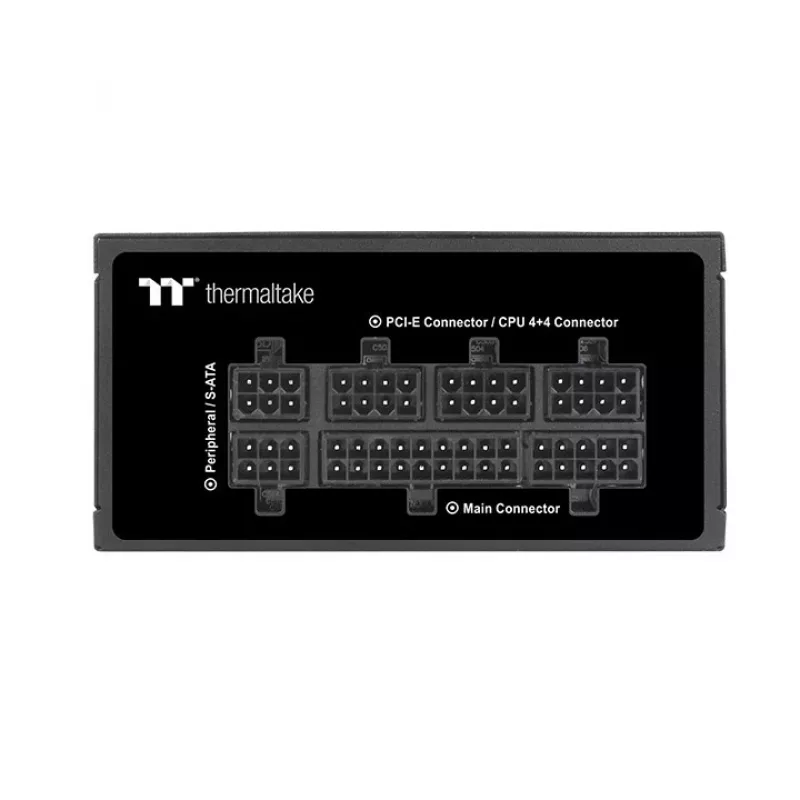

• Motherboard connector: 20+4 pin ATX

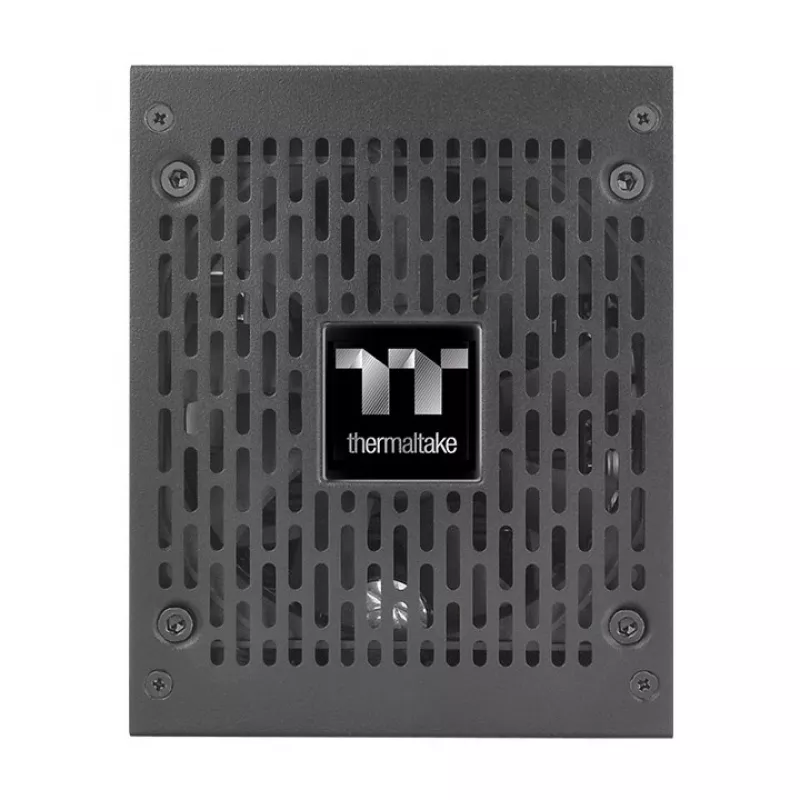

• Cooling: 90 mm fan (active cooling)
• Colour: Black
• Weight: 0.855 kg

How to use

Install the Thermaltake Toughpower SFX 650W Gold into the SFX-compatible power supply bay of your small form-factor case following your case manufacturer's mounting instructions. Connect the 20+4 pin ATX connector to the motherboard and attach only the modular cables required for your CPU, GPU, storage devices and peripherals to maintain tidy cable management. Ensure the PSU fan intake has adequate clearance and ventilation. After making all connections, verify voltage settings (if applicable) and power on the system to confirm stable operation.

What to consider before purchase

• Confirm your case supports SFX power supplies or use an SFX-to-ATX adapter bracket if required
• Verify total system power draw, including peak loads, to ensure 650 W continuous (780 W peak) is sufficient
• Check the number and type of modular connectors you need for GPU and peripherals
• Consider acoustic preferences since the unit uses an active 90 mm fan

Recommendations

For compact builds, pair this PSU with energy-efficient components and tidy modular cabling to maximise airflow and reduce operating temperatures. Regularly inspect connections and ensure intake/exhaust paths are unobstructed to maintain efficiency and fan lifespan.
