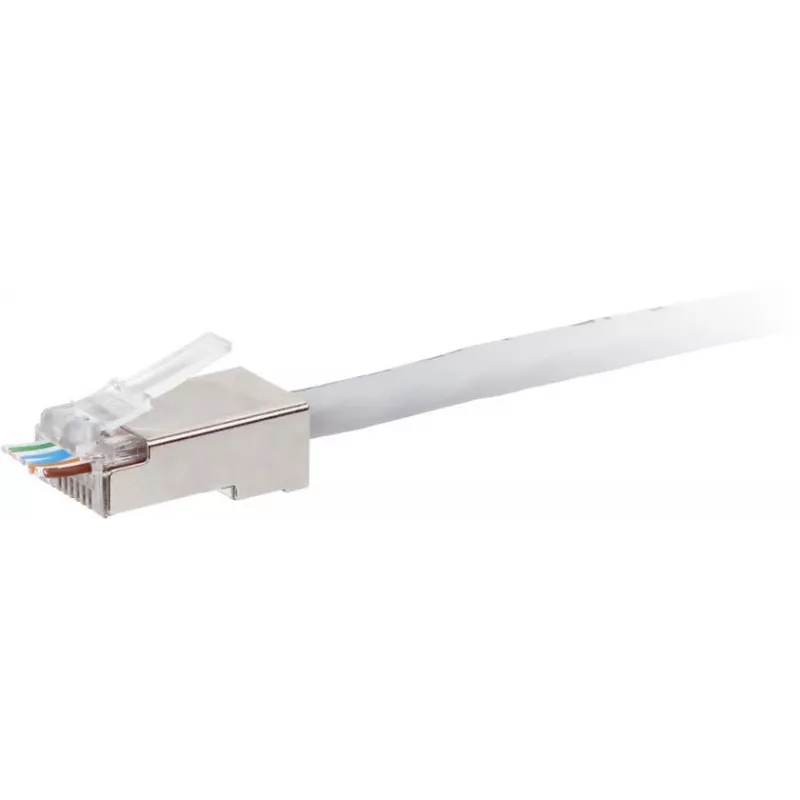

GETFORT conector pasante blindado RJ45 Cat.6 8P8C pack de 100 transparente

The GETFORT GF-RJ45-6FTP-100 is a high-performance RJ45 Cat.6 shielded pass-through modular plug designed for reliable Ethernet cable termination. This pack of 100 connectors is ideal for network installers and IT professionals requiring consistent, high-speed connections.

Advantages

These connectors feature a pass-through design that allows wires to be pushed through the plug for easy alignment and verification before crimping, reducing installation errors. The 50-micron gold-plated contacts ensure excellent conductivity and corrosion resistance, while the shielded construction (STP/FTP compatible) minimizes electromagnetic interference for stable data transmission.

Suitable for

• Structured cabling in offices and data centers
• Home network installations
• Industrial Ethernet applications
• Custom-length patch cable assembly

Key specifications

• Connector Type: RJ45 8P8C
• Category: Cat.6
• Shielding: Shielded (STP/FTP)
• Contact Plating: 50 µm Gold
• Housing Material: Polycarbonate (PC)
• Contact Material: Phosphor Bronze
• Wire Gauge: 23-26 AWG
• Data Rate: Up to 10 Gigabit Ethernet
• Frequency: Up to 250 MHz
• Insertion Cycles: >750
• Operating Temperature: -10°C to 60°C
• Compliance: RoHS, TIA/EIA-568-C.2

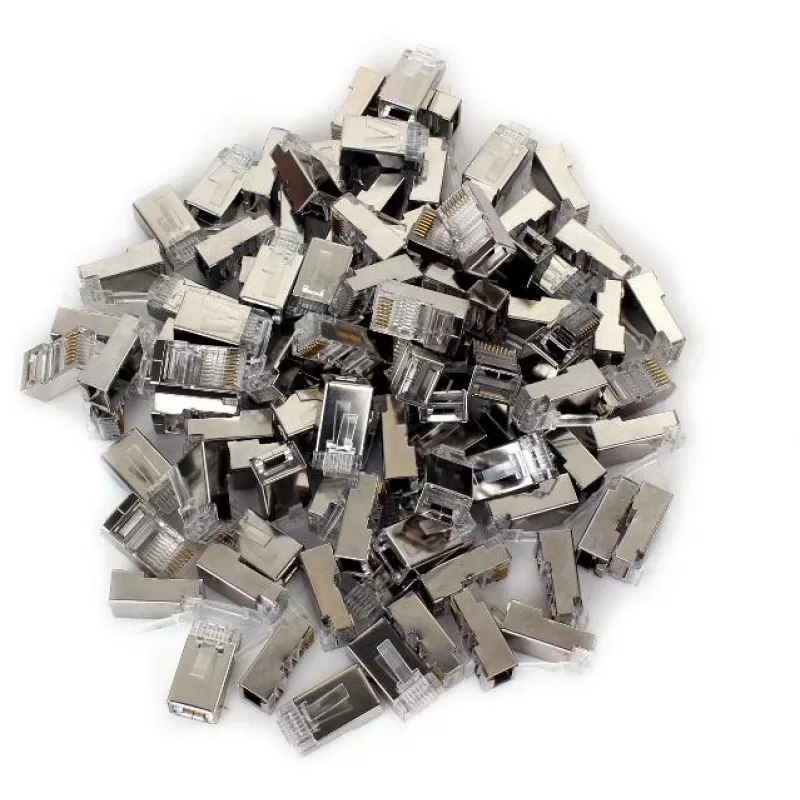

• Pack Quantity: 100 pieces
• Colour: Transparent

Recommendations

For best performance, use with Cat.6 or Cat.6a solid or stranded cable and a compatible crimping tool. Ensure proper cable preparation and insertion to maintain shielding integrity.
