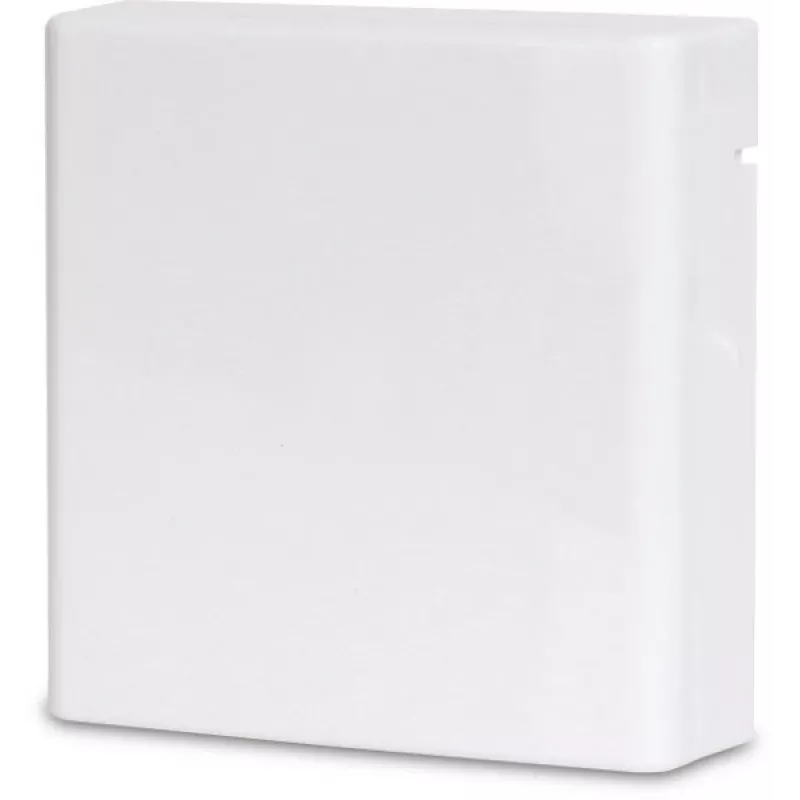

GETFORT GF-FO2P roseta de fibra óptica FTTH con adaptadores SC/APC y LC/APC, caja de pared 2 puertos, monomodo, blanca

For FTTH installations demanding both SC and LC connectivity in one compact unit, the GETFORT GF-FO2P stands apart from typical single-adapter outlets. This 2-port subscriber outlet integrates SC/APC and LC/APC adapters, enabling direct connection to diverse ONT/ONU equipment without additional hybrid cables. Its angled physical contact (APC) polishing ensures minimal back reflection, critical for high-speed GPON and XGS-PON networks. The wall-mount box streamlines fiber management with an integrated splice tray, accommodating up to two fusion or mechanical splices, while multiple cable entry points simplify routing in tight spaces.

Highlights

• Dual adapter configuration: SC/APC and LC/APC for flexible connectivity
• Single-mode fiber compatibility with APC polishing for low return loss
• Integrated splice tray supports up to 2 fusion or mechanical splices
• Robust ABS plastic housing in white, suitable for indoor wall mounting
• Dust caps included to protect adapters when not in use
• Low insertion loss (≤0.3 dB) and high return loss (≥60 dB) per adapter
• Wide operating temperature range from -20°C to +70°C
• RoHS compliant for environmental safety

In daily use

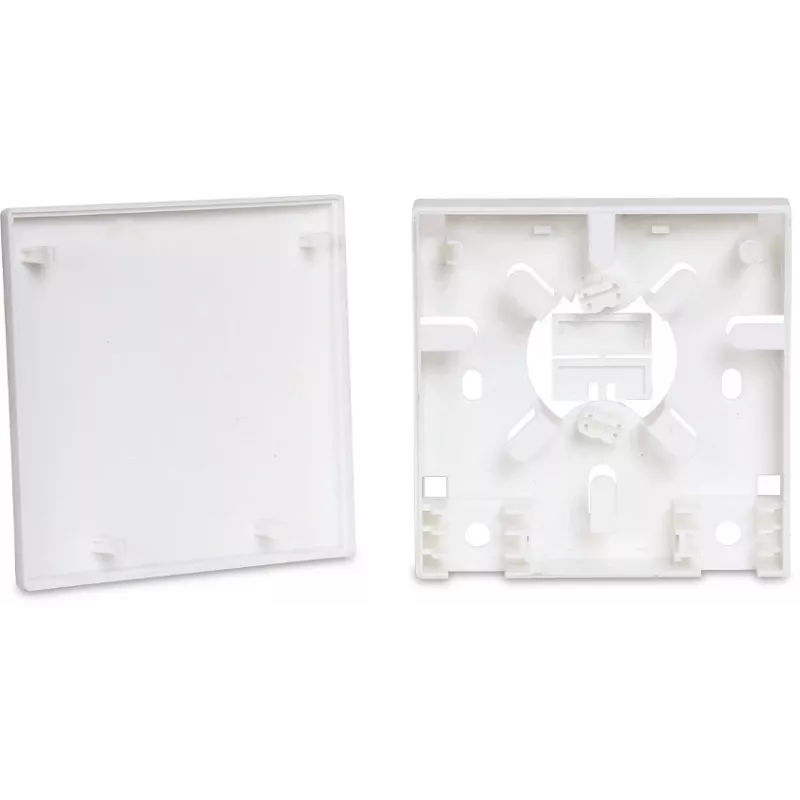

Installers appreciate the GETFORT GF-FO2P for its straightforward screw-on mounting and thoughtful cable management. The outlet's multiple entry points—bottom and side—allow for clean routing of drop cables, while the internal splice tray keeps fibers organized and protected. The dual adapters mean one box can serve both legacy SC-based devices and modern LC-based ONTs, reducing inventory needs. The white ABS housing blends discreetly into residential or office interiors, and the included dust caps prevent contamination when ports are unused. Whether deploying a new FTTH connection or upgrading an existing one, this outlet provides a reliable, low-loss interface that maintains signal integrity across the entire optical link.

Full specifications

• Product Type: Fiber Optic Subscriber Outlet / Wall Box
• Application: FTTH (Fiber To The Home)
• Number of Adapter Ports: 2
• Adapter Type 1: SC/APC
• Adapter Type 2: LC/APC
• Fiber Compatibility: Single-mode (SM)
• Connector Polishing Type: Angled Physical Contact (APC)
• Mounting Type: Wall-mount (Surface)
• Material: ABS Plastic
• Color: White
• Splice Capacity: Up to 2 fusion or mechanical splices
• Cable Entry Points: Multiple (e.g., bottom, side)
• Dust Caps: Included for adapters
• Insertion Loss (Adapter): ≤ 0.3 dB
• Return Loss (Adapter): ≥ 60 dB
• Operating Temperature: -20°C to +70°C
• Humidity: 5% to 95% non-condensing
• Integrated Features: Fiber management, splice tray
• Installation: Easy, screw-on
• Compliance: RoHS

Final note

The GETFORT GF-FO2P is a practical choice for FTTH deployments where versatility and signal quality are paramount. Its dual-adapter design and robust construction ensure long-term reliability in subscriber premises.
