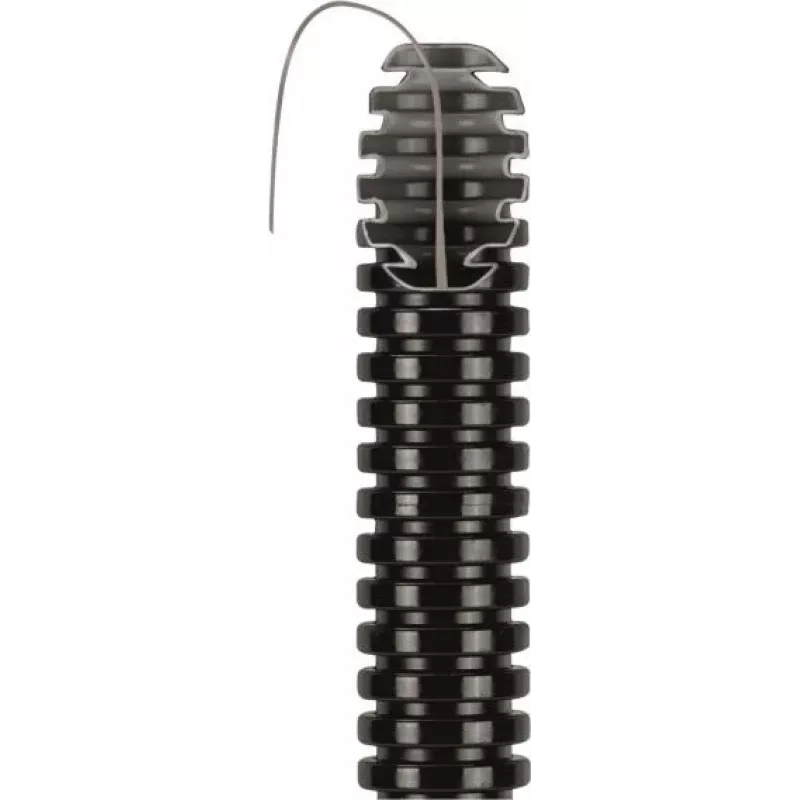

GEWISS DX15125R Tubo corrugado flexible 25 mm negro 75 m con guía de cables

The GEWISS DX15125R is a flexible corrugated conduit engineered for embedded installations in hollow walls and false ceilings. Its self-extinguishing PVC construction provides reliable mechanical protection for electrical wiring, while the integrated draw wire simplifies cable pulling over the full 75-meter coil length.

Highlights

• Nominal outer diameter: 25 mm, inner diameter: 18.5 mm
• Supplied as a 75 m coil with pre-installed draw wire
• Self-extinguishing PVC material for enhanced fire safety
• Compression strength: 320 N at 22°C
• Impact resistance: 2 J at -5°C
• Operating temperature range: -25°C to +60°C

In daily use

This conduit is designed for routing and protecting electrical cables in residential and commercial buildings. Its flexibility allows easy bending around corners without kinking, and the draw wire facilitates quick cable insertion. The black finish blends with typical installation environments.

Full specifications

• Conduit Type: Flexible Corrugated Conduit
• Material: Self-extinguishing PVC
• Nominal Outer Diameter: 25 mm
• Nominal Inner Diameter: 18.5 mm
• Length: 75 m
• Colour: Black
• With Draw Wire: Yes
• Mechanical Resistance Class: Medium (Class 320N)
• Compression Strength: 320 N (at 22°C)
• Impact Resistance: 2 J (at -5°C)
• Operating Temperature Range: -25 °C to +60 °C
• Installation Temperature Range: -5 °C to +60 °C
• Resistance to Flame Propagation: Self-extinguishing
• Halogen-free: No
• Standard Compliance: EN 61386-22
• Application: Embedded installations, hollow walls, false ceilings
• Electrical Insulation: High
• Flexibility: Flexible
• Packaging Type: Coil

Final note

Designed for reliable cable management in demanding installation scenarios, the DX15125R combines durability with ease of use.
