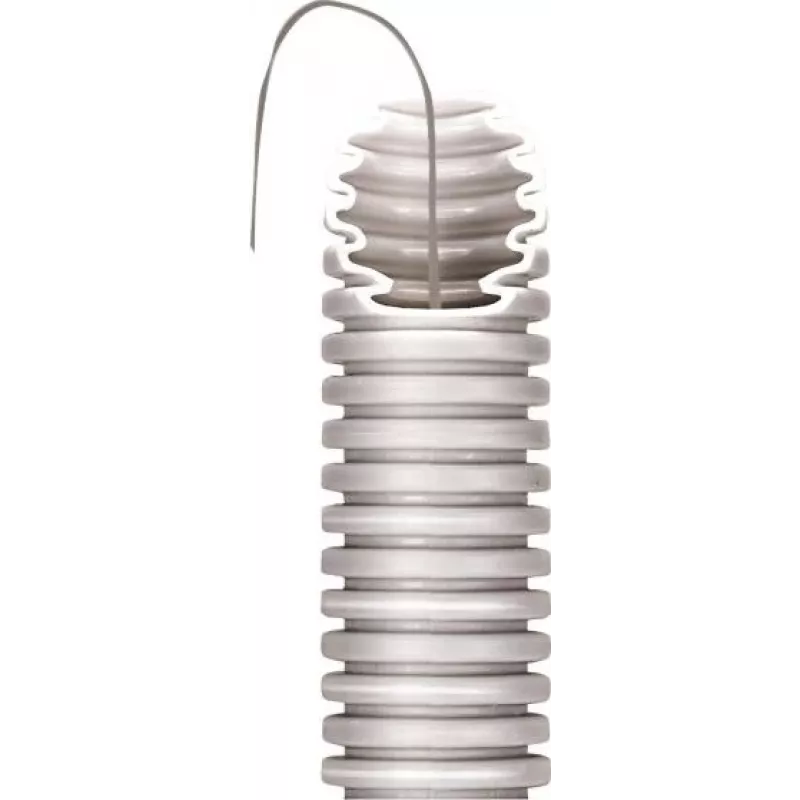

GEWISS DX20140R ICTA/40F Tubo corrugado flexible, 40mm, Gris, 25m con guía de arrastre

Routing electrical cables through walls, floors, or conduits often means fighting stiff pipes or dealing with separate pull wires. The GEWISS DX20140R solves this by combining a flexible corrugated conduit with a pre-installed pull wire, so cable installation becomes faster and less frustrating.

Who is it for

Electricians and installers who need a reliable, flexible conduit for protecting and routing cables in residential, commercial, or light industrial settings. It suits both new installations and retrofits where bends and tight spaces are common.

Main features

• Flexible corrugated design for easy bending and routing
• Pre-installed pull wire for quick cable drawing
• Grey polypropylene construction, halogen-free
• Nominal diameter 40 mm, length 25 m
• Compression resistance class 3 (750 N)
• Impact resistance class 4 (6 J)

Specifications

• Product type: Flexible corrugated conduit pipe
• Series: GEWISS ICTA 3422 DX
• Nominal diameter: 40 mm
• Length: 25 m
• Colour: Grey
• Material: Polypropylene (PP)
• Feature: Pre-installed pull wire
• Standard compliance: EN 61386-22
• Compression resistance: Class 3 (750 N)
• Impact resistance: Class 4 (6 J)
• Minimum operating temperature: -5 °C
• Maximum operating temperature: +90 °C
• Flame propagation: Non-flame propagating
• Halogen-free: Yes
• Application: Electrical installations, cable protection
• Flexibility: Flexible
• Inner diameter (approx.): 32.5 mm
• Outer diameter (approx.): 40.5 mm

Tips

When pulling multiple cables, use a suitable lubricant to reduce friction and protect the cable insulation. The pre-installed pull wire can be replaced if damaged, but ensure the replacement is securely attached before pulling.
