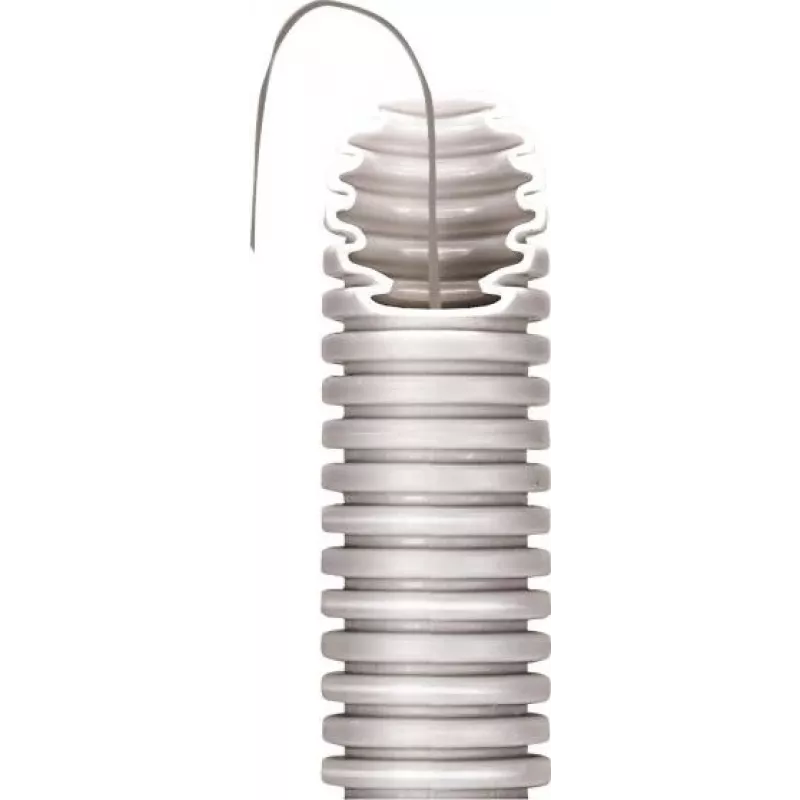

Tubo corrugado flexible GEWISS DX20150R ICTA, 50 mm, gris, 25 m con alambre individual

Flexible corrugated conduit for electrical cable protection in surface, flush, and concrete installations. The pre-installed pull wire simplifies cable drawing over the full 25-meter length.

Advantages

Medium duty mechanical resistance (320 N compression strength) protects cables during installation and use. Self-extinguishing PVC construction reduces flame propagation. The corrugated profile provides flexibility for routing around obstacles.

Suitable for

• Surface and flush electrical installations
• Concrete embedding for cable protection
• Routing power and signal cables in buildings

Key specifications

• Nominal diameter: 50 mm
• Outer diameter: 50 mm
• Inner diameter: 40.5 mm
• Material: PVC
• Colour: Grey
• Length: 25 m
• Pre-installed pull wire
• Temperature range: -5°C to +60°C
• Compression strength: 320 N
• Impact resistance: 2 J at -5°C
• Dielectric strength: >2 kV
• Insulation resistance: >100 MΩ
• Protection degree with suitable fittings: IP44

Recommendations

Use with compatible GEWISS fittings to maintain IP44 protection. Verify local wiring regulations before installation.
