Grabador de vídeo en red AXIS S2224 Mk II 1U negro — 24 canales, hasta 7680×4320, HDD de 6 TB, SSD de 256 GB, RAID 0/1/10

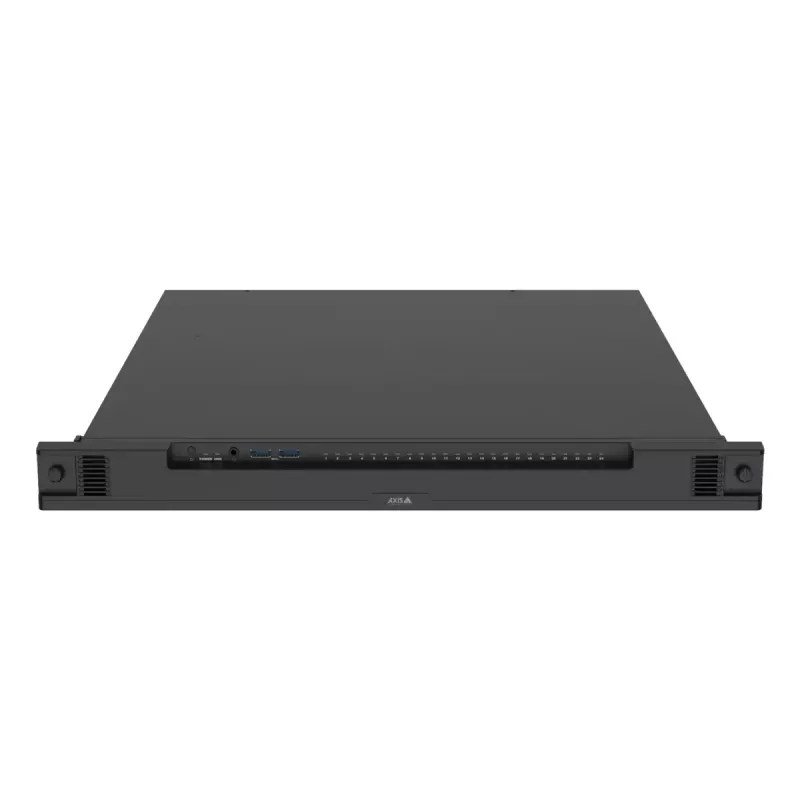

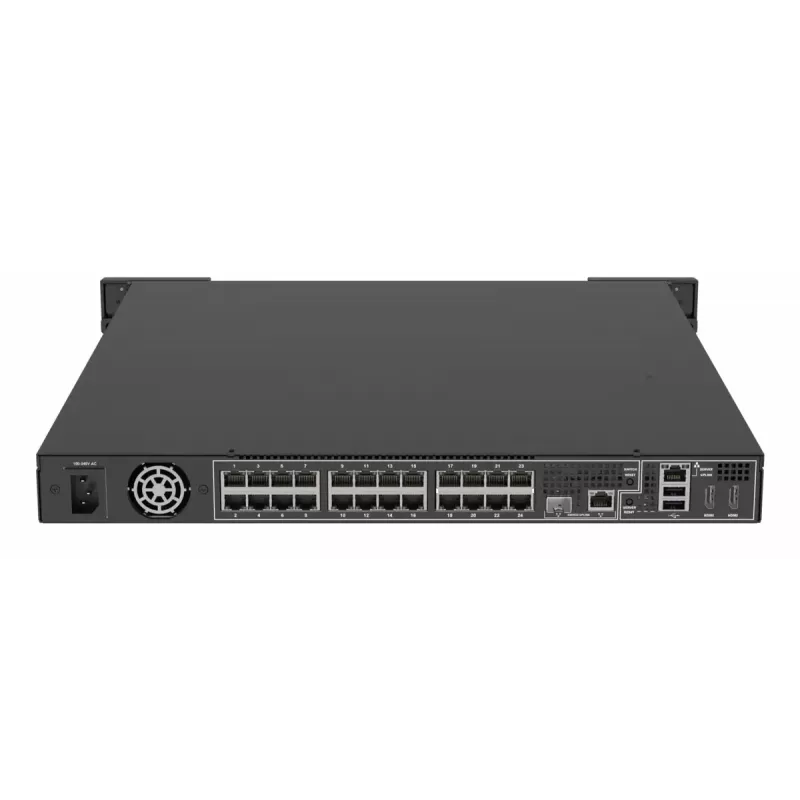

AXIS Camera Station S2224 Mk II Rack Appliance is a 1U rack-mounted network video recorder supporting 24 video input channels and resolutions up to 7680 × 4320. The appliance includes 24 AXIS Camera Station Pro licenses, an integrated 24‑port PoE switch and 12 TB of preinstalled storage (2 × 6 TB HDD) with two empty drive bays for expansion. It ships with preloaded setup tools and AXIS Recorder Toolbox for fast on‑premises deployment and also supports optional cloud recording via AXIS Camera Station Cloud Storage.

Advantages

This all‑in‑one rack recorder centralizes video management and provides integrated PoE connectivity for cameras, enabling immediate deployment at larger sites such as manufacturing facilities and commercial buildings. It supports multiple RAID levels (0/1/5/10) for redundancy and flexible capacity, offers an uplink port for cost‑efficient system expansion with compatible recorders, and includes hardware support for AI‑enabled features such as Smart Search 2. A 5‑year hardware warranty with advanced replacement (RMA) service is provided to help make ownership costs predictable.

Suitable for

Key specifications

How to use

Mount the 1U appliance into a standard rack bay and connect cameras to the integrated 24‑port PoE switch. Start the preloaded AXIS Recorder Toolbox and follow the setup wizard to configure hostname, network settings and date/time. Configure storage and choose the RAID level that meets your redundancy and retention needs, then apply the included AXIS Camera Station Pro licenses. To enable cloud backup, activate AXIS Camera Station Cloud Storage. Use the built‑in dashboard to monitor system status, switch uptime and perform maintenance or software updates.

Recommendations

Install the appliance in a controlled rack environment with restricted physical access, enable secure boot and TPM‑backed encryption where available, and apply network segmentation to isolate recording devices from public or corporate networks. Populate the two empty drive bays when longer retention periods are required.
