Grabador IP TC-R3120 20 canales Lite

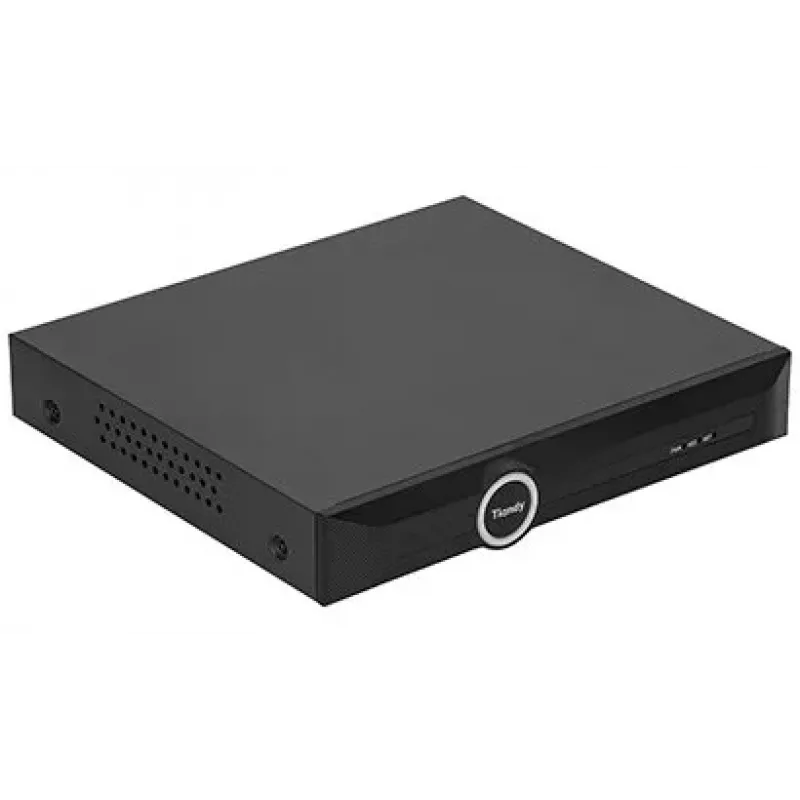

The TC-R3120 is a 20-channel IP video recorder designed for efficient and reliable surveillance. Supporting H.265/H.264 compression, it offers high-quality recording and playback for up to 16 channels simultaneously. With dual SATA interfaces supporting up to 20TB total storage, it is ideal for small to medium-sized security systems.

Advantages

Cost-effective 20-channel NVR with 4K HDMI output, easy mobile monitoring via Easy7 app, and low power consumption.

Suitable for

• Retail stores
• Office buildings
• Warehouses
• Residential complexes

Key specifications

• Video Input: 20 IP camera channels
• Video Output: 1x HDMI (up to 4K), 1x VGA (up to 1080p)
• Decoding: 1x12MP@30fps, 2x8MP@30fps, 4x5MP@30fps, 5x4MP@30fps, 8x1080P@30fps, 16x720P@30fps
• Compression: H.265, H.264
• Audio: G.711A, G.711U, G.726; 1-ch RCA input, 1-ch RCA output
• Storage: 2x SATA, up to 10TB each (20TB total)
• Network: 1x RJ45 10/100/1000Mbps
• USB: 1x USB 2.0, 1x USB 3.0
• Alarm: 4-ch input, 1-ch output
• Power: DC12V, ≤10W (without HDD)
• Operating Temperature: -10°C to 55°C

Recommendations

Pair with compatible IP cameras and a high-capacity HDD for optimal performance. Use the Easy7 app for remote viewing on iOS and Android devices.
