HAGER Caja híbrida de plástico PT 24M 2x placa de montaje IP40 865x335x90 puerta perforada Volta.Hybrid

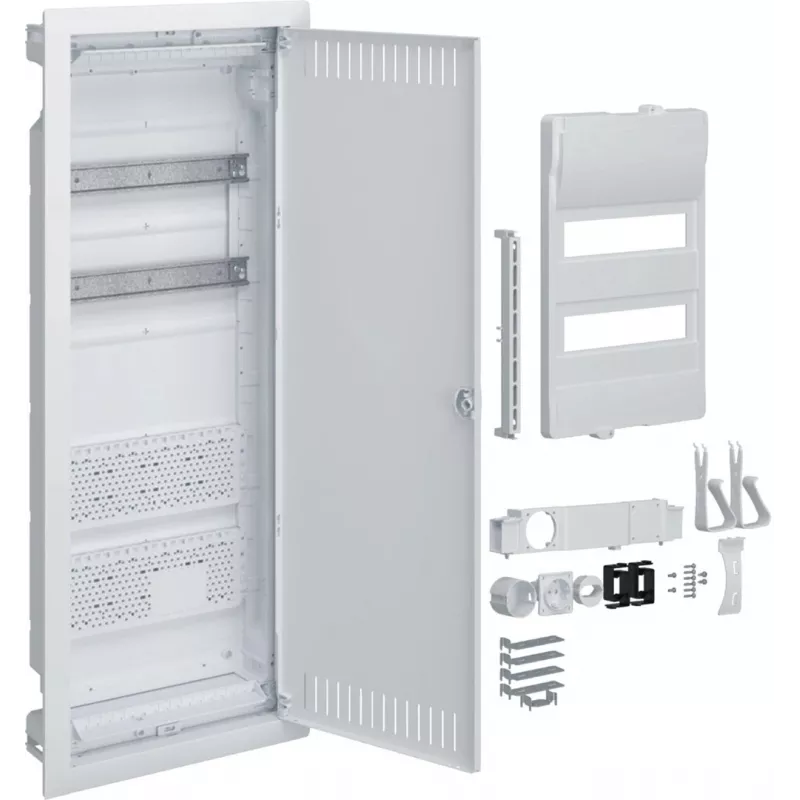

The HAGER VU602PLH Plastic Hybrid PT Enclosure is a versatile distribution board designed for residential and light commercial applications, integrating power and multimedia in a single unit. With 24 modules across 2 rows, it offers ample space for circuit protection and data components. The IP40-rated thermoplastic housing ensures protection against solid objects, while the perforated door allows for ventilation. Included are two mounting plates for easy installation of multimedia devices. The enclosure is flush-mounted and features a reversible door hinge for flexible installation.

Advantages

This hybrid enclosure simplifies installation by combining electrical and low-voltage components in one unit, saving space and reducing installation time. The perforated door promotes airflow, helping to maintain optimal operating temperatures. The reversible hinge allows the door to open left or right, adapting to any room layout. The white RAL 9010 finish blends seamlessly with modern interiors.

Suitable for

• Residential electrical distribution
• Light commercial buildings
• Integration of power and multimedia systems
• Flush-mounted installations in walls

Key specifications

• Product Type: Hybrid Distribution Board Enclosure
• Mounting Type: Flush Mounted (Recessed)
• Number of Modules: 24 Modules (2 rows of 12)
• Ingress Protection: IP40
• Material: Thermoplastic (Plastic)
• Door Type: Perforated Door
• Included Accessories: 2x Mounting Plates
• Colour: White (RAL 9010)
• Glow Wire Test: 650 °C
• Door Opening Angle: 180°
• Door Hinge Side: Reversible (Left/Right)
• Standards: EN 61439-3
• Dimensions (HxWxD): 865 x 335 x 90 mm
• Weight: Approximately 2.5 kg

Recommendations

For optimal performance, ensure the enclosure is installed by a qualified electrician. Use appropriate cable glands for cable entry. This enclosure is ideal for new constructions or renovations where a clean, integrated look is desired.
