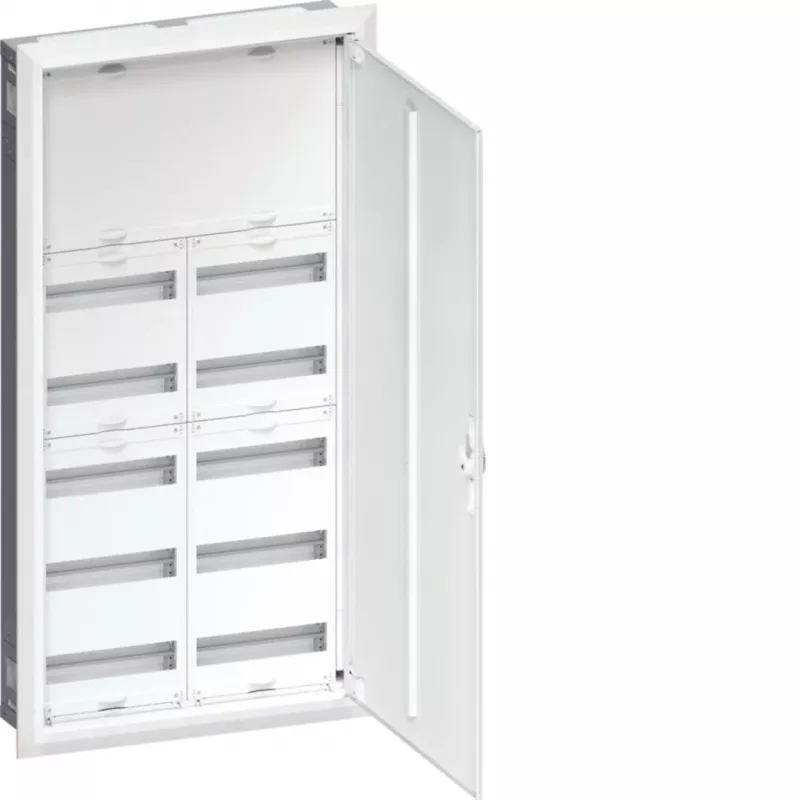

Hager FWU72N Cuadro de distribución empotrable 140 PLE IP30 1102x555x112mm acero blanco

The Hager FWU72N is a high-quality flush-mounted distribution board designed for professional electrical installations. With 140 module units (PLE) across 7 rows, it offers ample space for organizing and protecting electrical circuits. The robust steel construction with a white RAL 9010 finish ensures durability and a clean appearance, suitable for residential and commercial applications.

Advantages

This distribution board provides reliable protection with IP30 rating and IK07 impact resistance, ensuring safety in indoor environments. The flush-mount design allows for seamless integration into walls, saving space and maintaining aesthetics. The steel door with a standard double-bit lock offers secure access, while the 120° door opening angle facilitates easy installation and maintenance.

Suitable for

• Residential electrical distribution systems
• Commercial building installations
• Industrial control panels requiring up to 125 A rated current
• Applications needing 140 module units for circuit breakers, RCDs, and other devices

Key specifications

• Mounting Type: Flush-mounted (Unterputz)
• Number of Module Units: 140 PLE
• Number of Rows: 7
• IP Protection Class: IP30
• Material: Steel
• Colour: White (RAL 9010)
• Dimensions: 1102 x 555 x 112 mm (H x W x D)
• Door Type: Steel door with standard double-bit lock
• Protection Class: I
• Glow Wire Test: 650 °C
• Impact Resistance: IK07
• Rated Voltage (AC): 400 V
• Rated Current (In): Up to 125 A
• Standards: DIN VDE 0603-1, EN 61439-3
• Door Opening Angle: 120°
• Number of Fields: 1

Recommendations

For optimal performance, pair this distribution board with Hager modular devices and accessories. Ensure proper installation by a qualified electrician, following local regulations and standards.
