Hager univers Z campo de contador completo trifásico 3 campos 1050mm NRW SH MV (ZL33X4T)

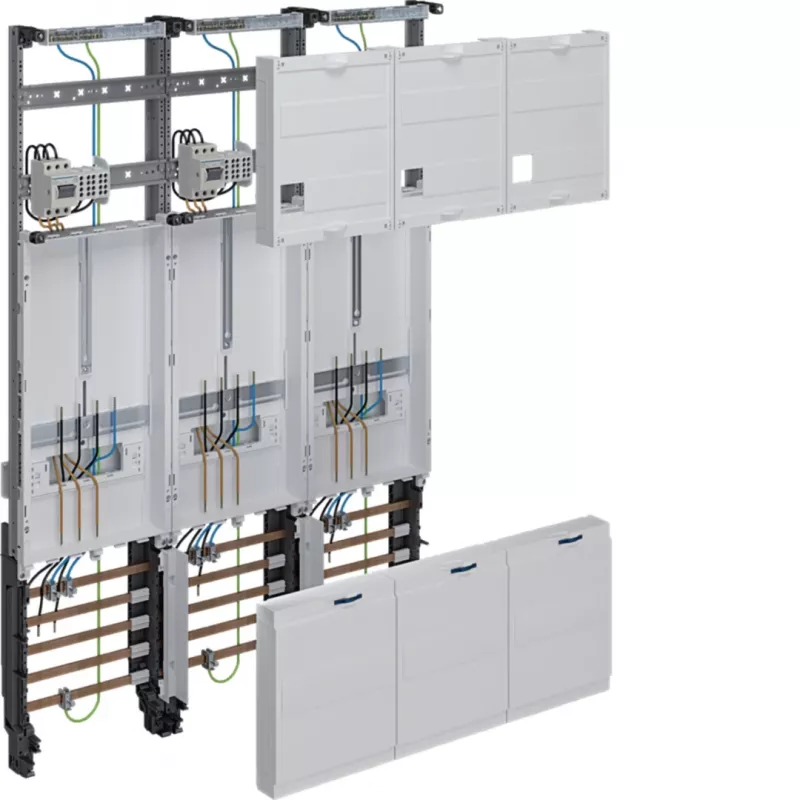

The Hager univers Z Complete Metering Field ZL33X4T is a pre-assembled, three-field metering panel designed for residential and commercial electricity metering. It complies with German regional standards for NRW, SH, and MV and is prepared for eHZ and conventional meters. With a height of 1050 mm, width of 750 mm, and depth of 160 mm, it offers a compact yet powerful solution for up to three meter positions.

Advantages

Pre-wired and pre-assembled for quick installation, saving time and reducing errors. The 5-pole main busbar system ensures reliable power distribution. Compatible with both eHZ and conventional meters, offering flexibility for future upgrades. The galvanized sheet steel construction provides durability and protection class IP2XC.

Suitable for

• Electricity metering in residential buildings
• Commercial building metering applications
• Installations requiring compliance with DIN VDE 0603-1 and VDE-AR-N 4100 (TAB)
• Regional projects in NRW, SH, and MV, Germany

Key specifications

• Product Type: Complete Metering Field
• System Series: Hager univers Z
• Number of Meter Positions: 3
• Number of Fields: 3
• Height: 1050 mm
• Width: 750 mm
• Depth: 160 mm
• Regional Version: NRW, SH, MV
• Rated Current (max.): 63 A
• Meter Type Compatibility: eHZ and conventional meters
• Busbar System: 5-pole main busbar, pre-wired
• Connection Technology: Screw terminals
• Protection Class (installed): IP2XC
• Material: Galvanized sheet steel
• Mounting Type: For flush-mounted or surface-mounted distribution boards
• Module Units (PLE) per Meter Position: 12 PLE (top) + 12 PLE (bottom) for main circuit breaker/RCD
• Main Circuit Breaker (SLS) Preparation: Prepared for E-SLS switch
• Standards: DIN VDE 0603-1, VDE-AR-N 4100 (TAB compliant)
• Pre-assembled: Yes

Recommendations

This complete metering field is ideal for electricians and installers looking for a reliable, pre-configured solution that meets the latest German metering standards. Ensure compatibility with your local utility requirements before installation.
