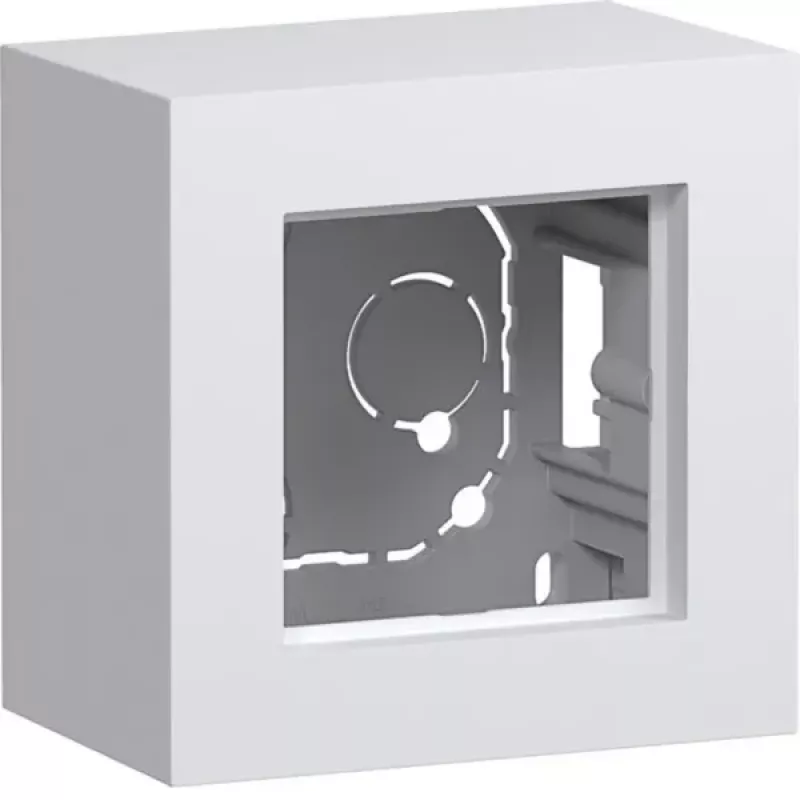

HAGER WAD8110WM Caja de superficie, 1 elemento, versión alta, Blanco polar

When installing switches or sockets on a wall where flush-mounting is not possible, you need a robust housing that keeps connections safe and accessible. The HAGER WAD8110WM is a surface-mounted housing designed for one gang, offering a high version that provides extra space for wiring and devices from the A.8 series.

Who is it for

This housing is ideal for electricians and DIY enthusiasts working on surface-mounted electrical installations in residential, commercial, or light industrial settings. It suits those who need a reliable, halogen-free, and UV-resistant enclosure for switches, sockets, or push-buttons.

Main features

• 1-gang surface-mounted housing, high version
• Compatible with Hager A.8 series devices
• Made of thermoplastic, halogen-free and UV-resistant
• Colour: Polar White
• Pre-punched cable entries for easy wiring
• Screw fastening for secure mounting
• Impact resistance: IK05
• Operating temperature range: -5 to +40 °C

Specifications

• Product type: Surface-mounted housing
• Number of gangs: 1
• Design series: Hager A.8
• Mounting type: Surface-mounted (AP)
• Version: High
• Material: Thermoplastic
• Colour: Polar White
• IP protection rating: IP20
• Halogen-free: Yes
• UV-resistant: Yes
• Suitable for: Switches, sockets, push-buttons (Hager A.8 series)
• Cable entry: Pre-punched entries
• Fastening type: Screw fastening
• Operating temperature range: -5 to +40 °C
• Impact resistance: IK05

Tips

Ensure the wall surface is clean and dry before mounting. Use appropriate screws and wall plugs for the substrate. The high version provides extra depth for wiring, making it easier to connect devices with more cables.
