HAGER WNA689 tapón de cubierta para orificios de tornillo, serie W.1, IP55, blanco

Maintain IP55 protection in Hager W.1 surface-mounted enclosures with the WNA689 cover plug, engineered to seal unused screw holes and preserve dust and jet-water resistance.

Overview

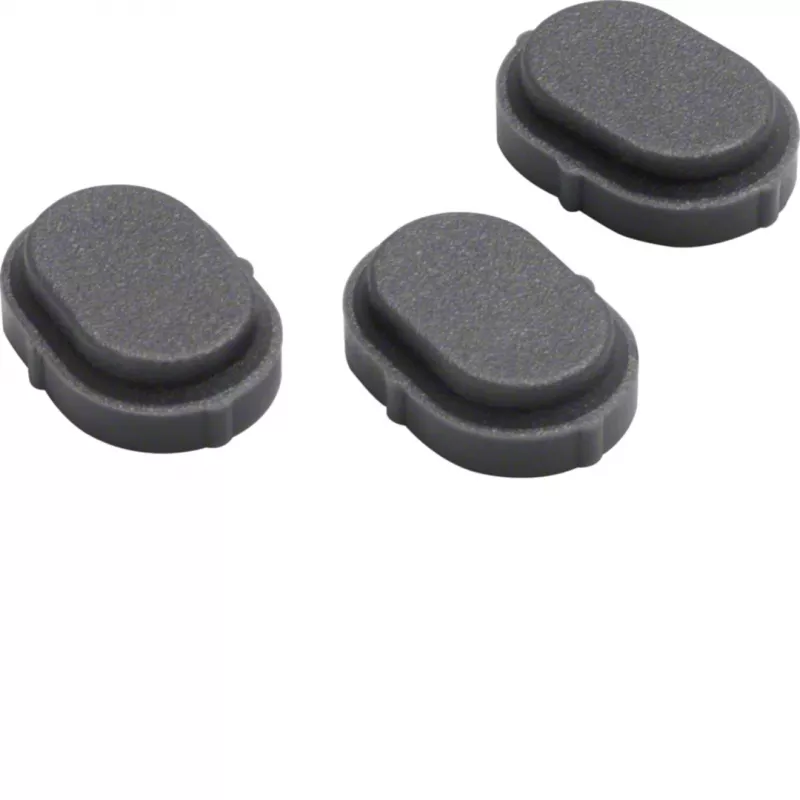

The Hager WNA689 is a push-in cover plug designed for the W.1 range of surface-mounted electrical enclosures. It effectively closes screw holes that are not in use, ensuring the enclosure retains its IP55 protection rating against dust and water jets.

What stands out

• Maintains IP55 protection by sealing unused screw holes
• Halogen-free and UV-resistant thermoplastic construction
• Impact resistance rated IK07
• Glow wire tested to 850 °C
• Simple push-in installation, no tools required

Technical details

• Product type: Cover plug / sealing plug
• Application: Sealing unused screw holes in electrical enclosures
• Series compatibility: Hager W.1 surface-mounted range
• Protection class: IP55
• Material: Thermoplastic
• Colour: Polar white (RAL 9010)
• Mounting method: Push-in / snap-in
• Halogen-free: Yes
• UV-resistant: Yes
• Operating temperature: -25 to +40 °C
• Storage temperature: -25 to +70 °C
• Impact resistance: IK07
• Glow wire test: 850 °C
• Installation type: Surface-mounted (for compatible enclosures)
• Hole diameter compatibility: Approx. 6 mm
• Head diameter (approx.): Approx. 10 mm

Our verdict

A reliable accessory to keep your Hager W.1 enclosures sealed and protected, with robust halogen-free and UV-resistant materials.
