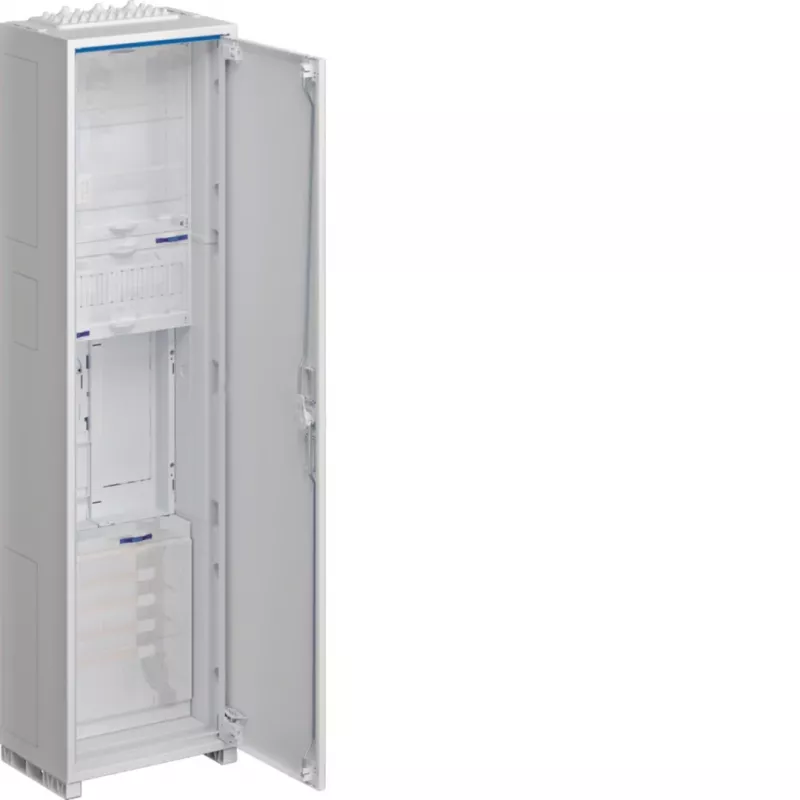

HAGER ZB31ET21W1 armario completo 1 emplazamiento de contador BKE-I 1 campo

The HAGER ZB31ET21W1 is a complete surface-mounted cabinet designed for single eHZ meter installations. It features a 1-field configuration with 2 distribution rows, offering 24 TE total module units. The cabinet is made of durable plastic housing with a sheet steel door, finished in white (RAL 9010). It includes PE/N terminals and is VDE tested for safety.

Advantages

This complete cabinet simplifies installation with pre-configured components, saving time and ensuring compliance. The IP31 protection class and double insulation (Class II) provide reliable protection in residential and commercial environments. The sealable design enhances security against tampering.

Suitable for

• Single eHZ meter installations in residential buildings
• Small commercial applications requiring up to 63 A rated current
• Surface-mounted distribution boards in utility rooms or basements

Key specifications

• Number of Meter Positions: 1
• Meter Type: eHZ
• Mounting Device: BKE-I
• Number of Fields: 1
• Number of Distribution Rows: 2
• Module Units per Row: 12 TE
• Total Module Units: 24 TE
• Protection Class: IP31
• Electrical Protection Class: II
• Mounting Type: Surface-mounted
• Housing Material: Plastic
• Door Material: Sheet Steel
• Colour: White (RAL 9010)
• Rated Current: 63 A
• Rated Voltage: 230/400 V AC
• Connection Terminals: PE/N terminals included
• Sealable: Yes
• Standards: VDE tested

Recommendations

For optimal performance, ensure the cabinet is installed by a qualified electrician. Pair with Hager accessories for seamless integration.
