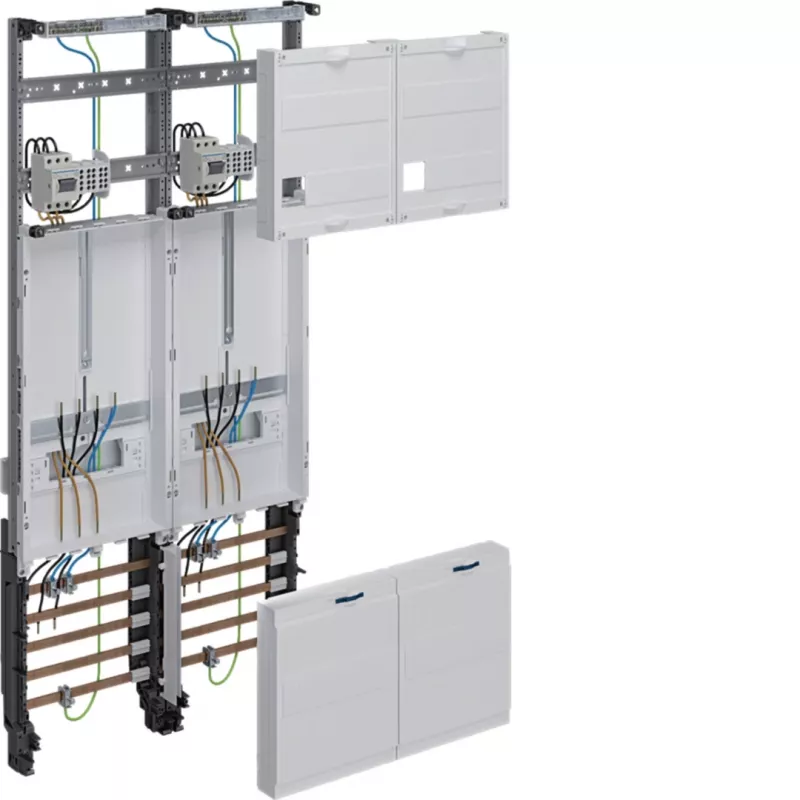

Hager ZK33Q3NT universZ cuadro completo 1050x500 mm 3 puntos 2 emplazamientos de contador 10 mm² con función de seccionamiento

The Hager ZK33Q3NT complete field for meter cabinets stands out with its 3-point mounting and integrated disconnecting function on the main line branch terminal, simplifying installation and maintenance in residential and commercial meter installations.

Highlights

• Pre-wired for two 3-phase meter places, reducing on-site wiring time.
• 5-pole busbar system rated 63 A supports reliable power distribution.
• Main line branch terminal with disconnecting function for safe isolation.
• Steel sheet construction with pure white RAL 9010 finish.
• Complies with DIN VDE 0603-1, DIN 43870-1, and VDE-AR-N 4100.

In daily use

Designed for vertical installation in suitable meter cabinets, the universZ complete field provides seven distribution rows with 12 module widths per row. The plug-in PE/N terminals and pre-wired meter connections streamline assembly, while the 10 mm² main conductor cross-section accommodates typical residential loads.

Full specifications

• Series: universZ
• Product type: Complete field for meter cabinets
• Mounting type: 3-point
• Number of meter places: 2
• Phase configuration: 3-phase
• Main conductor cross-section: 10 mm²
• Nominal current (main terminal): 63 A
• Main line terminal type: Main line branch terminal with disconnecting function
• Busbar system: 5-pole
• Busbar rated current: 63 A
• Material: Steel sheet
• Colour: Pure white (RAL 9010)
• Number of distribution rows: 7
• Module width per row: 12 TE
• PE/N terminals: Included, plug-in type
• Pre-wiring: Yes, for meter connections
• Application area: Residential and commercial meter installations
• Installation position: Vertical
• Compliance standards: DIN VDE 0603-1, DIN 43870-1, VDE-AR-N 4100

Final note

The Hager ZK33Q3NT complete field is a ready-to-install solution for meter cabinets, combining pre-wiring, a disconnecting function, and compliance with relevant standards.
