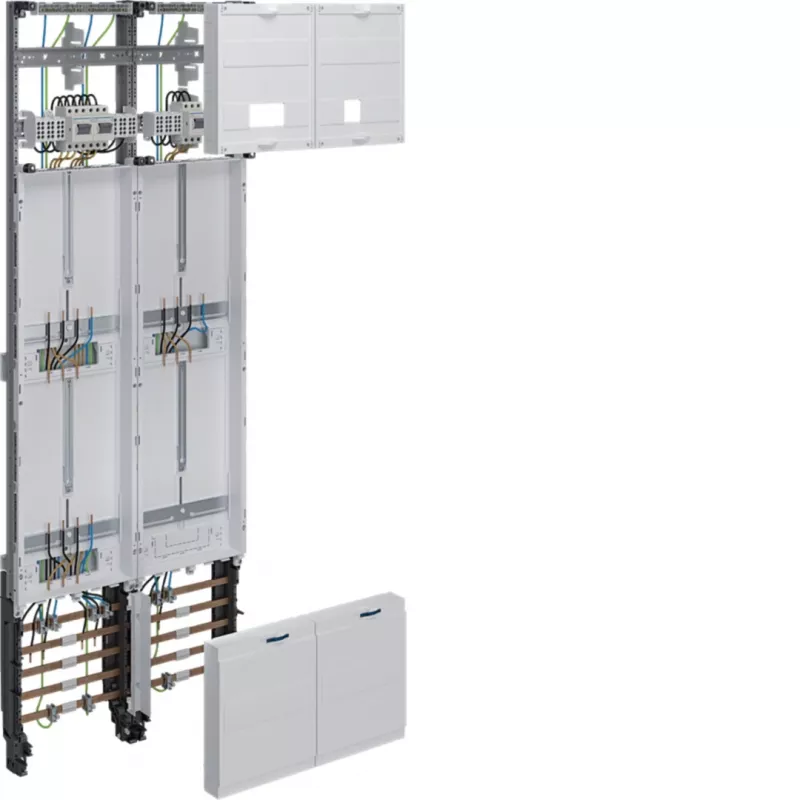

Hager ZK53Q5NT universZ Campo de contador completo, 3 puntos, trifásico, 10 mm², con interruptor seccionador, 1350x500mm

Complete meter cabinet field from the Hager universZ series, designed for three meter positions in a three-phase configuration. It features a 10 mm² main connection cross-section and includes an integrated disconnector for safe isolation. The field is built for metering and distribution in residential and commercial buildings, accommodating both electronic household meters (eHZ) and conventional meters.

Advantages

The universZ system offers a standardized, ready-to-install solution that simplifies planning and assembly. The integrated disconnector enhances safety during maintenance. The galvanized steel sheet construction ensures durability, and the 5-pole busbar system provides reliable power distribution.

Suitable for

• Residential buildings with up to three metering points
• Commercial premises requiring three-phase metering
• Installations with eHZ or conventional meters
• Projects needing a compact, pre-wired meter field

Key specifications

• System series: universZ
• Number of meter positions: 3
• Phase configuration: 3-phase
• Nominal current: 63 A
• Main connection cross-section: 10 mm²
• Auxiliary connection cross-section: 10 mm²
• Equipped with disconnector: Yes
• Overall dimensions: 1350 x 500 x 160 mm (H x W x D)
• Busbar system: 5-pole
• Terminal type: Screw terminals
• Material: Galvanized steel sheet
• Protection class (field): IP2X
• Standard compliance: DIN VDE 0603-1, DIN 43870
• Distribution units (APZ/OVE): 7 TE

Recommendations

Verify local regulations and utility requirements before installation. This field is intended for use by qualified electricians.
