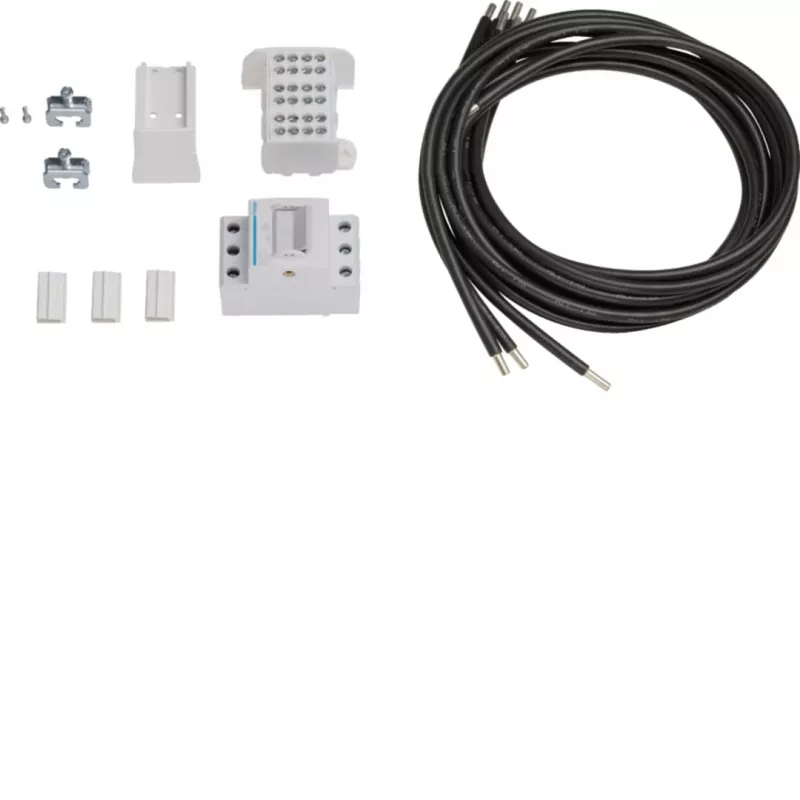

HAGER ZY12PV paquete de montaje para emplazamiento de contador, univers Z, 16 mm², para 1 emplazamiento de contador

The HAGER ZY12PV assembly package is tailored for a single meter position within the univers Z system, providing the necessary components for a compliant metering field. It supports conductor cross-sections up to 16 mm² and includes a 5-pole main line branch terminal, simplifying installation compared to sourcing individual parts.

Highlights

• Designed for Hager univers Z meter panels
• Supports 1 meter position
• Max conductor cross-section: 16 mm²
• Rated current: 63 A
• Includes 5-pole main line branch terminal (3P+N+PE)
• Complies with VDE-AR-N 4100

Full specifications

• Product type: Metering field assembly package
• System compatibility: Hager univers Z
• Number of meter positions: 1
• Max. conductor cross-section: 16 mm²
• Rated current: 63 A
• Main line branch terminal: 5-pole (3P+N+PE)
• Connection technology: Screw terminals
• Nominal voltage: 230/400 V AC
• Frequency: 50/60 Hz
• Mounting: Internal cabinet mounting

Final note

This package streamlines the assembly of metering fields in univers Z enclosures, ensuring all essential wiring and connection components are on hand.
