Hager ZH33Q7NT universZ campo de contador completo 1050x250mm trifásico 1 emplazamiento de contador 10mm² con función de corte

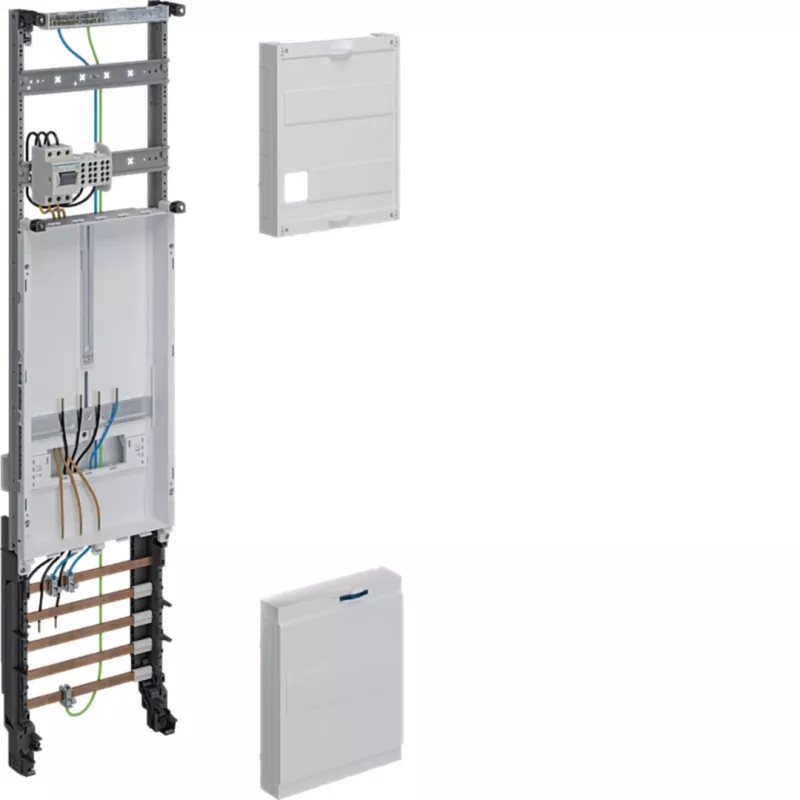

In modern electrical installations, integrating a meter into a distribution board often requires separate components and complex wiring. The Hager ZH33Q7NT universZ complete metering field solves this by providing a pre-assembled, ready-to-install unit that combines the meter mounting space, busbar system, and disconnecting function in one compact steel enclosure.

Who is it for

This metering field is intended for electricians and panel builders who install three-phase meter points in residential or commercial distribution boards. It suits projects where a single meter place is required and where a reliable disconnecting function is mandated by local regulations.

Main features

• Complete metering field for one three-phase meter place
• Integrated disconnecting function for safe isolation
• Main connection cross-section: 10 mm²
• 5-pole busbar configuration
• Rated operational voltage: 230/400 V AC
• Rated current: 63 A
• Dimensions: 1050 mm height, 250 mm width, 160 mm depth
• Steel construction for durability

Specifications

• Product type: Complete metering field
• System series: universZ
• Number of meter places: 1
• Phases: 3-phase
• Main connection cross-section: 10 mm²
• Integrated disconnecting function: Yes
• Mounting type: For meter cabinets / distribution boards
• Rated operational voltage (Ue): 230/400 V AC
• Rated current (In): 63 A
• Busbar configuration: 5-pole
• Protection degree (internal): IP2X
• Material: Steel
• Connection type: Screw terminals
• Height: 1050 mm
• Width: 250 mm
• Depth: 160 mm

Tips

Verify that the available space in your distribution board matches the 1050 mm height and 250 mm width. The integrated disconnecting function simplifies compliance with local isolation requirements, but always follow the applicable wiring regulations during installation.
