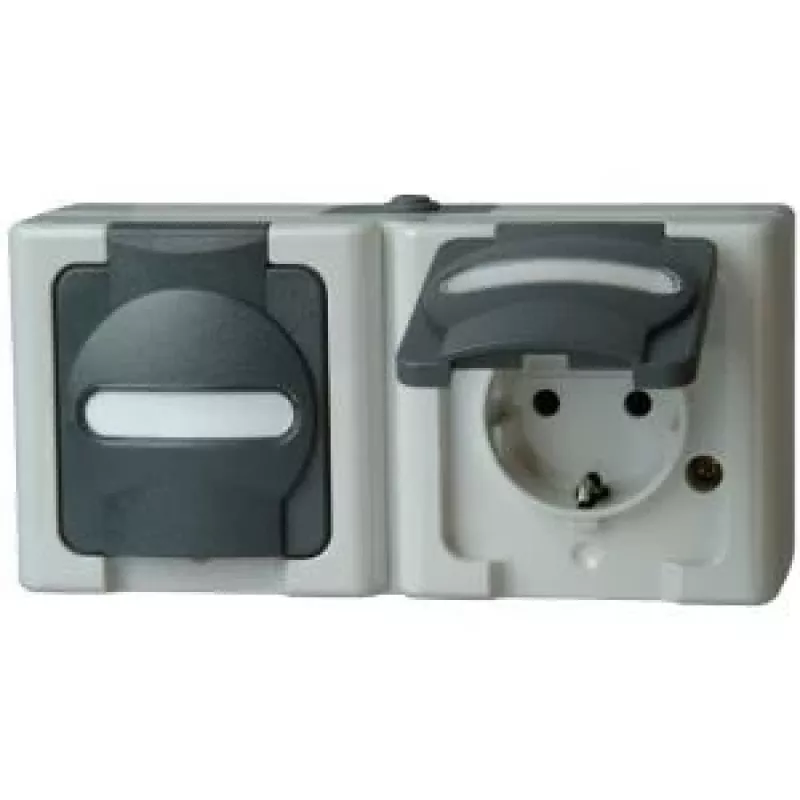

HEINRICH KOPP BLUE ELECTRIC combinación de superficie interruptor y toma Schuko, gris (131256002)

The HEINRICH KOPP BLUE ELECTRIC 131256002 is a robust surface-mounted combination unit featuring a rocker switch and a Schuko socket (Type F) with hinged cover and child safety. Designed for damp rooms and protected outdoor areas, it offers IP44 protection and a sleek grey thermoplastic finish.

Advantages

This combination saves installation space and time by integrating a switch and socket in one unit. The hinged cover protects the socket when not in use, while increased touch protection ensures safety. Screw terminals allow for secure and easy wiring.

Suitable for

• Damp rooms such as bathrooms, laundry rooms, and cellars
• Protected outdoor areas like covered terraces and garages
• Industrial and commercial surface-mounted installations

Key specifications

• Product Type: Switch and Schuko Socket Combination
• Mounting: Surface-mounted (AP)
• Protection Rating: IP44
• Colour: Grey
• Material: Thermoplastic, halogen-free
• Rated Voltage: 250V AC
• Rated Current (Socket): 16A
• Rated Current (Switch): 10A
• Socket Standard: Schuko (Type F) with hinged cover and child safety
• Switch Type: Rocker switch
• Orientation: Horizontal
• Connection: Screw terminals
• Cable Entry: Multiple (top, bottom, side)
• Number of Sockets: 1
• Number of Switches: 1

Recommendations

For a complete installation, pair with compatible surface-mounted junction boxes and cable glands. Ensure proper sealing for outdoor use.
