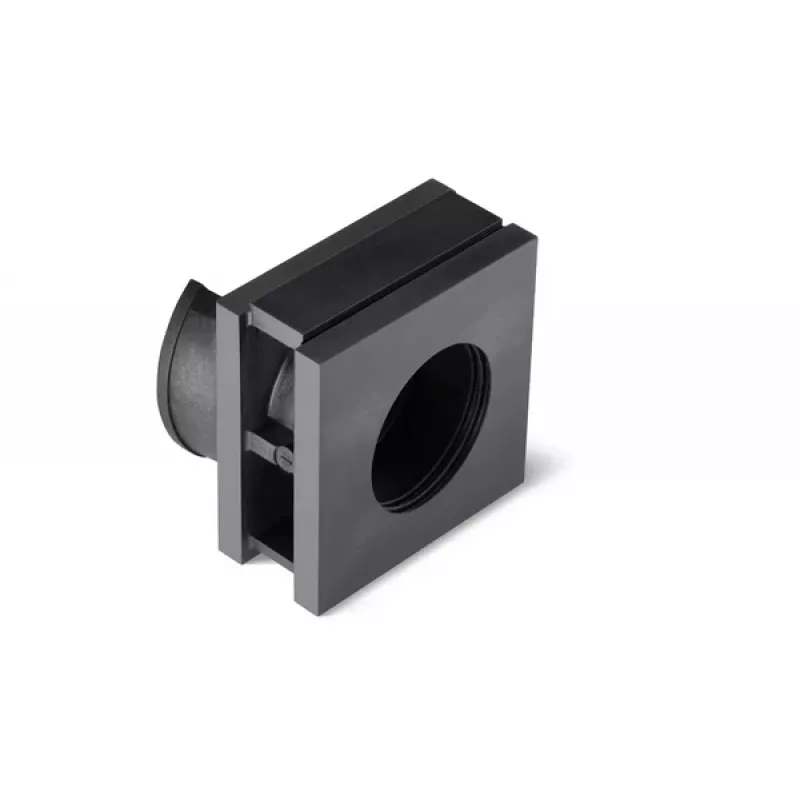

HellermannTyton VP-L 26-27 pasacables individual libre de halógenos TPE negro 440-00034

In control cabinets and electrical enclosures, cables passing through sheet metal cutouts need protection from sharp edges and strain. The HellermannTyton VP-L 26-27 single entry grommet snaps into a 26–27 mm hole and secures a cable with a diameter of 18–20 mm. Its halogen-free TPE body stays flexible from -40 °C to +100 °C and meets UL94 HB flammability requirements.

Key specifications

• Mounting hole diameter: 26.0–27.0 mm
• Cable diameter range: 18.0–20.0 mm
• Panel thickness: 1.0–2.5 mm
• Material: halogen-free thermoplastic elastomer (TPE)
• Colour: black
• Operating temperature: -40 °C to +100 °C
• Flammability rating: UL94 HB
• Installation: push-in / snap-in

Why choose it

The grommet provides strain relief and edge protection without additional fasteners. Its halogen-free formulation reduces corrosive smoke in the event of fire, and the snap-in design speeds up assembly.

Ideal use cases

• Routing power or signal cables through enclosure walls
• Protecting cable insulation from sharp panel edges
• Strain relief in industrial machinery and control panels

Good to know

One grommet per pack. For repeated installation, the TPE material returns to its original shape after insertion.
