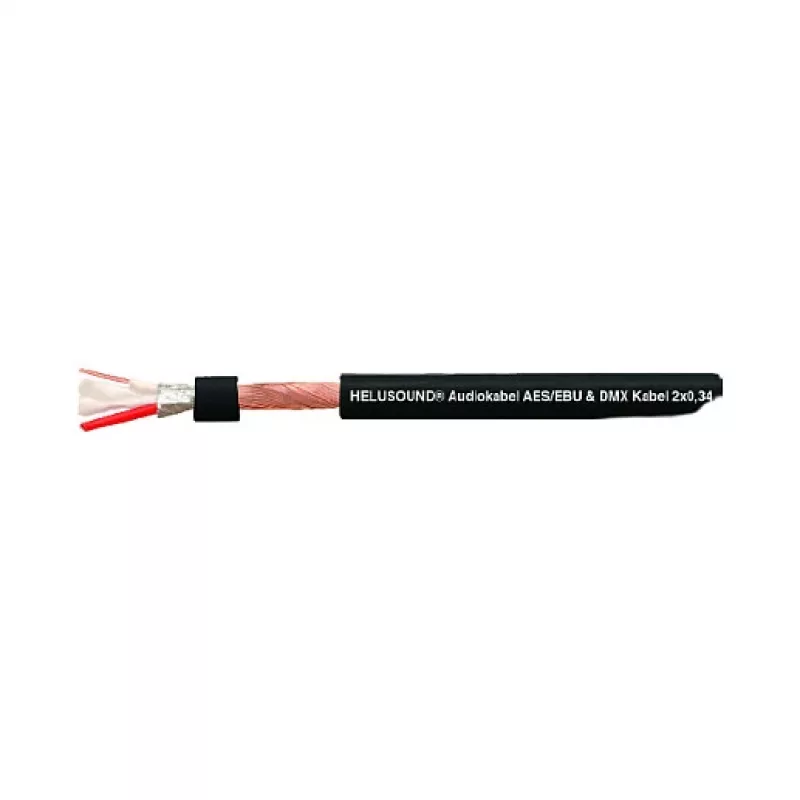

HELUKABEL HELU LIGHT Cable DMX 2x0,34 mm² Negro Cable de audio digital AES/EBU 400032

Stage technicians and lighting designers rely on the HELUKABEL HELU LIGHT DMX Cable for flawless transmission of DMX512 and AES/EBU digital audio signals in demanding live environments. This 2-core cable with 0.34 mm² tinned copper conductors and dual shielding ensures reliable control of moving heads, dimmers, and effects in theatres, concert venues, and broadcast studios.

Key specifications

• Conductor: 2 x 0.34 mm², tinned copper strands (7 x 0.25 mm per core)
• Characteristic impedance: 110 Ω ± 10 Ω
• Capacitance (core/core): approx. 60 pF/m
• Shielding: aluminium foil + tinned copper braid (approx. 85% coverage)
• Insulation: PE; jacket: matte black PVC
• Outer diameter: approx. 6.0 mm
• Nominal voltage: 300 V; test voltage: 1500 V
• Operating temperature: -30°C to +70°C (fixed), -5°C to +70°C (flexible)
• Minimum bending radius: 10 x outer diameter (flexible), 5 x outer diameter (fixed)
• Flame retardancy: IEC 60332-1-2

Why choose it

Engineered specifically for digital lighting protocols, this cable maintains a stable 110 Ω impedance to prevent signal reflections and data errors over long runs. The combination of foil and high-coverage braid shielding rejects electromagnetic interference from nearby power cables, ensuring clean, drop-out-free communication. Its rugged PVC jacket withstands the rigours of touring and permanent installations alike.

Ideal use cases

• DMX512 lighting control networks in theatres, clubs, and architectural lighting
• AES/EBU digital audio interconnects between professional audio devices
• Permanent installations in broadcast studios and live venues
• Touring rigs where reliable, flexible cabling is essential

Good to know

The HELU LIGHT DMX cable is part of HELUKABEL's professional range for entertainment technology. Its tinned copper conductors resist corrosion, and the dual shielding provides excellent protection against interference. The matte black jacket is discreet on stage and durable enough for repeated coiling and uncoiling.
