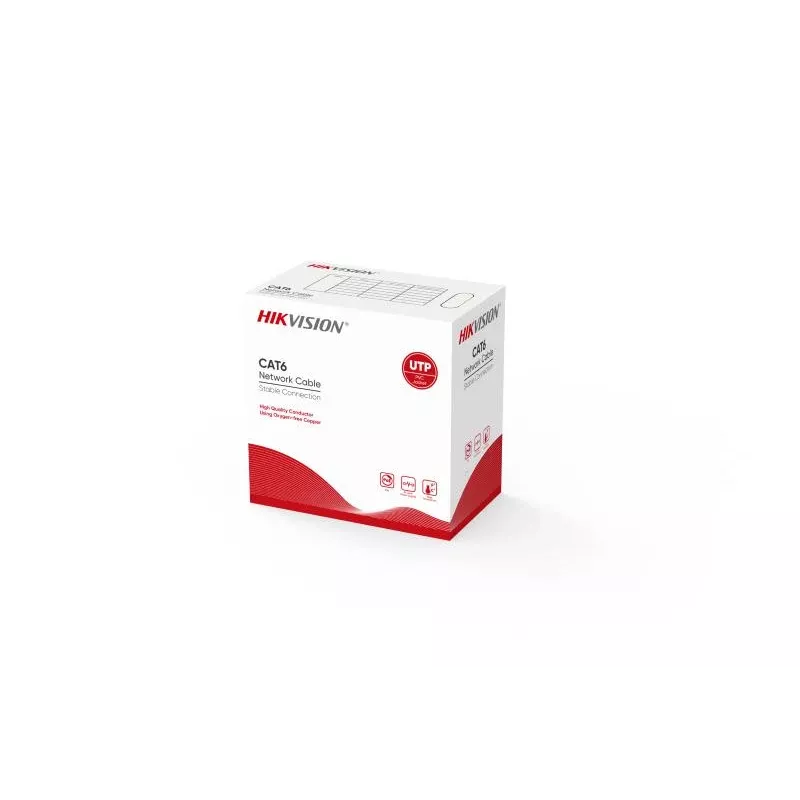

Hikvision DS-1LN6-UE-W cable de instalación Cat6 UTP 305m gris

The Hikvision DS-1LN6-UE-W is a high-performance Cat6 UTP installation cable designed for reliable network connectivity in indoor environments. With a length of 305 meters (1000 feet), this bulk cable is ideal for structured cabling systems, providing Gigabit Ethernet speeds and bandwidth up to 250 MHz. Constructed with solid bare copper conductors (23 AWG) and a PVC jacket, it ensures durability and signal integrity. The cable features a rip cord and cross separator for easy installation and reduced crosstalk.

Advantages

This cable offers excellent value for large-scale network installations. Its UTP design minimizes electromagnetic interference, while the solid copper conductors provide superior conductivity over copper-clad alternatives. The easy pull box packaging simplifies deployment, and the CM fire rating ensures safety in plenum spaces.

Suitable for

• Structured cabling in offices, data centers, and commercial buildings
• Gigabit Ethernet networks (10/100/1000Base-T)
• PoE (Power over Ethernet) applications
• Horizontal and backbone cabling

Key specifications

• Cable Type: UTP (Unshielded Twisted Pair)
• Category: Cat6
• Length: 305 m (1000 ft)
• Conductor: Solid Bare Copper, 23 AWG
• Number of Pairs: 4
• Jacket Material: PVC
• Jacket Color: Grey
• Bandwidth: Up to 250 MHz
• Data Transfer Rate: Up to 1 Gbps
• Outer Diameter: Approx. 6.2 mm
• Operating Temperature: -20°C to +75°C
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801, RoHS
• Fire Rating: CM
• Voltage Rating: 300V

Recommendations

For optimal performance, use with Cat6 compatible connectors and patch panels. Ensure proper cable management to maintain bend radius and avoid signal degradation.
