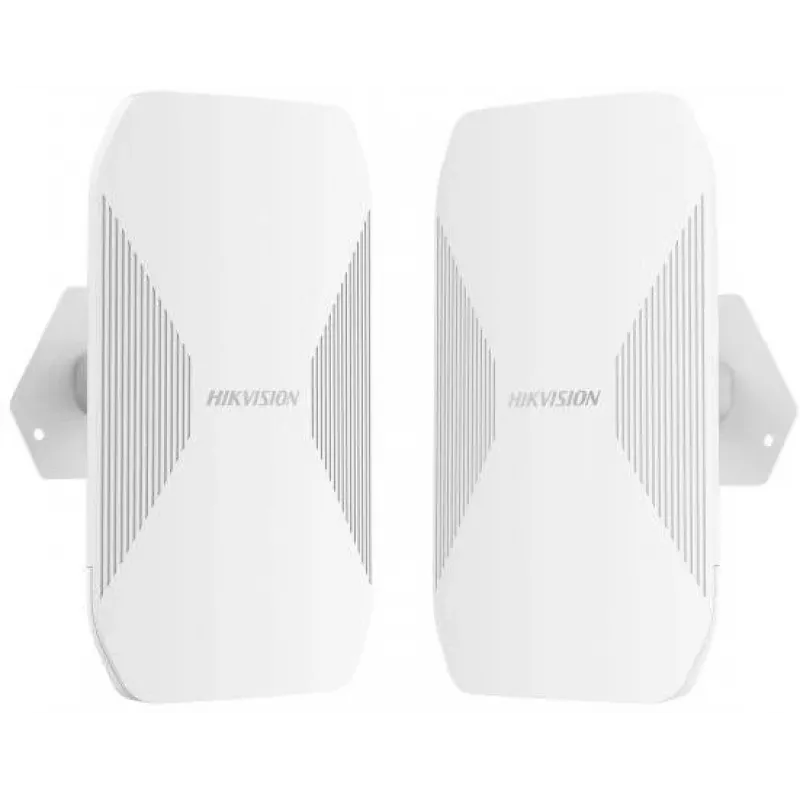

Hikvision DS-3WF5000-SI-5ACG/2P(O-STD) Kit de puente inalámbrico 5 GHz 2x2 MIMO 867 Mbps 5 km

The Hikvision DS-3WF5000-SI-5ACG/2P(O-STD) is a high-performance wireless bridge kit designed for long-range point-to-point and point-to-multipoint connectivity. Operating in the 5 GHz band with 2x2 MIMO technology, it delivers data rates up to 867 Mbps and supports transmission distances up to 5 km. The kit includes two weatherproof IP65-rated units, PoE adapters, and mounting kits, making it ideal for outdoor surveillance, campus networks, and industrial applications.

Advantages

Reliable and secure wireless connectivity with advanced encryption (WPA/WPA2-PSK, WPA/WPA2-Enterprise). Easy deployment with included PoE adapters and mounting hardware. Robust weatherproof design ensures operation in harsh environments.

Suitable for

• Point-to-point wireless links for video surveillance backhaul
• Extending network coverage across buildings or campuses
• Industrial IoT and remote site connectivity
• WISP (Wireless Internet Service Provider) deployments

Key specifications

• Wireless Standard: IEEE 802.11a/n/ac
• Frequency: 5.150 - 5.850 GHz
• Max Data Rate: 867 Mbps (5 GHz)
• Antenna: Built-in directional, 16 dBi gain
• MIMO: 2x2
• Ethernet: 1x Gigabit RJ-45
• PoE: 24V Passive PoE (adapter included)
• Range: Up to 5 km (line of sight)
• Operating Modes: AP, Station, Repeater, Router, WISP
• Security: WPA/WPA2-PSK, WPA/WPA2-Enterprise (AES/TKIP)
• Enclosure: IP65 weatherproof
• Operating Temperature: -30°C to 65°C
• Power Consumption: Max 7 W per unit
• Management: Web GUI, CLI, SNMP
• Chipset: Qualcomm Atheros
• Kit Contents: 2x bridge units, 2x PoE adapters, 2x mounting kits

Recommendations

For optimal performance, ensure clear line of sight between units. Use the included mounting kits for secure pole or wall installation. Configure via the web-based GUI for easy setup.
