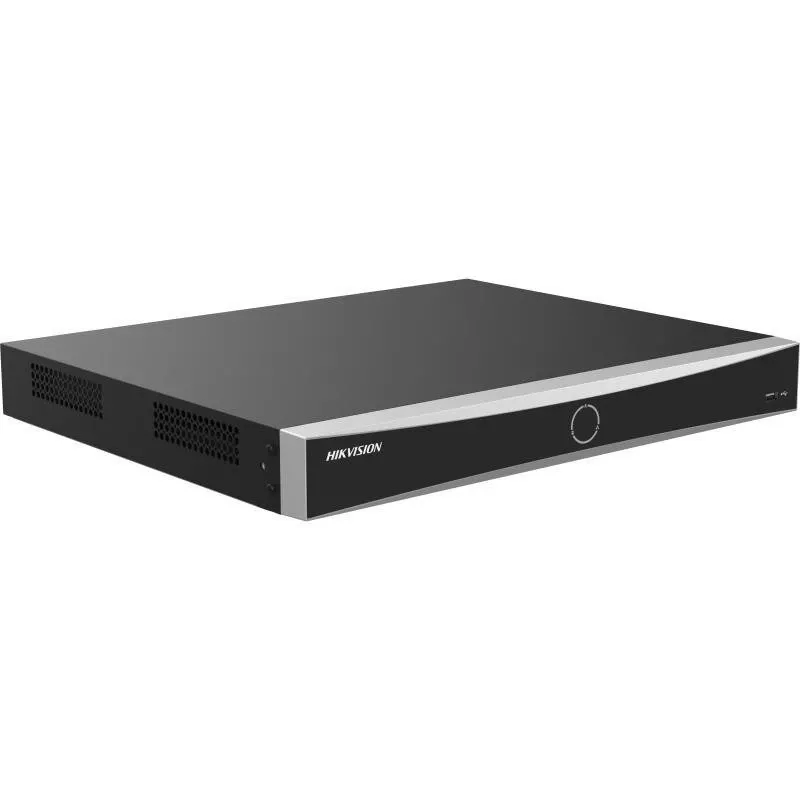

Hikvision DS-7616NXI-K2/16P/VPro NVR 4K de 16 canales con AcuSense y 16 puertos PoE

The Hikvision DS-7616NXI-K2/16P/VPro is a high-performance 16-channel network video recorder (NVR) designed for professional surveillance systems. It supports up to 12 MP resolution recording and features AcuSense technology for accurate human and vehicle detection, reducing false alarms. With 16 built-in PoE ports (IEEE 802.3af/at) and a total PoE budget of ≤200 W, it simplifies camera installation by providing both data and power over a single Ethernet cable. This NVR is ideal for medium to large-scale security applications such as retail, offices, warehouses, and residential complexes.

Advantages

AcuSense AI reduces nuisance alerts by filtering out irrelevant motion, ensuring you only receive notifications for people and vehicles. The 16 PoE ports eliminate the need for separate power supplies, cutting installation costs and clutter. Dual HDD bays support up to 10 TB each, offering ample storage for extended recording. HDMI 4K output delivers crisp video for live monitoring and playback.

Suitable for

• Retail stores and shopping centers
• Office buildings and corporate campuses
• Warehouses and logistics centers
• Residential communities and apartment buildings
• Educational institutions

Key specifications

• IP Video Input: 16 channels
• PoE Ports: 16 (RJ-45 10/100 Mbps, IEEE 802.3af/at)
• Max Incoming Bandwidth: 160 Mbps
• Max Recording Resolution: 12 MP
• HDD Bays: 2 SATA interfaces (up to 10 TB each)
• Video Output: 1x HDMI (up to 4K), 1x VGA (up to 1080p)
• Decoding: 1-ch@12 MP (30 fps) / 2-ch@8 MP (30 fps) / 4-ch@4 MP (30 fps) / 8-ch@1080p (30 fps)
• AI Features: AcuSense (Human/Vehicle Detection), Motion Detection 2.0
• Network Interface: 1x RJ-45 10/100/1000 Mbps Ethernet
• USB Interfaces: 1x USB 2.0 (front), 1x USB 3.0 (rear)
• Audio: 1-ch RCA input / 1-ch RCA output
• Alarm: 4 inputs / 1 output
• PoE Power Budget: ≤200 W
• Power Supply: 100 to 240 VAC, 50 to 60 Hz
• Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)

Recommendations

For optimal performance, pair this NVR with Hikvision AcuSense IP cameras. Use high-quality CAT5e or CAT6 cables for PoE connections. Consider adding a UPS to protect against power interruptions.
