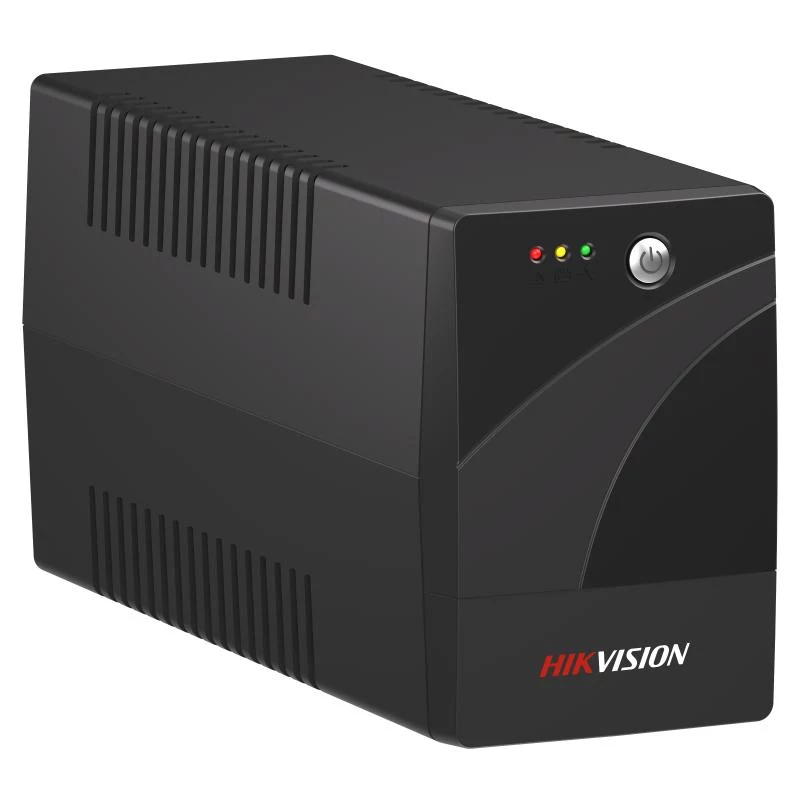

Hikvision DS-UPS600-R SAI line-interactive 600 VA

The Hikvision DS-UPS600-R is a reliable line-interactive uninterruptible power supply (UPS) designed to protect critical equipment from power outages, surges, and fluctuations. With a capacity of 600 VA / 360 W, it provides clean simulated sine wave output and automatic voltage regulation (AVR) to ensure stable power delivery. Ideal for network devices, security systems, and small office equipment.

Advantages

Line-interactive topology with AVR ensures stable output voltage without frequent battery use. Fast transfer time (2-6 ms typical) keeps connected devices running during outages. Compact tower design fits easily under a desk or in a server rack. LED indicators and audible alarms provide clear status updates.

Suitable for

• Network switches, routers, and modems
• Security cameras and DVRs/NVRs
• Point-of-sale systems
• Small office servers and workstations

Key specifications

• UPS Topology: Line-Interactive
• Apparent Power: 600 VA / 360 W
• Input Voltage: 220-240 VAC
• Output Voltage (AC Mode): 220-240 VAC
• Output Voltage (Battery Mode): 220-240 VAC ±10%
• Output Waveform (Battery Mode): Simulated Sine Wave
• Transfer Time: 2-6 ms (typical), 10 ms max
• Battery: 12V/7Ah Sealed Lead Acid, 1 battery
• Recharge Time: 4-6 hours to 90%
• Outlets: 2 x Universal
• Protection: Overload, Short Circuit, Overcharge, Over-discharge
• Indicators: LED (AC Mode, Battery Mode, Low Battery, Fault)
• Audible Alarms: Battery Mode, Low Battery, Overload, Fault
• Noise Level: < 40 dB
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 0-90% RH (non-condensing)

Recommendations

For optimal performance, connect only critical loads within the 360 W limit. Ensure proper ventilation and avoid overloading. Replace battery every 3-5 years depending on usage.
