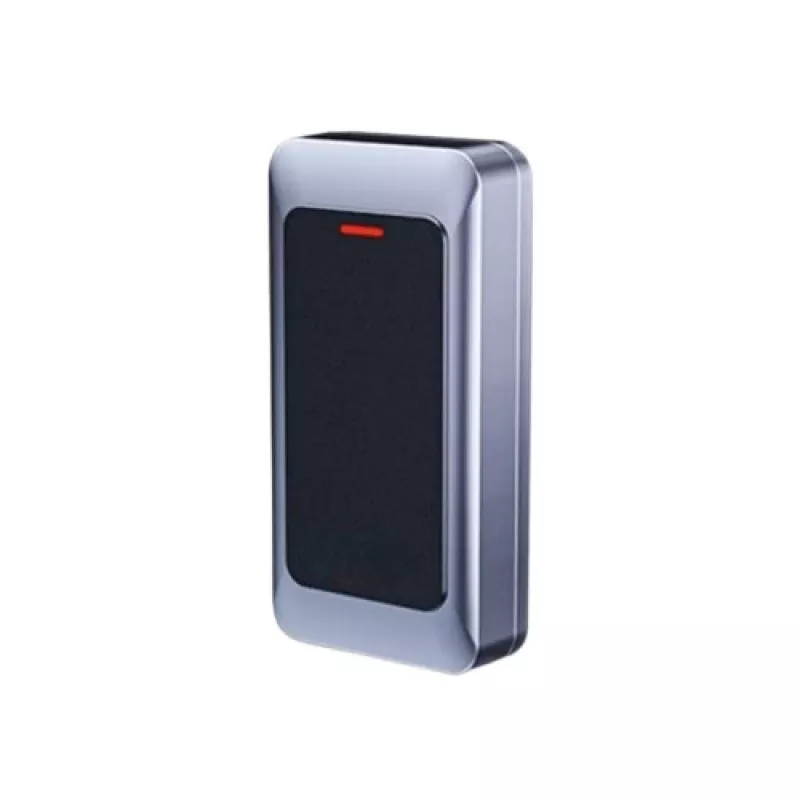

HISMART lector de tarjetas de proximidad EM/Mifare/HID - Wiegand 26/34 bits, IP65

At a busy office entrance or a secure server room, you need a card reader that recognizes every badge your staff carries. The HISMART TV993826 handles EM4100/EM4200, Mifare Classic/Plus/DESFire, and HID Prox credentials without skipping a beat. This multi-technology reader is a single, versatile device that simplifies access control in mixed-ID environments.

Key specifications

• Supported card technologies: EM4100/EM4200, Mifare Classic/Plus/DESFire, HID Prox
• Operating frequencies: 125 kHz (low frequency) and 13.56 MHz (high frequency)
• Read range: up to 8 cm at 125 kHz, up to 5 cm at 13.56 MHz
• Output interface: Wiegand 26-bit / 34-bit (auto-detect)
• Communication protocol: Wiegand (Data0, Data1)
• Power supply: 9-16V DC
• Current consumption: max 80 mA
• Visual indicator: dual-color LED (red/green)
• Audio indicator: integrated buzzer
• Material: ABS plastic
• Ingress protection: IP65 (dust-tight, protected against water jets)
• Operating temperature: -20°C to +60°C
• Operating humidity: 10% to 90% RH (non-condensing)
• Mounting type: surface mount (wall/mullion)
• Colour: black
• Cable length: 1.5 m (integrated)
• Certifications: CE, FCC compliant

Why choose it

This reader consolidates three major credential families into one robust housing. Facilities that are migrating from legacy 125 kHz prox cards to newer Mifare or DESFire smart cards can use the TV993826 during the transition, as it reads both legacy and modern credentials. The auto-detect Wiegand output simplifies installation and works with most access control panels.

Ideal use cases

• Office buildings with mixed badge populations
• Server rooms requiring multi-technology authentication
• Transitioning from legacy prox to smart card systems
• Outdoor or wet environments needing IP65 protection

Good to know

The TV993826 is surface-mounted and comes with an integrated 1.5 m cable for easy connection. Its ABS housing withstands harsh conditions, and the dual-color LED plus buzzer give clear user feedback. CE and FCC compliance ensure reliable operation in commercial settings.
