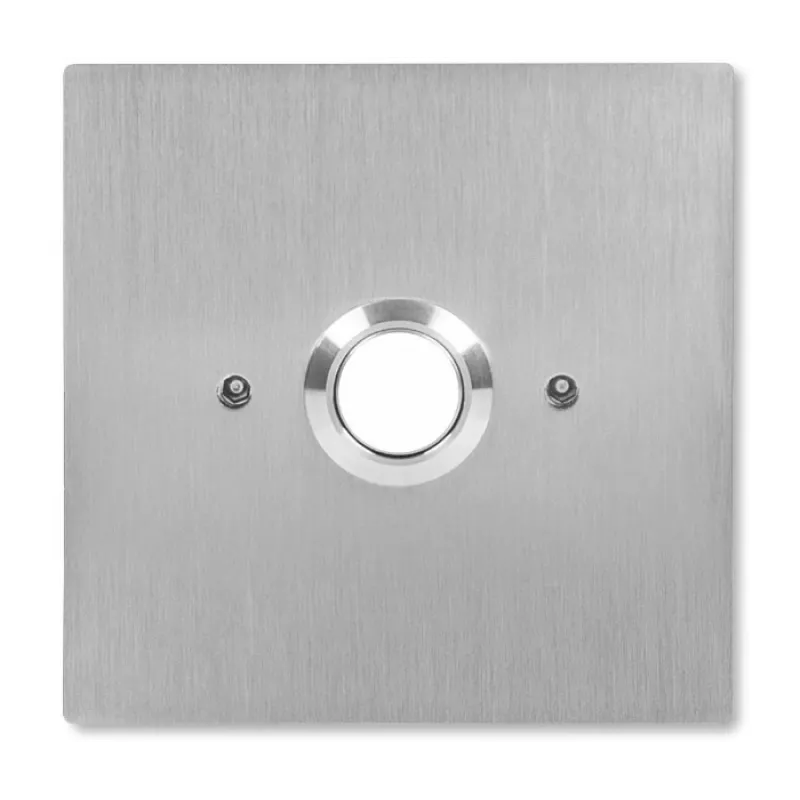

ACO INS-OB-60 pulsador de contacto de cierre iluminado, enrasado, acero inoxidable, para caja de instalación eléctrica O60

The ACO INS-OB-60 is a high-quality illuminated flush-mounted normally open (NO) output button designed for use with standard O60 electrical boxes. Crafted from durable stainless steel, this momentary push button features a green LED illumination for clear visual indication, making it ideal for access control systems, intercoms, and door automation applications.

Advantages

Robust stainless steel construction ensures long-lasting durability and a professional appearance. The green LED illumination provides easy identification in low-light conditions. Flush-mounted design offers a sleek, low-profile installation. Normally open (NO) contact configuration is suitable for momentary activation in access control systems.

Suitable for

• Access control systems
• Intercoms and door entry systems
• Door automation and release mechanisms
• Industrial and commercial push-button applications

Key specifications

• Product Type: Exit Button / Door Release Button
• Mounting Type: Flush-mounted
• Material: Stainless Steel
• Contact Type: Normally Open (NO)
• Illumination: Yes, LED
• Illumination Color: Green
• Button Type: Momentary Push Button
• Compatibility: Standard O60 Electrical Box (60mm diameter)
• Operating Voltage (LED): 12V DC
• Contact Rating: 1A @ 30V DC
• Mechanical Lifespan: >500,000 cycles
• Operating Temperature: -20°C to +50°C
• IP Rating: IP44
• Faceplate Dimensions: 80 x 80 mm
• Color: Silver (Faceplate), Black (Button)
• Connection Type: Screw Terminals

Recommendations

For optimal performance, ensure compatibility with a standard O60 electrical box and use with a 12V DC power supply for the LED. Suitable for indoor or sheltered outdoor use (IP44).
