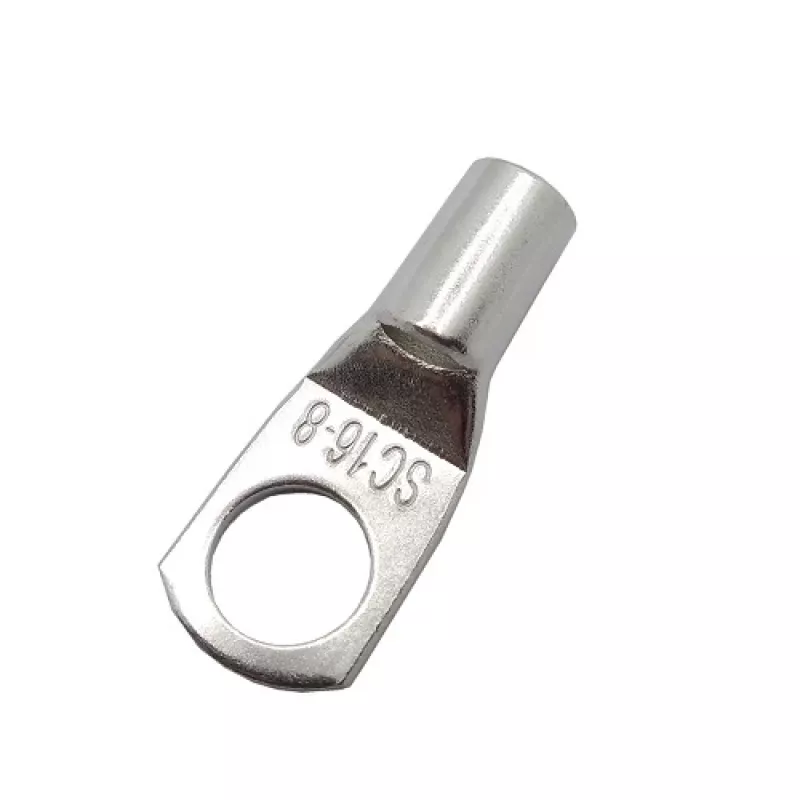

Terminal de anillo crimpado, cobre, 16mm² para cable, 10 uds.

This set of 10 crimp ring terminals is made from high-purity electrolytic copper with a tin-plated finish, designed for secure and reliable connections on 16mm² cables. Each terminal features an inspection hole to verify correct cable insertion, ensuring proper installation every time. The fully annealed construction provides optimal resistance and durability for low-voltage wiring applications.

Key features

• Cable cross-section: 16.0 mm²
• Material: copper ≥99.9% with tin-plated surface
• Suitable bolt diameter: 8 mm
• Connection angle: 180° (horizontal)
• Terminal length: 30.0 mm; depth: 11.0 mm
• Inner diameter: 5.8 mm; outer diameter: 7.5 mm
• Includes inspection hole for cable position check
