ILME Carcasa base High Profile TMAP 16.32 Tamaño 77.27 Tipo T con 2 abrazaderas y 1 entrada lateral M32

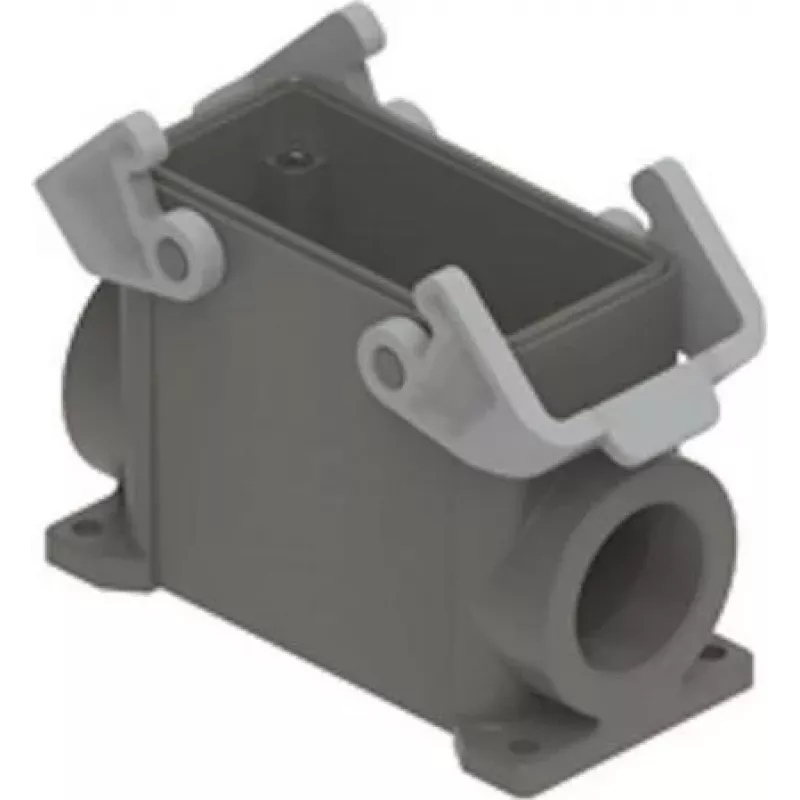

Industrial heavy-duty connector base housing from ILME, high-profile T-Type with two stainless steel levers and one side M32 cable entry, designed for size 16.32 inserts (77.27). The thermoplastic housing in grey RAL 7032 offers a robust, surface-mount solution for demanding applications.

Advantages

High-profile design accommodates larger wiring space. Two stainless steel levers ensure secure locking. Side cable entry with M32 thread allows easy cable routing. Thermoplastic material provides excellent insulation and resistance to environmental factors.

Suitable for

• Industrial machinery and equipment
• Heavy-duty electrical connections
• Applications requiring high mechanical strength and IP65 protection

Key specifications

• Housing type: Base housing, high profile
• Series: T-Type
• Material: Thermoplastic (plastic), grey RAL 7032
• Locking system: 2 levers, stainless steel
• Cable entry: 1 side entry, M32 thread
• Insert size compatibility: 16.32 (77.27)
• Protection rating: IP65
• Operating temperature range: -40°C to +125°C
• Flammability rating: UL 94 V-0
• Gasket material: NBR
• Mounting type: Surface mount
• RoHS compliance: Yes

Recommendations

Pair with ILME 16.32 inserts and appropriate M32 cable glands for a complete, reliable connection system in industrial environments.
