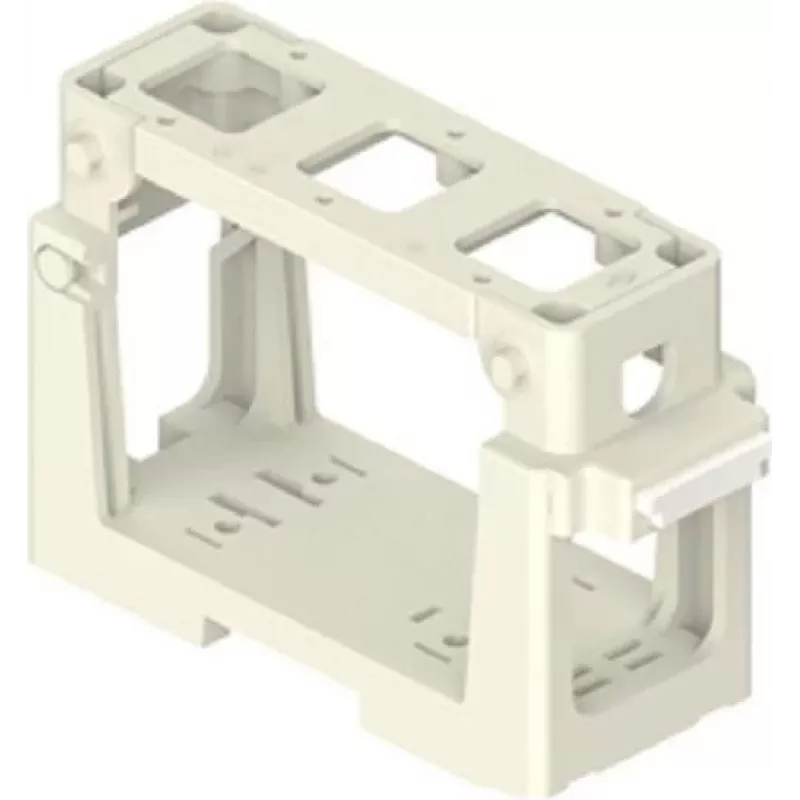

ILME COB03/3BC soporte de módulo para 3 insertos de 21,21 mm, termoplástico, negro

Module holder from the ILME COB series, designed to accommodate three modular inserts with a width of 21.21 mm each. Its thermoplastic construction provides a robust and lightweight frame for industrial heavy-duty connector applications.

Advantages

Made from thermoplastic with a flammability rating of UL 94 V-0, this holder ensures reliable performance in demanding environments. The frame mount design allows secure installation, and the black colour offers a neutral appearance for various setups.

Suitable for

• Industrial heavy-duty connectors
• ILME COB series modular inserts
• Applications requiring three 21.21 mm modules

Key specifications

• Product type: Module holder
• Series: ILME COB
• Number of modules: 3
• Module width compatibility: 21.21 mm
• Material: Thermoplastic
• Mounting type: Frame mount
• Colour: Black
• Operating temperature range: -40°C to +125°C
• Flammability rating: UL 94 V-0
• RoHS compliance: Yes
• REACH compliance: Yes
• Dimensions (L x W x H): 70 x 27 x 10 mm
• Weight: 8 g

Recommendations

Verify compatibility with your specific inserts before ordering. This holder is intended for use with ILME COB series modular inserts of 21.21 mm width.
