InLine 76660U Tarjeta de interfaz SATA interna M.2 a SATA 6 Gbit/s

Multifunctional M.2 to SATA converter cardfor the connection of up to four SATA drives
M.2 Key B+M interfacefor the operation of an M.2 SATA SSD
RAID support (RAID 0, RAID 1, RAID 10, HyperDuo)for optimum data security and performance
Hot Plug & Hot Swapfor the installation and removal of drives during operation
Port Multiplier supportfor parallel operation of multiple drives on one SATA port
No additional drivers required– full support by the operating system

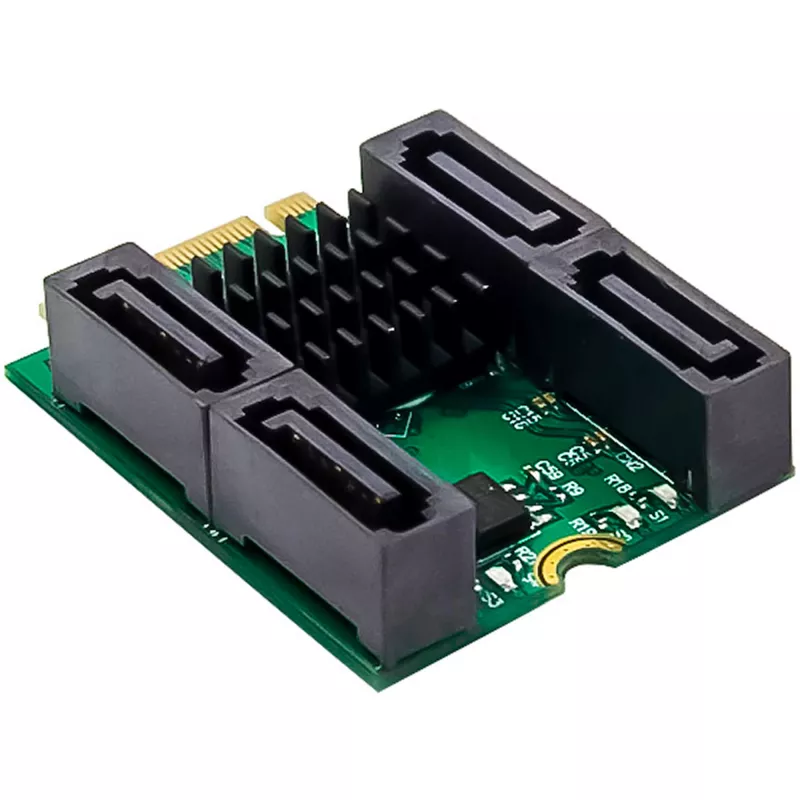

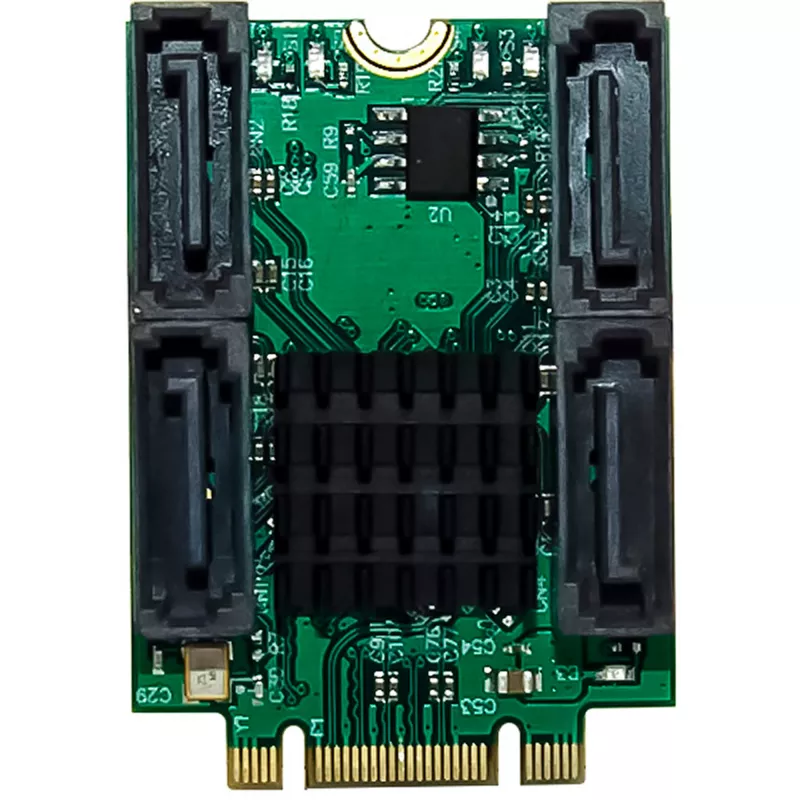

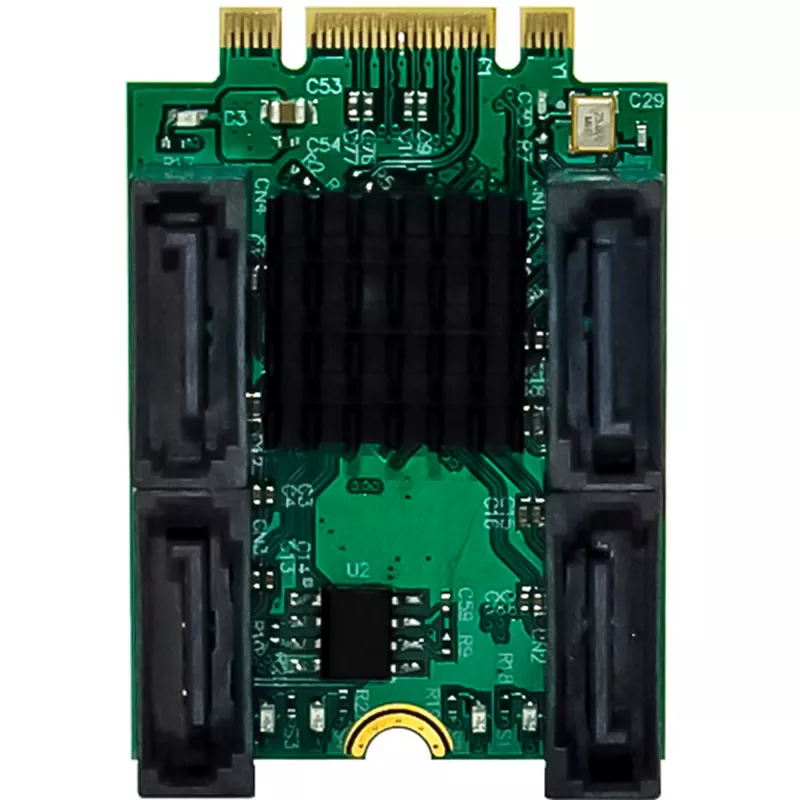

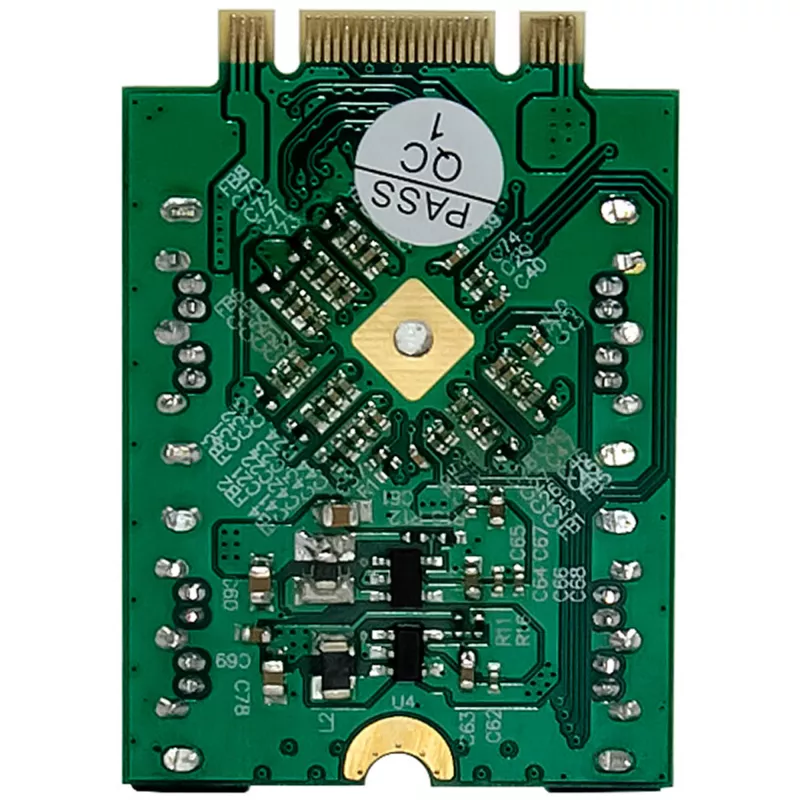

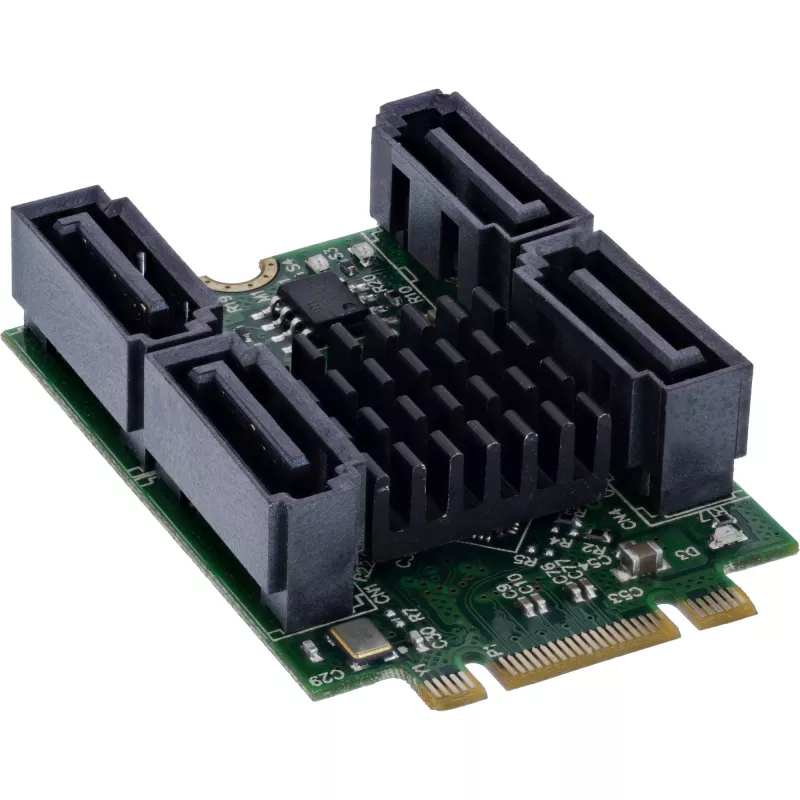

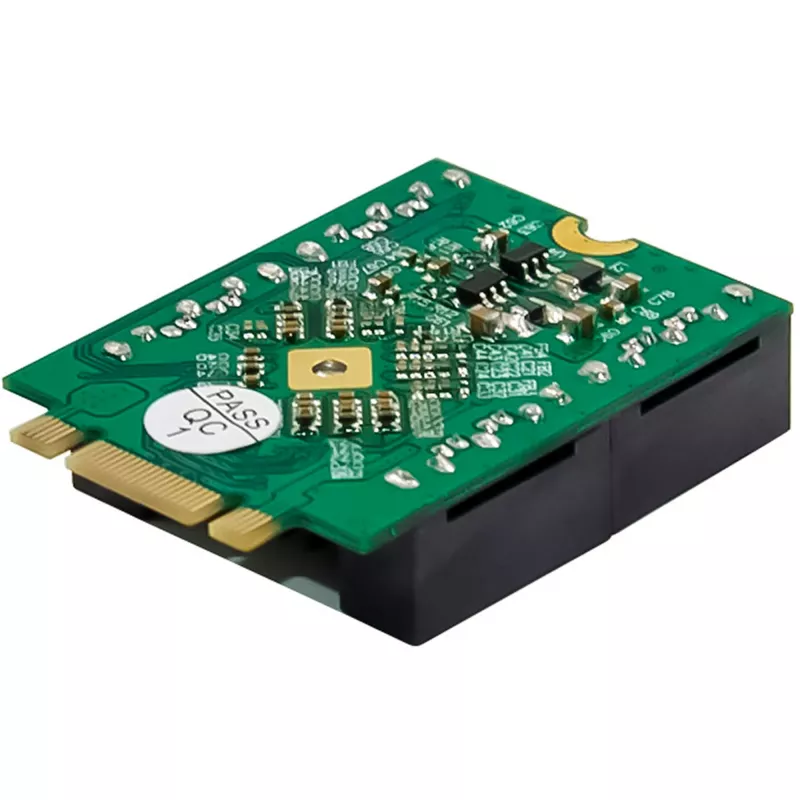

The InLine® interface card M.2 Key B+M to 4x SATA connectoris a high-performance storage solutionthat enables the expansion of SATA storage devices. It allows the operation of an M.2 SATA SSD(Key B+M) and also provides four SATA 6 Gb/s portsfor additional storage devices.
Thanks to RAID support (RAID 0, RAID 1, RAID 10, HyperDuo), the card can be used for maximum speed, reliability or automatic SSD/HDD caching combinations. The Hot Plug and Hot Swapfunctionality allows drives to be swapped during operationwithout having to shut down the system.
The M.2 SSD is powered directly via the M.2 slot, while the SATA ports are connected via external cables. LED indicatorsshow the operating status of the ports, and support for Port Multiplier technologyallows multiple drives to operate simultaneously on a single SATA port.
Technical data:

Bus type & interface: M.2 PCIe x2 interface (dual-thread, B, M and B+M key)
Controller/chipset: Marvell 88SE9230
Connection – interfaces:
1 x M.2 slot (Key B+M) for one M.2 SATA SSD
4 x SATA GEN III ports (6 Gb/s per port)
4 x 7-pin SATA connectors for the connection with M.2 SATA/mSATA SSDs to the mainboard

Compatible modules:
M.2 SSDs (Key B, Key M or Key B+M) in the sizes 2230, 2242, 2260, 2280
mSATA SSDs (half or full size)

Data rates:
SATA ports: Up to 6 Gb/s per channel
M.2 interface: Up to 10 Gb/s total throughput (via 2x PCIe lanes)

Dimensions: 30 mm x 42 mm (M.2 board)

Operating conditions:

Operating temperature: -40 °C to +85 °C

Functions:

Hot Plug & Hot Swap for drive replacement during operation
Native Command Queue (NCQ) for optimized data processing
Port Multiplier support for multiple drives per SATA port
RAID modes: RAID 0 (striping), RAID 1 (mirroring), RAID 10 (stripe of mirrors), HyperDuo (automatic SSD/HDD caching)
Automatic detection of the lane configuration during boot
Onboard LED indicators to display the port activities
Power supply for the M.2 SSD is provided directly via the M.2 slot
SATA ports must be connected via external cables
No additional driver required

System requirements:Hardware:

PC with at least one free M.2 slot (B, M or B+M that supports PCIe)
Mainboard with free SATA ports for data transfer
One available PCIe connector for the installation of the adapter

Operating system support:

Windows: 11, 10, 8, 7, Vista, XP
Windows Server: 2003, 2008
Linux: from kernel 2.6

Scope of delivery:

1 x InLine® interface card M.2 Key B+M to 4x SATA connector, RAID, HyperDuo

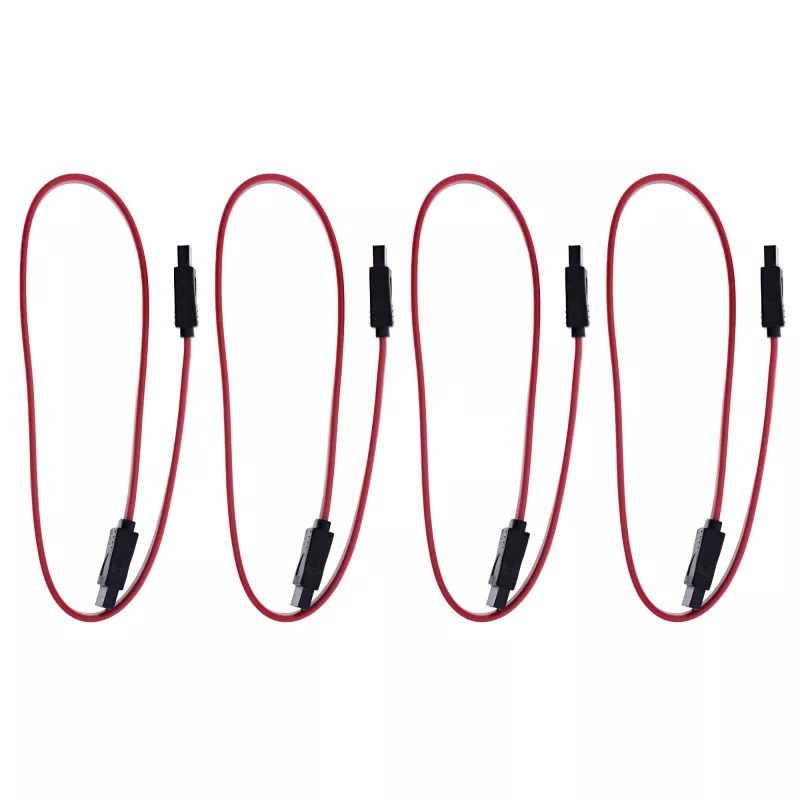

4 x SATA cable
1 x instruction manual (German/English)
Operating temperature: 0° C – 55° C
Storage temperature: -40° C – 70° C
Humidity: 10% - 90% non-condensing

InLine 76660U. Host interface: M.2, Output interface: SATA, Host interface gender: Male. Country of origin: Taiwan. Chipset: Marvell 88SE9230, Data transfer rate (max): 6 Gbit/s, RAID levels: 0, 1, 10. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista, Windows XP, Linux operating systems supported: Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linux Kernel..., Server operating systems supported: Windows Server 2003, Windows Server 2008. Width: 95 mm, Depth: 52 mm, Weight: 58 g

How to use

Insert the interface card into a compatible M.2 slot (Key B, M or B+M supporting PCIe) on the mainboard. Mount one M.2 SATA SSD into the card's M.2 slot and connect additional SATA drives to the four 7-pin SATA connectors using the supplied SATA cables. Connect the SATA cables to free SATA ports on the mainboard. Ensure the M.2 SSD receives power from the M.2 slot and that SATA ports are cabled externally. Configure RAID settings in the system or controller according to requirements; no additional drivers are required for supported Windows and Linux versions.

Recommendations

For reliable operation, use a mainboard M.2 slot that supports PCIe lanes and ensure available SATA ports for the external connections. Verify RAID configuration and backup critical data before creating arrays. Use compatible M.2 SATA SSD sizes (2230–2280) or mSATA modules as specified and observe the operating temperature range.
