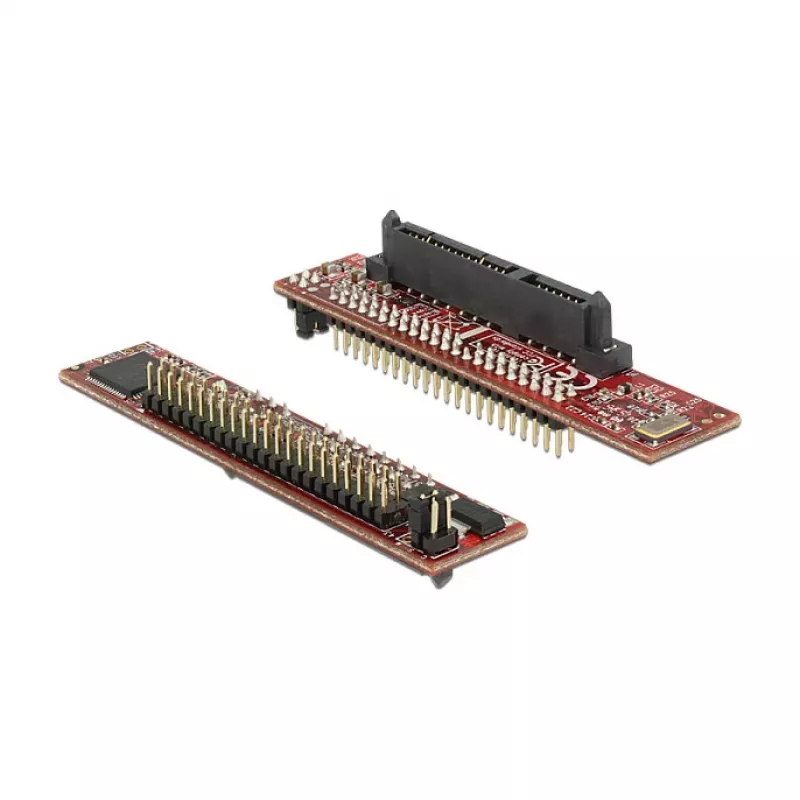

Tarjeta de interfaz DeLOCK 62686 interna IDE/ATA

The DeLOCK 62686 Internal IDE/ATA interface card allows connection of IDE/ATA devices to a SATA host. It supports a maximum data transfer rate of 3 Gbit/s and is designed for internal installation with compact dimensions (16 mm x 69 mm x 14 mm). The card is intended for integrating legacy IDE/ATA devices into systems with SATA controllers or for upgrading older systems.

Advantages

The interface card provides compatibility between SATA hosts and IDE/ATA devices, supporting a transfer rate up to 3 Gbit/s. Its internal design and small form factor enable easy installation into a variety of systems. Manufactured by DELOCK, the adapter follows standard IDE/ATA and SATA interface conventions for reliable operation.

Suitable for

• Connecting IDE/ATA hard drives or optical drives to a SATA controller
• Upgrading older PCs that need legacy device support
• Integrating legacy storage into modern systems for data transfer or retrieval

Key specifications

• Brand: DELOCK
• Model / MPN: 62686
• EAN: 4043619626861
• Host interface: SATA
• Output interface: IDE/ATA (44-pin)
• Maximum data transfer rate: 3 Gbit/s
• Installation: Internal
• Dimensions (W x D x H): 16 mm x 69 mm x 14 mm

How to use

Install the DeLOCK 62686 into the system's internal SATA connection following the motherboard or chassis guidelines. Connect the IDE/ATA device using the 44-pin IDE cable to the card's output interface. Ensure power is supplied to the IDE/ATA device from the system power supply. After physical installation, verify device recognition in the system BIOS/UEFI or operating system and install any required drivers if necessary.

Recommendations

For stable operation, use compatible 44-pin IDE cables and confirm that the SATA host controller supports the required transfer mode. Handle the card and connectors with anti-static precautions and ensure the system is powered off before connecting or disconnecting devices.
