Intellinet Armario de pared 22U 19 pulgadas negro RAL 9005, 600x600x1080 mm 713603

This 22U wall-mount cabinet provides 19-inch rack space in a black RAL 9005 steel enclosure, with external dimensions of 600 × 600 × 1080 mm and a maximum load capacity of 60 kg.

Overview

The Intellinet 713603 is a lockable wall-mount cabinet designed for structured cabling and network equipment. It features a tempered glass front door, removable and lockable side panels, and adjustable mounting rails for flexible equipment depth.

What stands out

• 22U rack capacity for servers, switches, and patch panels
• 19-inch standard width (48.3 cm)
• Black RAL 9005 powder-coated steel construction
• Tempered glass front door with lock

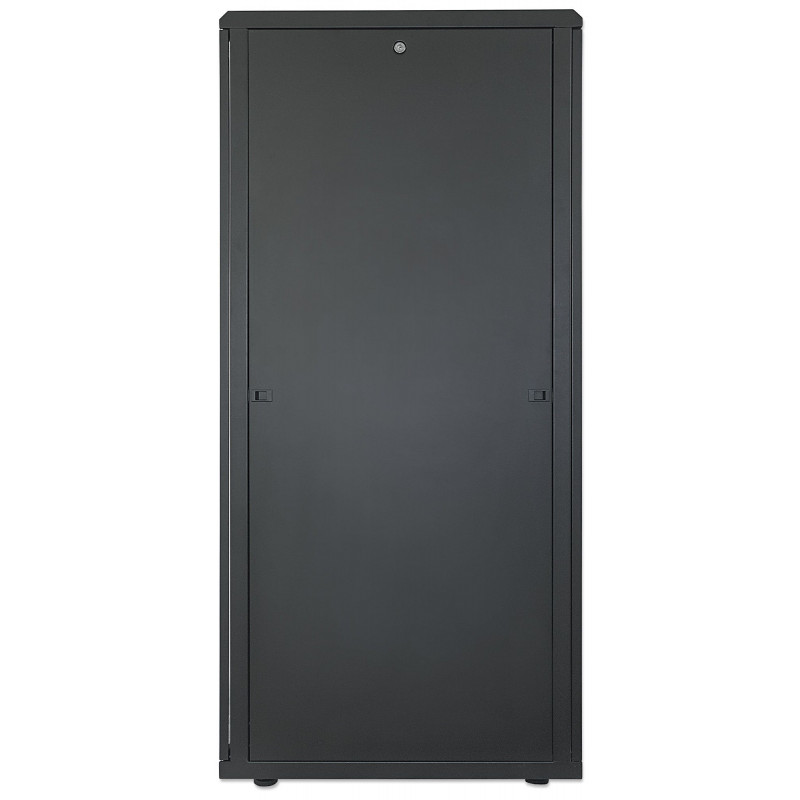

• Removable, lockable side panels for easy access
• Cable entry from top and bottom
• Passive ventilation, fan-ready design

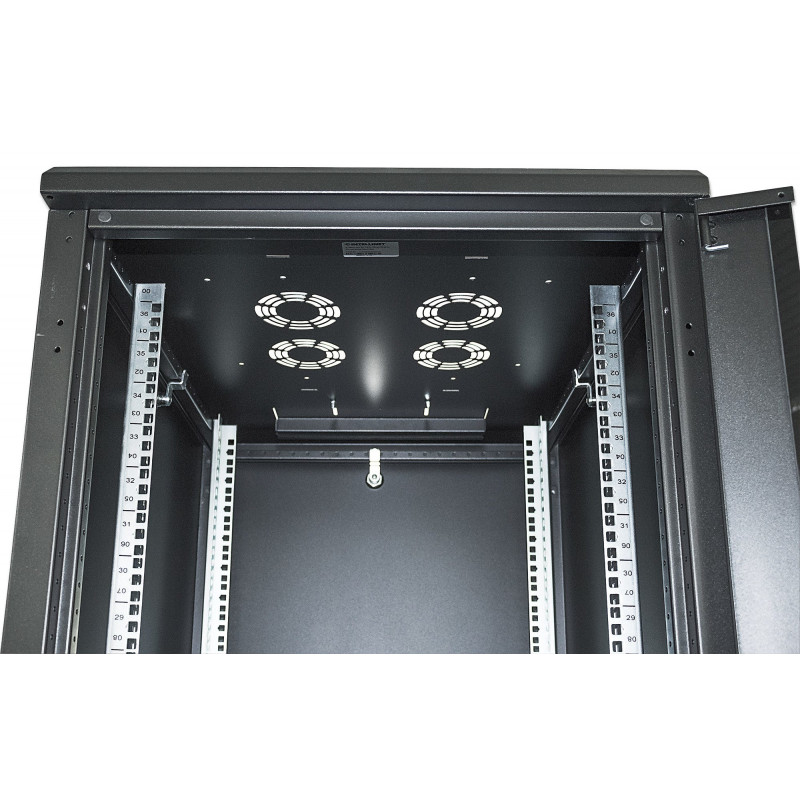

• Adjustable depth mounting rails
• Flat-pack delivery, self-assembly required

Technical details

• Rack capacity: 22U
• Rack type: Wall-mount cabinet
• Rack width: 19" (48.3 cm)
• External dimensions (W × D × H): 600 × 600 × 1080 mm
• Colour: Black (RAL 9005)
• Material: Steel
• Front door: Tempered glass, lockable
• Side panels: Removable, lockable
• Maximum load capacity: 60 kg
• Cable entry: Top and bottom
• Ventilation: Passive, fan-ready
• Mounting rails: Adjustable depth
• Assembly: Flat-pack (self-assembly required)

Our verdict

A robust, lockable wall-mount cabinet for 19-inch equipment, offering 22U of space and flexible cable management in a professional black finish.
