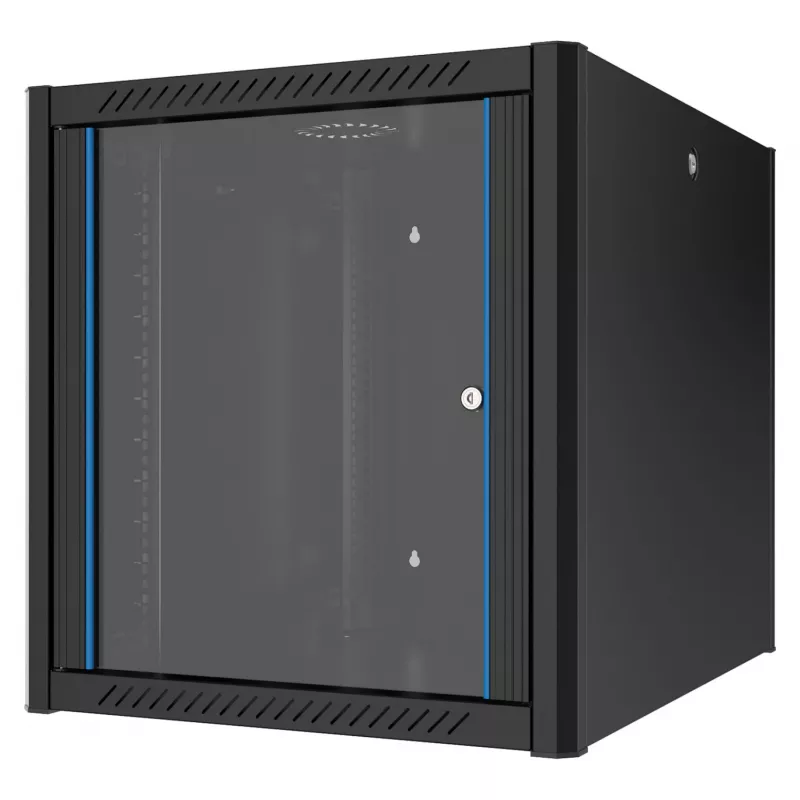

EFB Elektronik armario de pared 19" 16HE, profundidad 800 mm, premontado, RAL 9005

This EFB Elektronik wall-mounted enclosure provides a robust 19-inch rack solution for network and IT installations, offering 16 height units in a space-saving design. With an 800 mm depth, it comfortably houses a wide range of active and passive components, from network switches and patch panels to compact servers. The enclosure arrives fully pre-assembled, saving valuable installation time and ensuring immediate readiness.

Advantages

Designed for maximum flexibility, this wall-mount cabinet features adjustable 19-inch mounting rails at both the front and rear, allowing precise positioning of equipment. The tempered safety glass door with lock provides secure yet transparent access, while the side panels are also removable and lockable for managing installations. Its robust steel construction, finished with powder coating, delivers durability and a professional appearance. Integrated grounding and pre-punched cable entry points in the top and bottom simplify cable management and electrical safety.

Suitable for

• Network cabinets and server rooms with limited floor space
• Wall-mounted distribution points in commercial and industrial settings
• Housing network switches, routers, patch panels and small servers

Key specifications

• Rack units: 16U
• Mounting width: 19 inch
• External dimensions: 600 x 800 x 800 mm (W x H x D)
• Colour: RAL 9005 (Jet Black)
• Material: Steel sheet, powder-coated

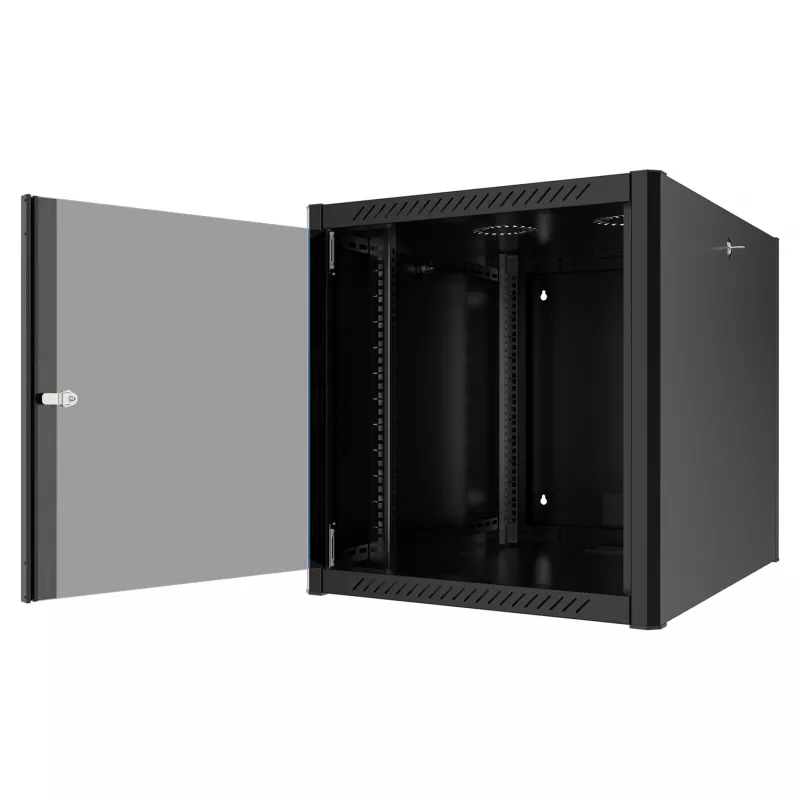

• Front door: Tempered safety glass with lock
• Side panels: Removable, lockable
• Cable entry: Top and bottom, pre-punched
• Ventilation: Prepared for fan unit installation (roof)
• Load capacity: Up to 60 kg
• Protection class: IP20
• Assembly: Pre-assembled

Recommendations

For optimal airflow and reliable operation, consider installing active cooling if you plan to house high-power equipment. The enclosure is intended for indoor use and should be mounted on a stable wall capable of supporting the total weight.
