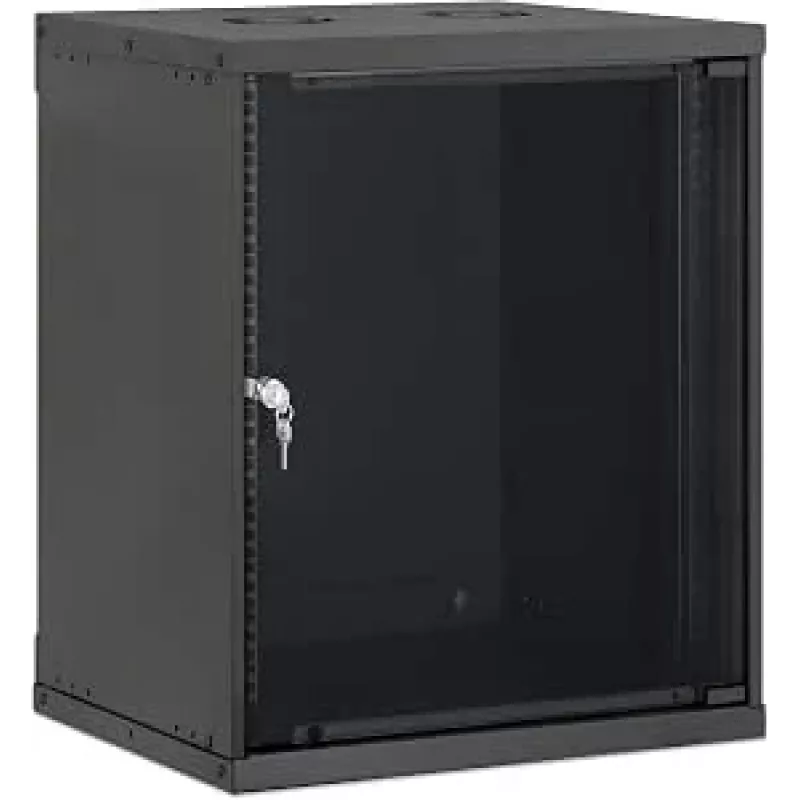

Intellinet Rack de pared 19 pulgadas, Basic Line, 12U, 400 mm de profundidad, Negro RAL 9005 (716697)

This 19-inch wall-mount rack cabinet from Intellinet's Basic Line offers a versatile and economical enclosure for network equipment. Its flatpack design allows for easy transport and assembly, and it can be either wall-mounted or used freestanding with optional casters.

Advantages

The cabinet features a tempered glass front door with lock and removable, lockable side panels, ensuring secure access to your equipment. Passive ventilation slots promote airflow, and top and bottom cable entry points simplify cable management. Constructed from SPCC cold rolled steel, it provides a static load capacity of 60 kg.

Suitable for

• Small to medium business network installations
• Wall-mounted network equipment in offices, retail, or educational environments
• Secure housing for switches, patch panels, and other 19-inch devices

Key specifications

• Rack capacity: 12U
• External dimensions: 600 mm width, 635 mm height, 400 mm depth
• Internal usable depth: approximately 350 mm
• Material: SPCC cold rolled steel
• Colour: Black (RAL 9005)
• Front door: Tempered glass with lock
• Side panels: Removable, lockable
• Mounting options: Wall mount, freestanding with optional casters
• Construction: Flatpack (disassembled)
• Static load capacity: 60 kg
• Cable entry: Top and bottom
• Ventilation: Passive ventilation slots
• Protection rating: IP20
• Included accessories: 2x keys, mounting hardware

Recommendations

Ideal for installations where floor space is limited and a secure, lockable enclosure is required for network equipment.
