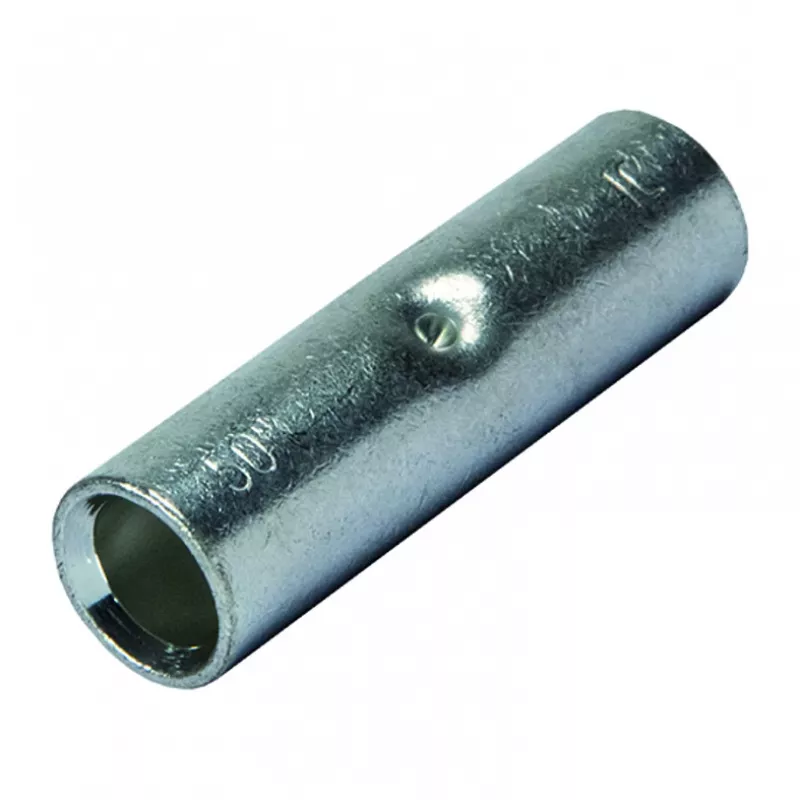

Intercable ICR25V Conector de empalme 25qmm con tope central, estañado, serie R conectores de empalme

For demanding cable splicing tasks, the Intercable ICR25V Stoverbinder stands apart with its internal center stop—a precision feature that guarantees identical insertion depth on both sides, eliminating guesswork and ensuring a perfectly symmetrical crimp every time. This 25 mm² butt connector from the R-Series is crafted from high-purity E-Cu copper and finished with a uniform tin plating, delivering low contact resistance, excellent corrosion protection, and long-term reliability in harsh electrical environments. Unlike generic uninsulated connectors, the ICR25V is engineered for heavy-duty applications where consistent performance and mechanical strength are non-negotiable.

Highlights

• Internal center stop for precise conductor alignment and repeatable crimps
• 25 mm² cross-section supports high-current power distribution and industrial wiring
• Tin-plated E-Cu copper body resists oxidation and ensures stable conductivity
• Uninsulated design allows custom insulation after crimping (heat shrink, tape, etc.)
• R-Series construction meets stringent mechanical and electrical requirements
• RoHS compliant and suitable for temperatures from -40 °C to +125 °C

In daily use

Installers and panel builders will appreciate how the center stop simplifies the crimping process: strip both conductors, insert until they meet the internal barrier, and apply a standard hexagonal or indent crimp. The result is a gas-tight connection that withstands vibration, thermal cycling, and high current loads. The connector's 45 mm length and 7.3 mm inner diameter accommodate stranded or solid copper conductors up to 25 mm², while the 10 mm outer diameter fits most professional crimping dies. After crimping, apply insulation as required by your application—heat shrink tubing, insulating tape, or a dedicated insulating cap. The tin-plated surface also facilitates soldering if a soldered joint is preferred. With a voltage rating up to 1000 V when properly insulated, this connector is ideal for low-voltage power distribution, renewable energy systems, automotive, and heavy machinery.

Full specifications

• Brand: Intercable Tools GmbH
• Model: ICR25V
• MPN: 181082
• EAN: 8014212192912
• Connector type: Butt connector
• Cable cross-section: 25 mm²
• Conductor material: Copper (E-Cu)
• Surface finish: Tin-plated
• Insulation: Uninsulated
• Connection method: Crimp
• Feature: Internal center stop
• Series: R-Series
• Length: 45 mm
• Outer diameter: 10 mm
• Inner diameter (crimp barrel): 7.3 mm
• Max. operating temperature: +125 °C
• Min. operating temperature: -40 °C
• Voltage rating: Up to 1000 V (when properly insulated)
• Application: Electrical cable splicing
• Compatibility: Stranded and solid copper conductors
• RoHS compliance: Yes

Final note

When consistent, high-quality splices are critical, the Intercable ICR25V delivers the precision and durability professionals demand. Its center stop feature alone sets it apart from standard butt connectors, reducing errors and improving connection integrity in every crimp.
