Interruptor de proximidad inductivo sin contacto para iluminación LED ORNO OR-CR-245, negro

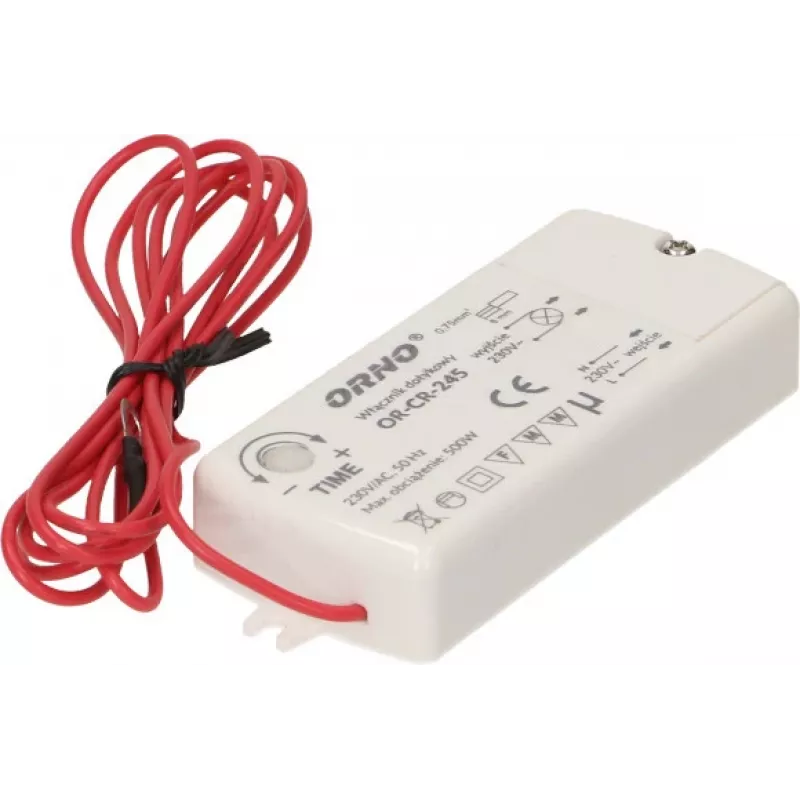

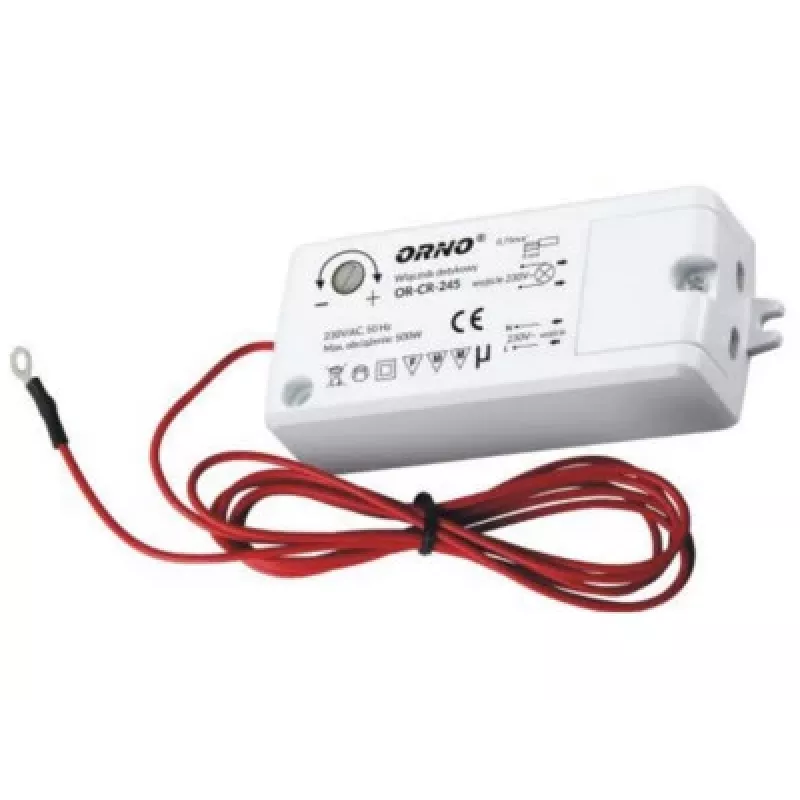

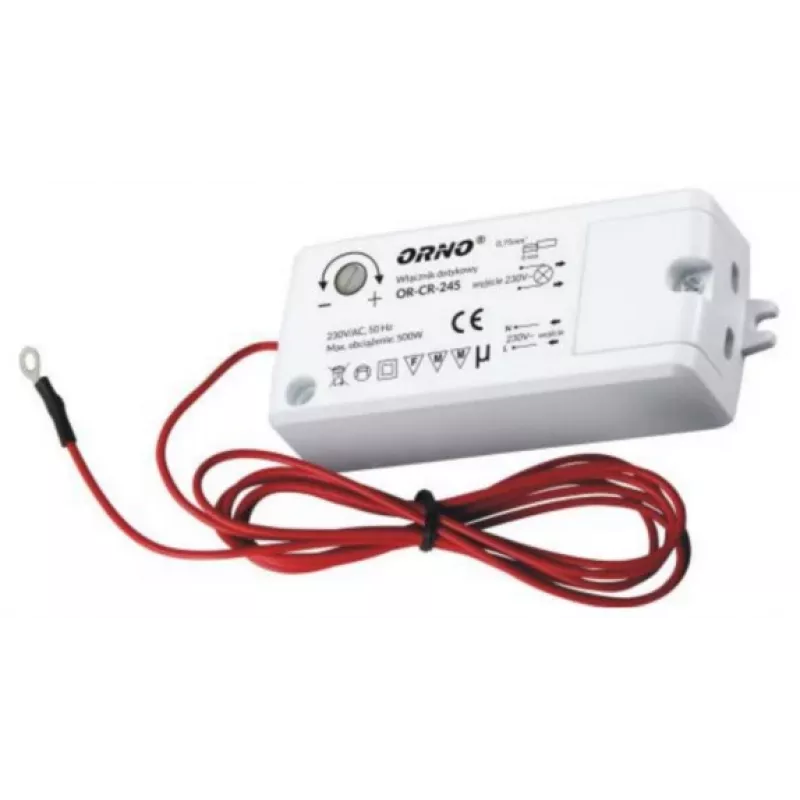

The ORNO OR-CR-245 is a touchless inductive proximity switch designed for convenient ON/OFF control of LED lighting. Ideal for furniture, cabinets, and display lighting, this sensor activates by simply waving a hand within 5 cm of the sensor head, enabling hygienic and effortless operation without physical contact.

Advantages

Touchless activation eliminates wear and tear, reduces the spread of germs, and provides a modern, sleek interface. The compact sensor can be installed behind non-metallic surfaces (e.g., wood, glass, plastic) for a hidden, flush appearance. With a wide operating voltage range (12-24V DC) and support for up to 72W (24V) LED loads, it is versatile for various low-voltage lighting projects.

Suitable for

• Under-cabinet and shelf lighting
• Display cases and showcases
• Wardrobe and closet lighting
• Kitchen and bathroom accent lighting
• Any LED strip or fixture requiring touchless control

Key specifications

• Sensor Type: Inductive Proximity (Touchless)
• Operating Voltage: 12-24V DC
• Max Load Power: 36W (12V) / 72W (24V)
• Max Load Current: 3A
• Switching Function: ON/OFF
• Detection Range: Up to 5 cm
• Sensor Head Diameter: 15 mm
• Mounting Hole Diameter: 15 mm
• Control Module Dimensions: 40 x 10 x 10 mm
• Material: Plastic
• Colour: Black
• Connection: Bare Wire (Input/Output), approx. 15 cm each
• Operating Temperature: -20°C to +50°C

Recommendations

For best performance, mount the sensor head behind a non-metallic surface up to 5 mm thick. Ensure the power supply matches the voltage and current requirements. Suitable for indoor use only.
