Interruptor inteligente Rutenbeck 700802610

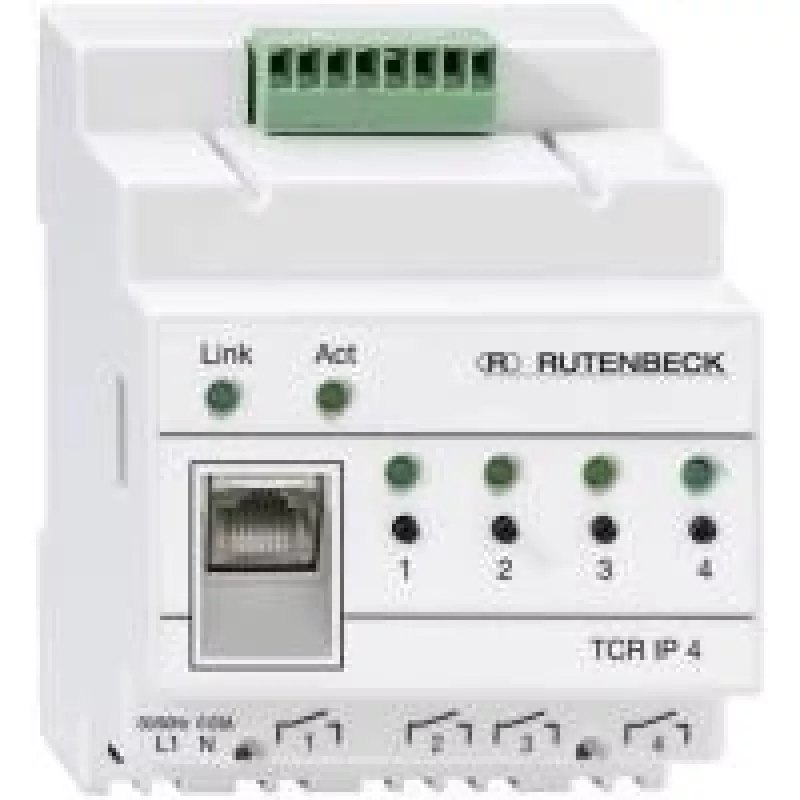

The Rutenbeck 700802610 is a P-switching device for DIN-rail mounting that provides four switching outputs and is designed for integration into TCP/IP networks. It accepts an AC input voltage of 100–240 V at 50–60 Hz, has a compact enclosure with dimensions 90 × 72 × 65 mm and an IP20 protection rating for indoor installation. The housing colour is light grey (similar to RAL 7035), and the unit is intended for wired connectivity in electrical installations.

Advantages

The device supports remote switching via TCP/IP, offers four independent outputs for controlling loads or circuits, and fits standard DIN-rail panels thanks to its compact footprint. Its wide input voltage range (100–240 V) and standard frequency compatibility (50–60 Hz) make it suitable for varied mains supplies. The IP20 rating indicates suitability for protected indoor environments.

Suitable for

Key specifications

How to use

Mount the unit on a standard DIN rail inside a suitable indoor distribution enclosure. Connect the AC supply (100–240 V, 50–60 Hz) to the designated input terminals and wire the loads to the four switching outputs following local wiring regulations. Integrate the device into the local TCP/IP network using the wired network interface and configure switching parameters via the vendor or system controller interface. Ensure all connections are made with the power disconnected and verified by a qualified electrician.

Recommendations

Use the switch in dry, indoor environments compatible with IP20 protection. Do not expose the device to moisture or outdoor conditions. Verify compatibility of connected loads with the output ratings and consult Rutenbeck documentation or a qualified installer for network configuration and safe installation practices.
