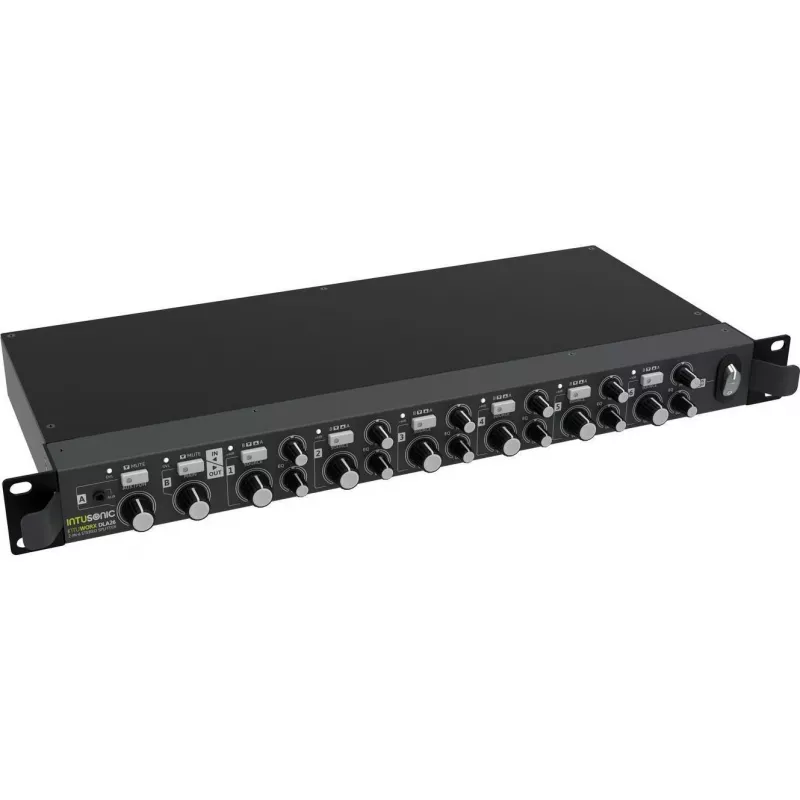

INTUSONIC DLA26 Distribuidor de zonas 2-IN-6 (12604177)

Managing audio distribution across multiple zones can be a challenge, especially when you need to route two independent sources to six different areas without signal degradation. The INTUSONIC DLA26 Zone Distributor 2-IN-6 solves this by providing a reliable, rack-mountable solution for splitting and controlling audio signals in commercial installations.

Who is it for

This zone distributor is ideal for installers, system integrators, and venue operators who need to distribute audio from two sources to up to six zones, such as in restaurants, bars, retail spaces, or conference centers. It is also suitable for houses of worship, schools, and other facilities requiring flexible audio routing.

Main features

• 2 balanced XLR inputs, accepting stereo L/R or mono sum signals
• 6 balanced XLR outputs, each configurable for stereo L/R or mono sum
• Independent input level control for each of the two input channels
• Independent output level control for each of the six output zones
• Per-output input selection: choose Input 1, Input 2, or a mix of both
• 19-inch rack mount size, 1U height, with robust metal chassis
• LED indicators for power, input signal/clip, and output signal

Specifications

• Input connectors: 2 x XLR (balanced)
• Output connectors: 6 x XLR (balanced)
• Input impedance: 20 kOhm (balanced)
• Output impedance: 100 Ohm (balanced)
• Frequency response: 20 Hz - 20 kHz (+/- 0.5 dB)
• Total harmonic distortion (THD+N): < 0.01% @ 1 kHz
• Signal-to-noise ratio (SNR): > 90 dB
• Crosstalk: < -70 dB @ 1 kHz
• Power supply: AC 230V, 50Hz (IEC C14 connector)

Tips

For best results, use balanced XLR cables throughout the signal chain to minimize noise and interference. When setting up zones, label each output clearly to simplify troubleshooting and adjustments. Ensure proper ventilation in the rack to maintain optimal operating temperature.
